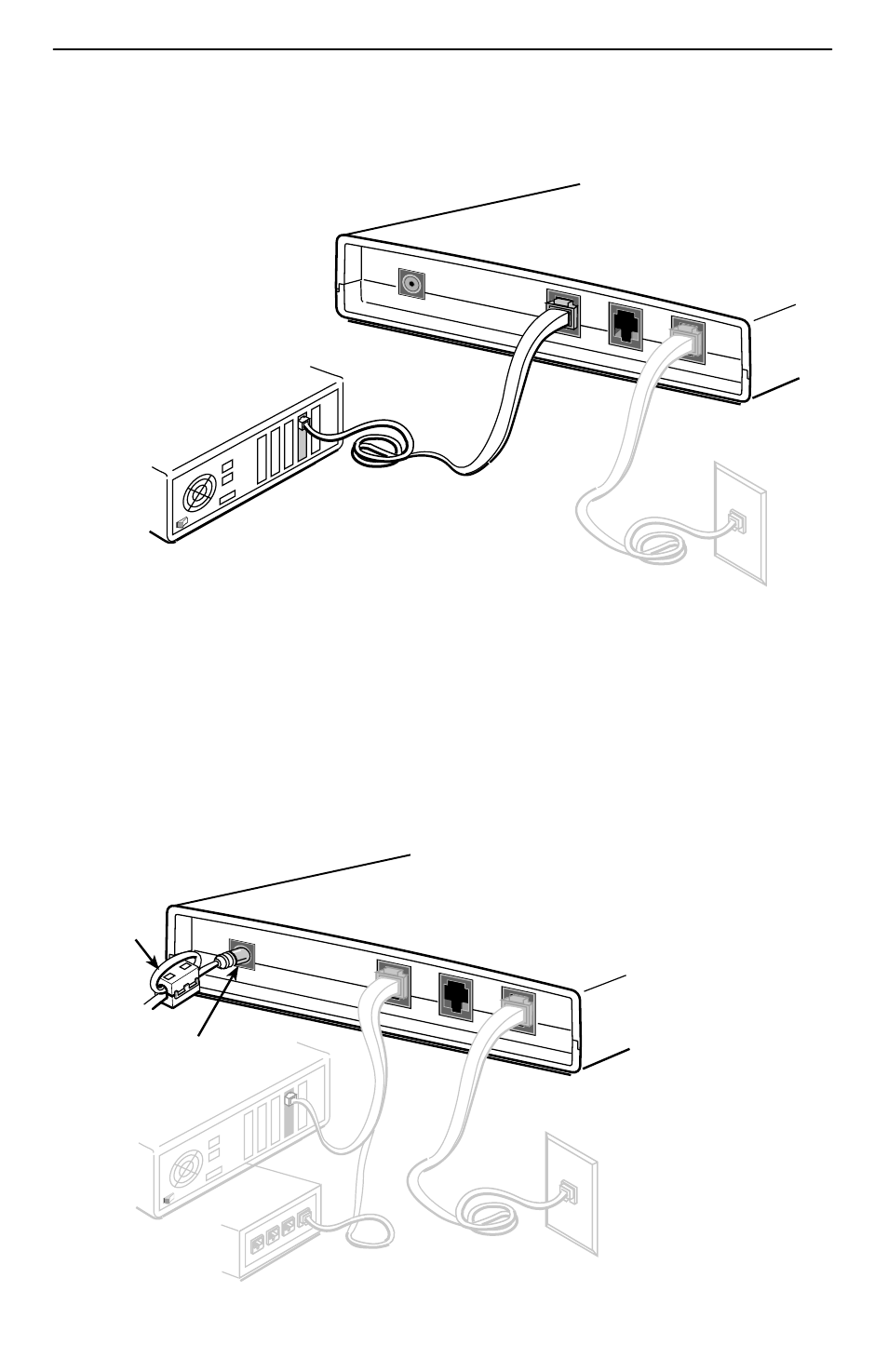

Use an Ethernet crossover cable and connect the other end to a PC with an
Ethernet Network Interface Card (NIC) installed.
PHONE
POWER
ETHERNET
LINE
MVL Modem
98-15907
Ethernet
Line
PC with Ethernet
Network Interface
Card Ethernet
Cable
For MVL modem cable pin assignments, refer to Cables & Connectors on page 10.
5. Insert the supplied power cord’s round end into the jack labeled POWER. Attach
the supplied ferrite choke as closely as possible to the MVL modem. Pass the
cable through the ferrite choke twice, creating a loop as shown. Close the two
halves around the ferrite choke and snap the ferrite choke shut. Plug the
transformer into an ac outlet.
PHONE
POWER
ETHERNET
LINE
MVL Modem
00-16352-01
Power
Jack
or
Ferrite
Choke
