Product-Related Documents
To install a phone filter, refer to the appropriate document:
Document Number Document Title
6035-A2-GN11 Hotwire 6035 MVL Phone Filter Installation Instructions
6040-A2-GN11 Hotwire 6040 MVL Wall Jack Phone Filter Installation
Instructions
Contact your sales or service representative to order additional product documentation.
Paradyne documents are available on the World Wide Web at www.paradyne.com.
Select Library
→
Technical Manual
→
Hotwire DSL & MVL Systems.
Installing the Hotwire 6310 MVL Modem
Place the Hotwire 6310 MVL Modem on a flat surface with clearance for the rear
connectors.
"
Procedure
1. If a telephone is installed, unplug the telephone line from the RJ11 wall jack.

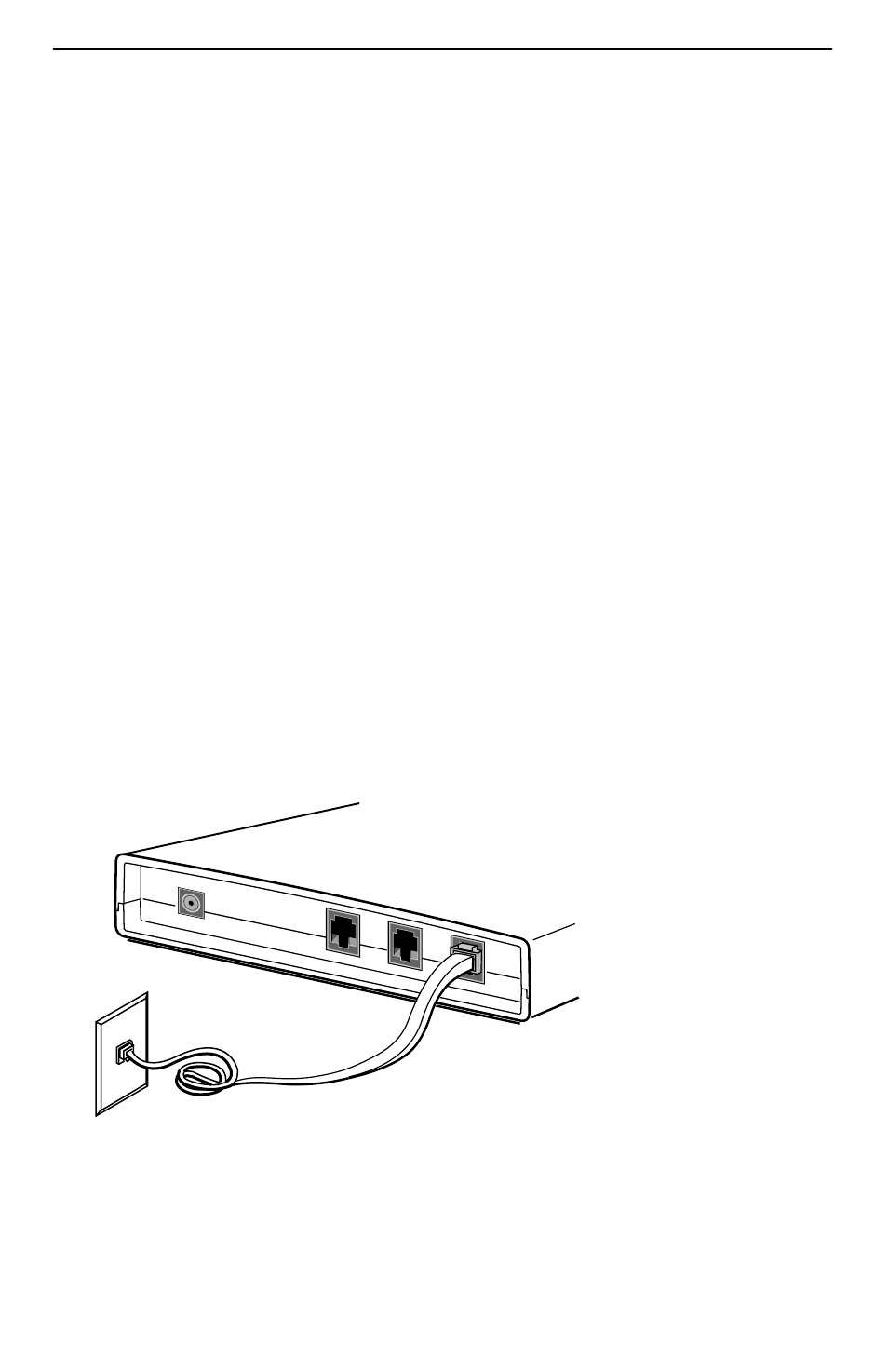

2. Use the supplied RJ11 6-pin interface cable for the MVL LINE connection. Insert
one end of the cable into the jack labeled LINE. Insert the other end of the cable
into the RJ11 wall jack.
PHONE
98-15895
RJ11
Wall Jack
POWER
ETHERNET
LINE
MVL Modem
