Paradyne 6310 MVLT - Manual (Page 2)

2
Hotwire MVL System

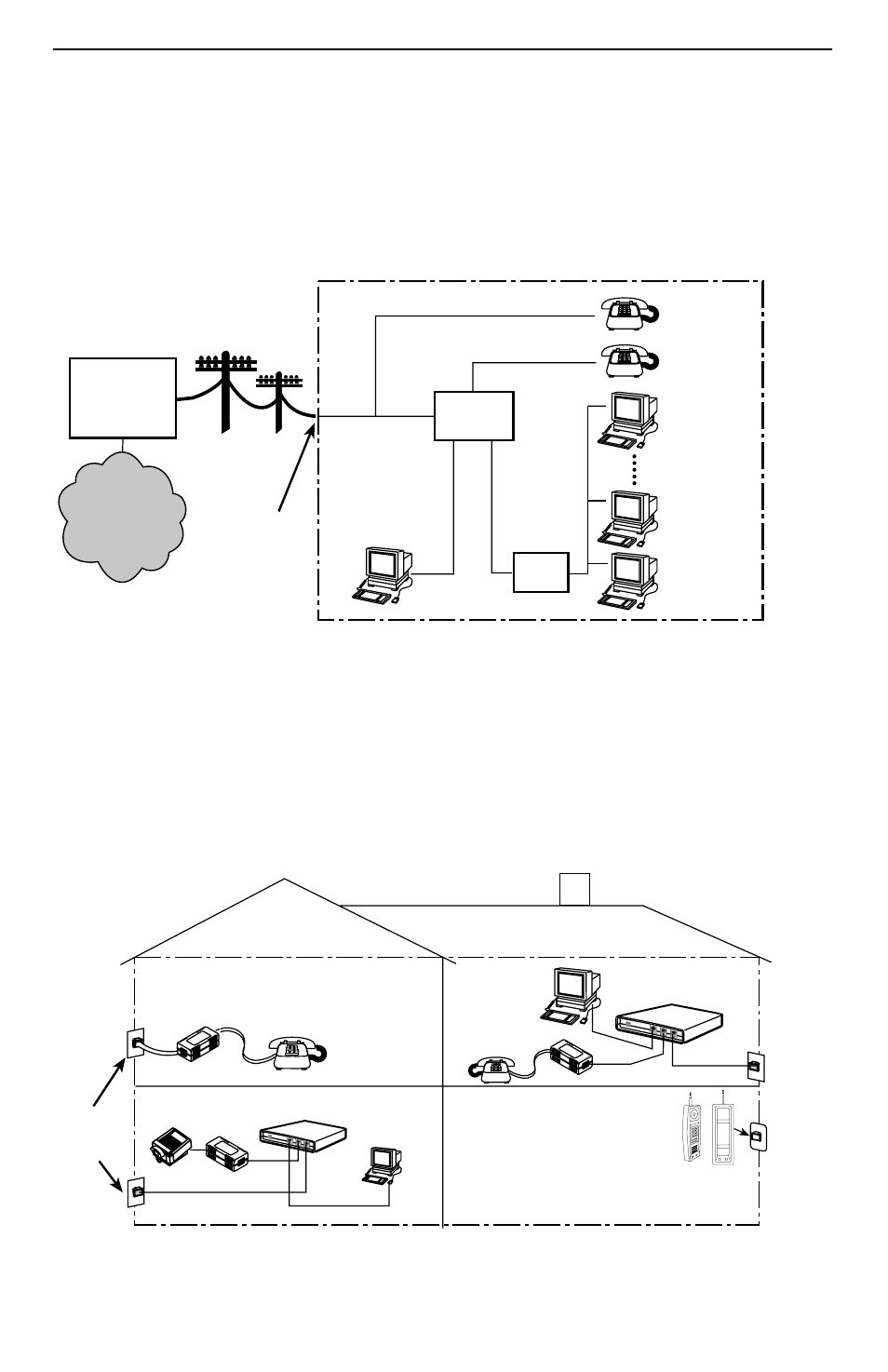

Copper pairs run from the central office (CO) to the customer premises (CP) to create
the local loop. The local loop terminates on the customer premises at the demarcation
point.
98-15930a-02
MVL
Modem
Customer Premises (CP)
MVL/POTS
Ethernet
Crossover
Cable
Ethernet
Cable
or
Central
Office
(CO)
Local Loop
Hub
MVL – Multiple Virtual Lines
POTS – Plain Old Telephone Service
End-user
Systems
(up to 32)
Network
Service
Provider
(NSP)
Demarcation
Point
MVL Access with a Hotwire MVL POTS Filter
When a Hotwire 6035 or 6040 MVL POTS Filter is used, one filter is installed for each
telephone on the same phone line as MVL.
99-16580
RJ11
Wall Jack
RJ11
Wall
Jack
MVL Modem
Customer
Premises (CP)
PHONE
POWER
ETHERNE T LINE
PHONE
POWER
ETHERNE T LINE
FAX
MVL Modem
6035
Phone Filter
POTS Filter
6040
Wall Jack
Phone
Filter
