Cutting the Top and Bottom
Rail
and Catch Frame
Cutting the Top Rail of the Sure View
Screen is an easy process.
1. Using the “Length to be cut” dimension
calculated on Page 7, carefully measure the Top
Rail on the end opposite the end cap. Mark on
all sides to ensure an even cut.
2. Wearing safety glasses, cut straight through the
Top Rail using either a chop saw or a
hacksaw with a bi-metal blade. (A)
Choosing and Cutting the Bottom Rail
Before cutting, it is important to select the
correct Bottom Rail for installation. The Sure View
Screen package comes with two Bottom Rails to
accommodate both flat and angled door sills. Please
refer to (B) to determine the correct Bottom Rail.
1. Using the same “Length to be cut” dimension
used for the Top Rail, measure and mark the
appropriate Bottom Rail on all sides to ensure an
even cut. The Bottom Rail can be cut on
either side.
2. Cut straight through the Bottom Rail. (C)
Cutting the Catch Frame
Either end of the Catch Frame can be cut.
1. Using the Screen Housing and Catch Frame
“Length to be Cut” dimension calculated on
Page 7, carefully measure and mark the Catch
Frame on all sides to ensure an even cut.
2. Cut straight through the Catch Frame. (D)
NOTE: It is important to wear safety glasses at all
times when cutting components of the Sure View
Screen. After cutting any part of the Sure View
Screen use a file to remove any burrs from the cut
surfaces.
8
D Catch Frame
Length
to be cut
C
B

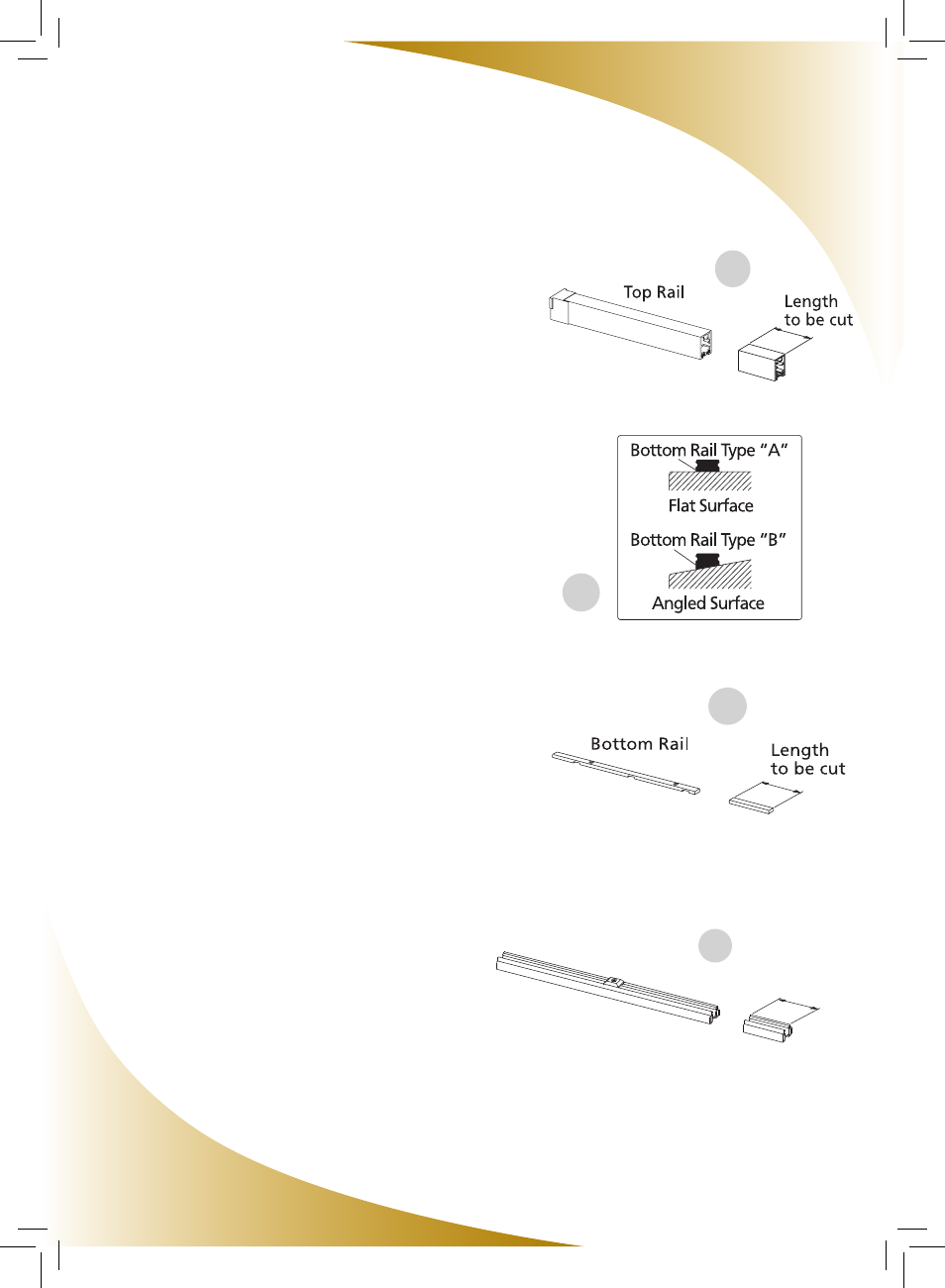

Choose the correct Bottom Rail for either
