Installing the
Screen Housing Assembly
1. Locate the “L” shaped edge of the Mounting
Bracket. (A) The Mounting Bracket will be
positioned with this edge closest to the door.
2. Remove the adhesive strip on the back of the
Mounting Bracket and position on the mounting
surface. (B)
3. Using a level, adjust the Mounting Bracket to
ensure that it is positioned plumb.
4. Attach the Mounting Bracket to the door frame
using the 5/8” (16 mm) Pan
Head Screws provided.
Securing the Mounting Bracket
The Mounting Bracket of the Sure View Screen is installed on the left inside
surface of the door frame. The ideal minimum dimension of this surface is
1 5/8” (42 mm). This surface must be perfectly flat and at a right angle (90º) to
the door.
If the mounting surface is greater than 1 5/8” (42 mm), the Mounting Bracket
can be positioned anywhere on this surface. We recommend positioning the
Mounting Bracket flush with the edge of the door frame (the furthest point away
from the door.)
10

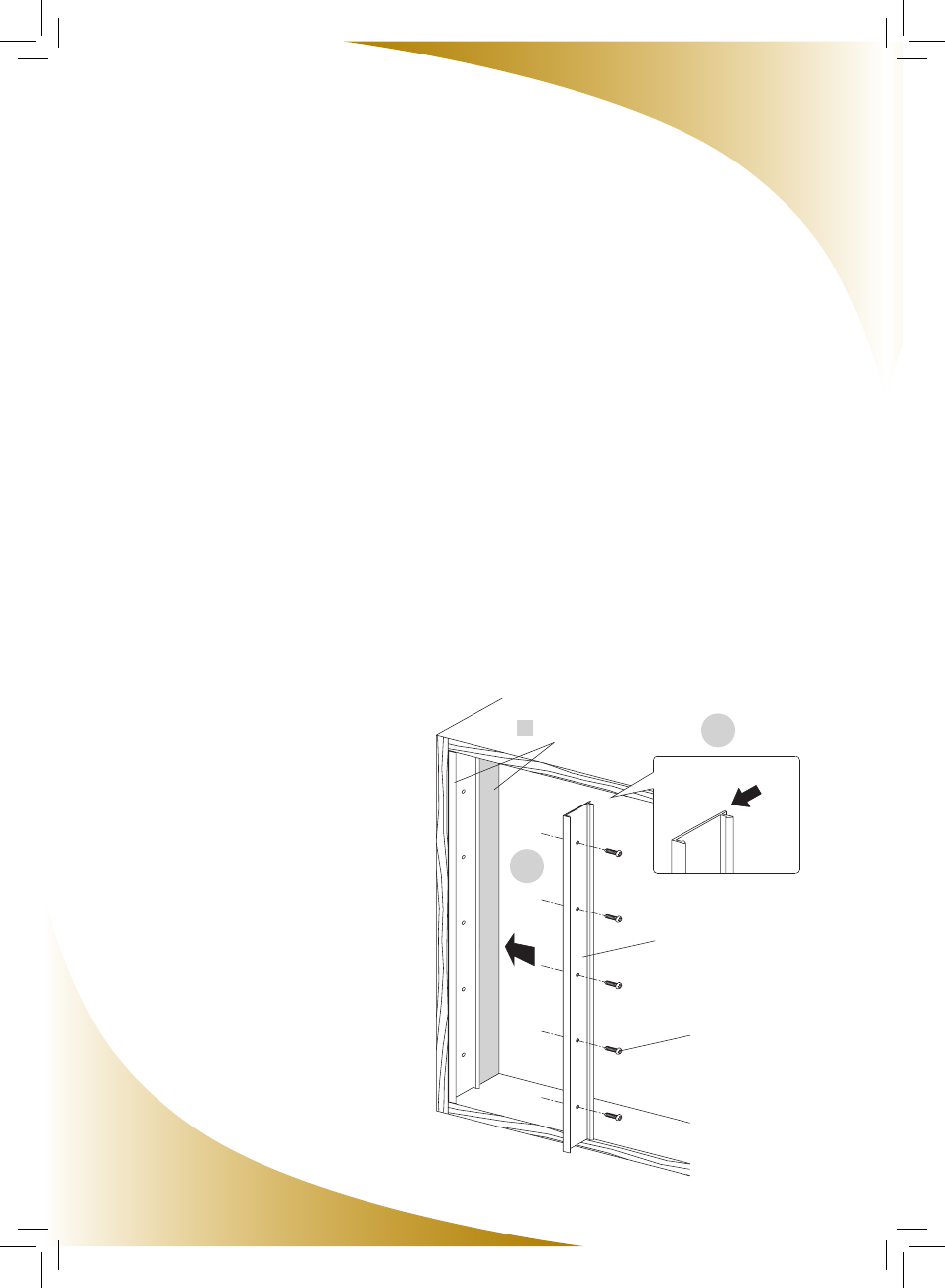

Mounting Bracket
5/8” (16 mm)
Screw
“L” Shaped Edge
Mounting Surface A
B
