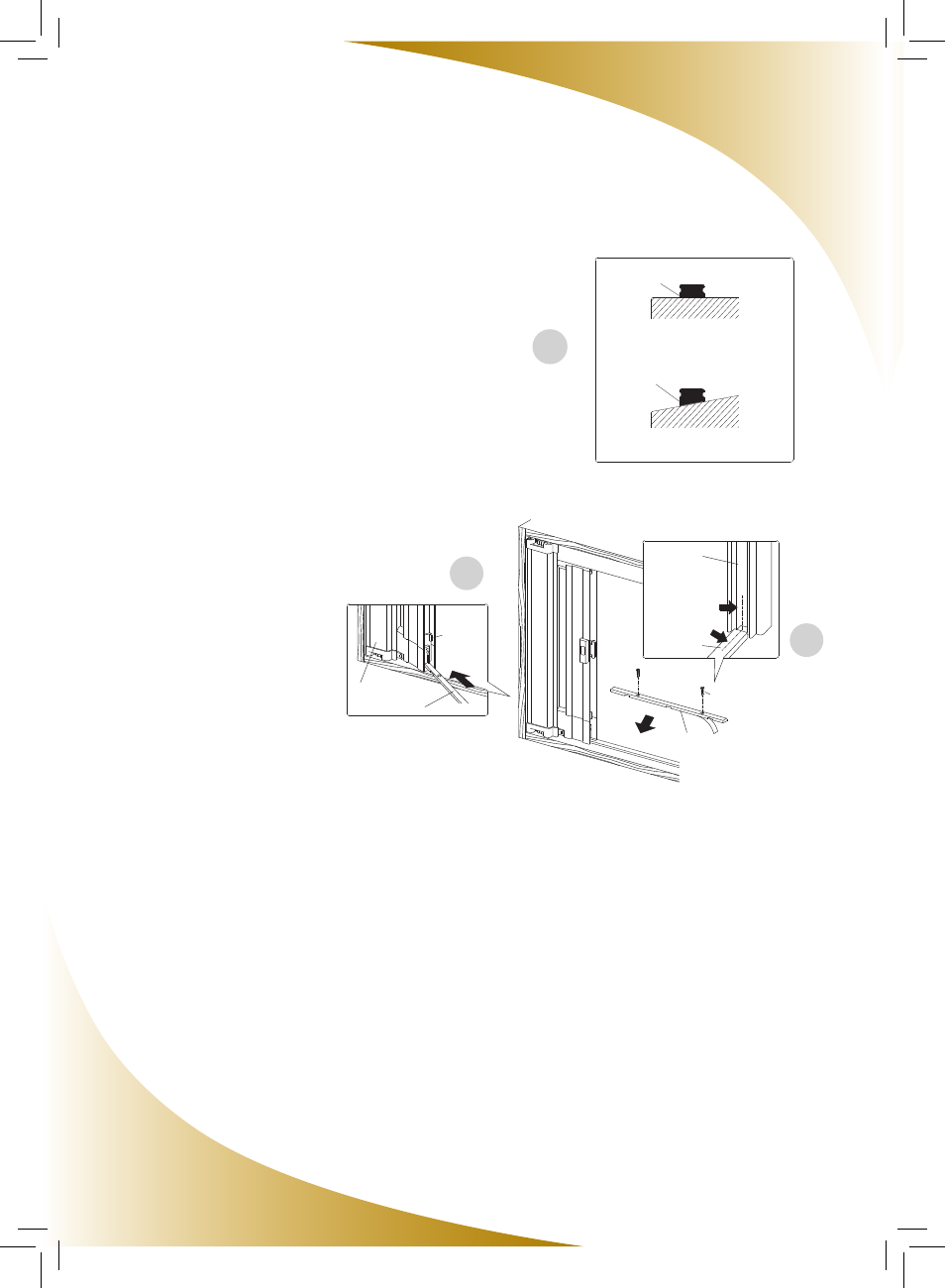

Installing the
Bottom Rail
If the Bottom Rail did not require cutting, it
is important to select the correct Bottom Rail
for installation. The Sure View Screen
package comes with two Bottom Rails to
accommodate both flat and angled door sill.
Please refer to (A) to determine the correct
Bottom Rail.
1. Remove the backing on the adhesive strip
on the Bottom Rail.
2. While slightly lifting the Sliding Bar,
insert one end of the Bottom Rail
into the groove at the bottom of
the Sliding Bar Bottom Cap. (B)
14
3. Position the other end so that
the center of the Catch Frame
aligns with the center of
the Bottom Rail. (C) When
aligned, press the Bottom Rail
firmly onto the door sill.
4. Fasten the Bottom Rail to the
door sill using the 5/8” (16 mm)
Self-Tapping Screws provided.
It is not necessary to pre-drill the
surface below.
NOTE: If using the Angled Bottom Rail, ensure
that it is oriented so that the top of the Bottom Rail
is flat and level when placed on the door sill.
Bottom
Rail
Bottom
Rail
Sliding
Bar
Screen Housing
Bottom Rail
Align The
Centre
Catch
Frame
5/8” (16 mm)
Self Tapping
Screw
Bottom Rail Type “B”
Angled Surface
Bottom Rail Type “A”
Flat Surface
A
B
C
