Controls and displays 03
28
En

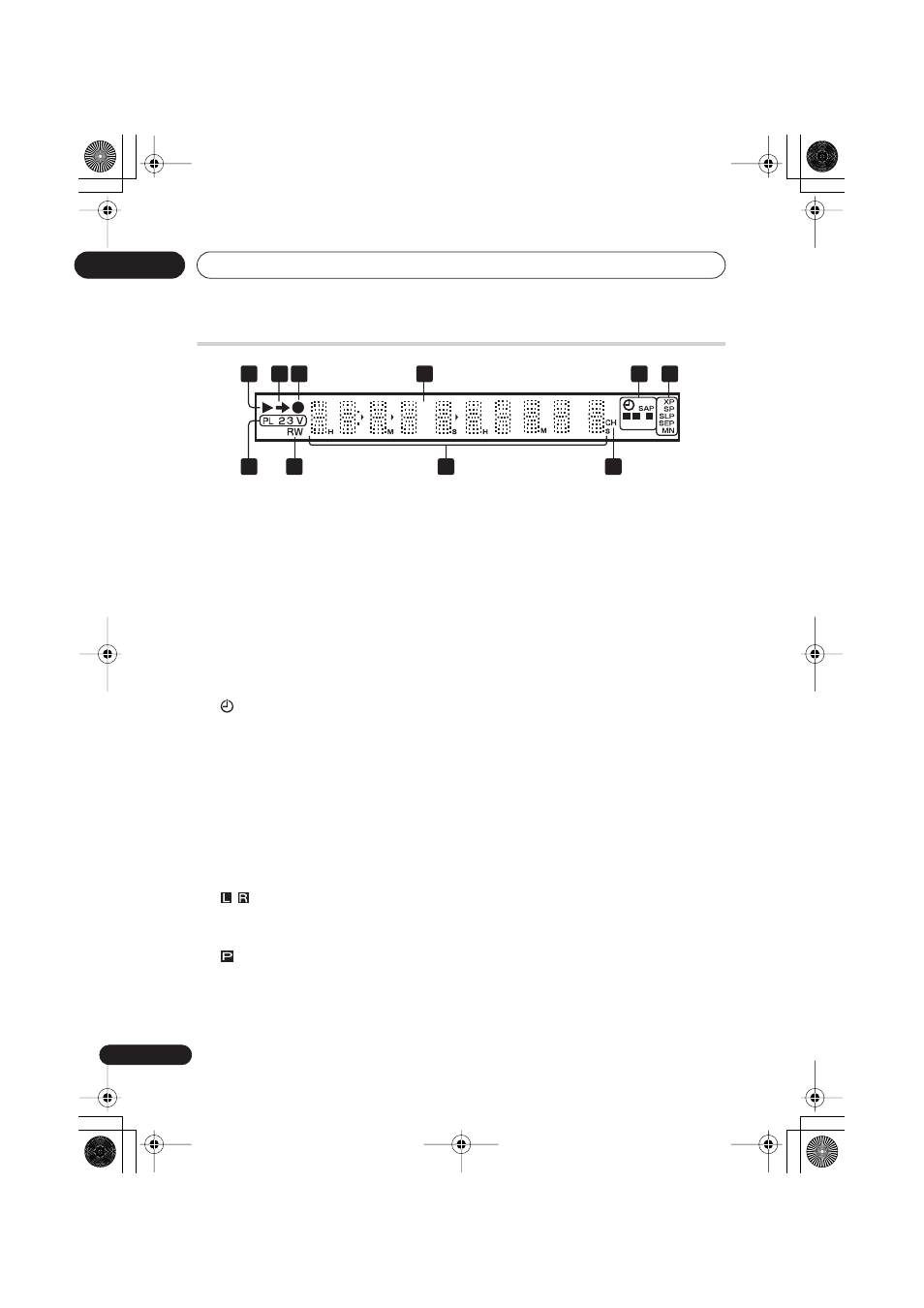

Display
1
Lights during playback; blinks when
playback is paused.
2
Lights when copying.
3 ì
Lights during recording; blinks when
recording is paused.
4 PM
Lights to indicate PM (after midday) for the
clock display.
5 (page 38)
Lights when a timer recording has been
set. (Indicator blinks if the timer has
been set to DVD but there isn’t a
recordable disc loaded, or the timer has
been set to HDD but the HDD is not
recordable.)
SAP
Lights when the currently selected TV
channel has a Second Audio Program
channel.
(page 111)
Indicates which channels are recorded
when dual mono is selected.
(page 111)
Lights when the component video output
is set to progressive scan.
6 Recording quality indicators (page 37)
XP
Lights when the recording mode is set to
XP (best quality).
SP
Lights when the recording mode is set to
SP (standard play).
LP / SLP
Lights when the recording mode is set to
LP (long play) or SLP (super-long play).
EP / SEP
Lights when the recording mode is set to
EP (extended play) or SEP (super-
extended play).
MN
Lights when the recording mode is set to
MN (manual recording level) mode.
7 CH (page 36)
Channel indicator for the built-in TV tuner.
8 Character display
9 R / RW
Lights when a recordable DVD-R or DVD-RW
disc is loaded.
10 PL (page 66)
Lights when a VR mode disc is loaded
and the recorder is in Play List mode.
PM
P R L
9 7 8
2 4 3 5 6 1
10
