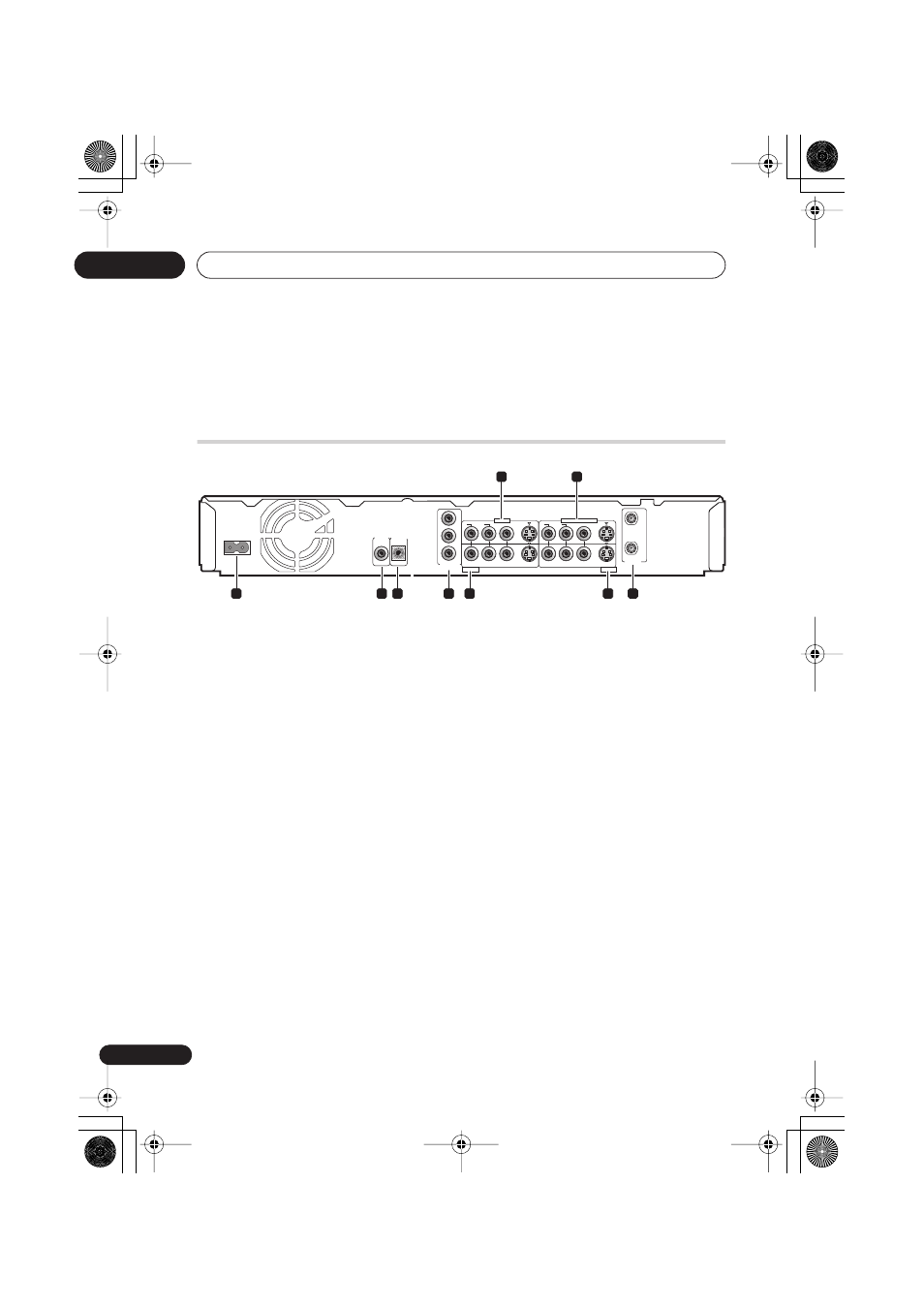

Rear panel connections
1
OUTPUT 1
Stereo analog audio, S-video and composite
video output for connection to a TV, monitor,
AV receiver, etc.
2
INPUT 1/AUTO START REC
Stereo analog audio, S-video and composite
video input for connection to a satellite
receiver, set top box, etc.
3
AC IN
Connect to a power outlet using the supplied
power cable after making all other
connections.
4
COAXIAL DIGITAL OUT
A digital audio output for connecting to an
AV amp/receiver, Dolby Digital/DTS decoder
or other equipment with coaxial digital input.
5
CONTROL IN
Use to control this recorder from the remote
sensor of another Pioneer component with a
CONTROL OUT
terminal and bearing the
Pioneer
mark. Connect the
CONTROL
OUT
of the other component to the
CONTROL IN
of this recorder using a mini-
plug cord.
6
COMPONENT VIDEO OUT
A high-quality video output for connecting to
a TV or monitor with a component video
input.
7
OUTPUT 2
Stereo analog audio, S-video and composite
video output for connection to a TV, monitor,
AV receiver, etc.
8
INPUT 3
Stereo analog audio, S-video and composite
video input for connection to a satellite
receiver, set top box, etc.
9
VHF/UHF IN/OUT
Connect your TV antenna to the
VHF/UHF
IN (RF IN)
jack. The signal is passed
through to the
VHF/UHF OUT
jack for
connection to your TV.
