Connecting up 02
20
En

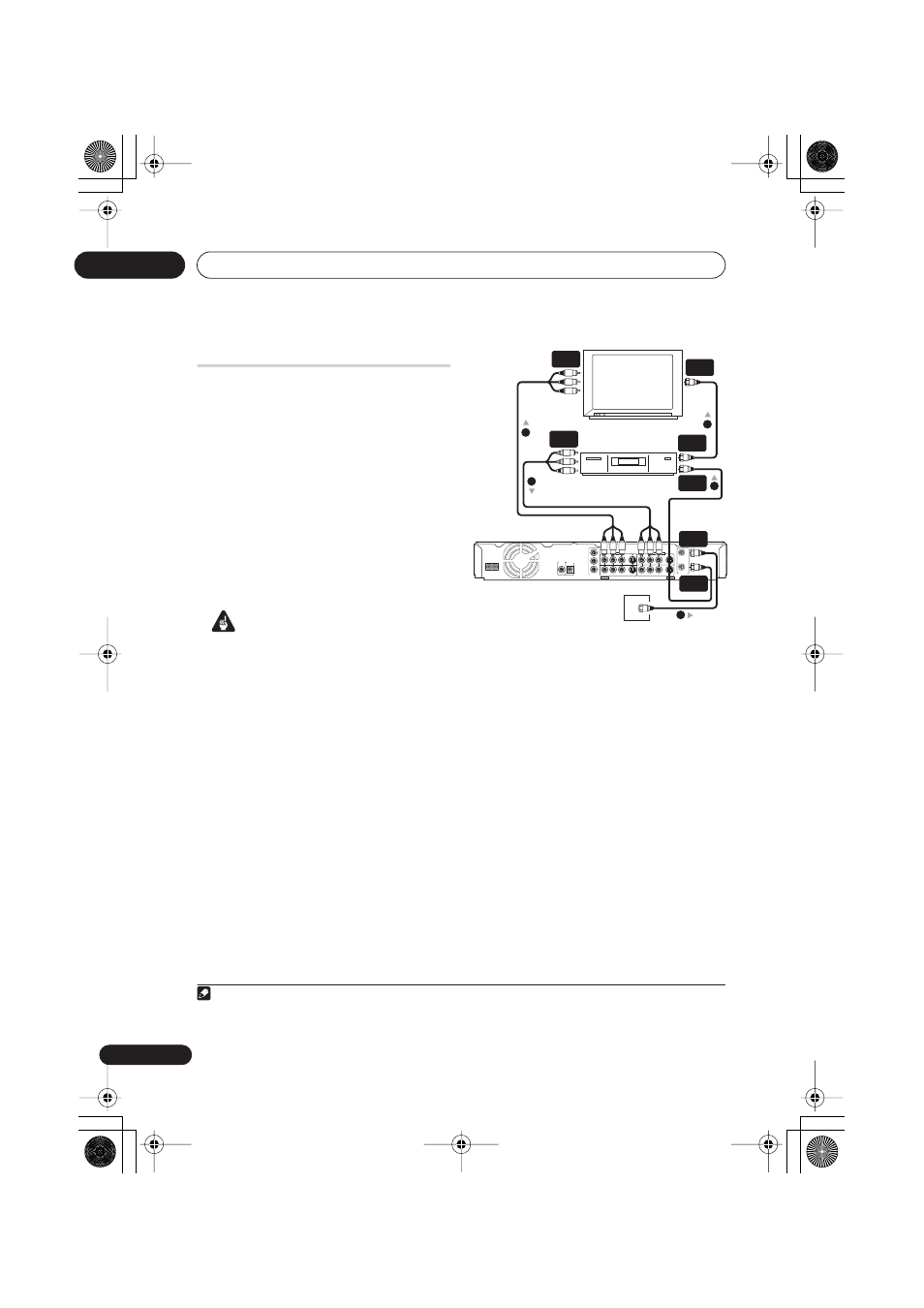

Connecting to a cable box or
satellite receiver (1)
If you are using a cable box or satellite
receiver with only a few scrambled channels,
follow the setup on this page 1 . If many or all
the channels are scrambled, we recommend
using the setup on the following page.
Using the setup on this page you can:
• Record unscrambled channels by
selecting them on this recorder.
• Record scrambled channels by selecting
them on the cable box/satellite receiver.
• Watch one channel while recording
another.
Important
• Do not connect this recorder ‘through’
your VCR, satellite receiver or cable box.
Always connect each component
directly to your TV or AV amp/receiver. 1 Connect RF antenna cables as shown.
This enables you to watch and record TV
channels.
2 Connect the AUDIO and VIDEO
OUTPUT jacks (1 or 2) on this recorder to
a set of audio/video inputs on your TV
using a set of A/V cables (as supplied).
This enables you to watch the output from
this recorder.
3 Connect the audio/video output of
your cable box/satellite receiver to the
INPUT 1 jacks on this recorder using a set
of A/V cables.
This enables you to record scrambled TV
channels.
Note
1 The diagram shows standard video connections, but you can alternatively use the S-video or component video
connections if they’re available.
Cable box/
Satellite receiver
AC IN
COAXIAL IN S-VIDEO VIDEO
L R
COMPONENT VIDEO OUT
Y
P B
P R
VHF/UHF
IN
OUT
OUTPUT 2
OUTPUT 1
S-VIDEO VIDEO AUDIO
L R
INPUT 3
INPUT 1 / AUTO START REC
DIGITAL OUT CONTROL
TV
Antenna/cable TV
wall outlet
1
1
2
3
1
VHF/UHF
OUT
VHF/UHF
IN (RF IN)
VHF/UHF
IN
VHF/UHF
IN
VHF/UHF
OUT
A/V
IN 1
A/V
OUT
