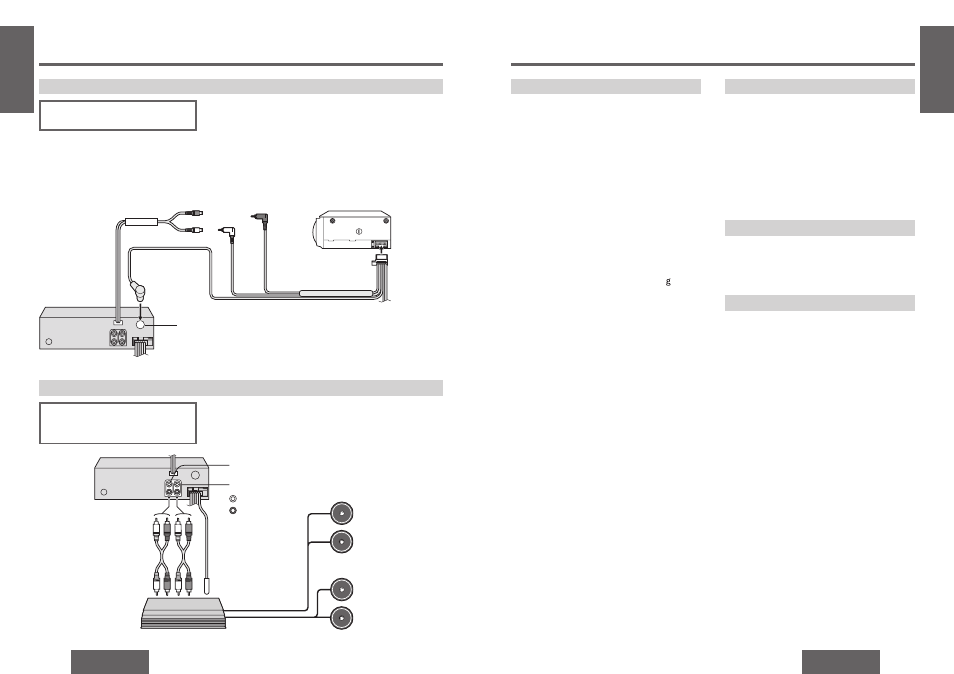

CD.C-IN
Electrical Connections
(continued)
Upgrading the System
Example combination
≥ CD changer (CX-DP880U, option)
CD changer input cord R (red)
CD changer control
connector
RCA cord (R)
RCA cord (L)
DIN cord
E
N
G
L
I
S
H
33
E
N
G
L
I
S
H
34
L (white)
Note:
≥ You cannot connect 2 CD changers using the dual
CD changer selector (CA-CD55U, option).
≥ For wiring, carefully read the operating
instructions for the devices connected.
CD changer
(CX-DP880U, option)
Extension cord
(supplied with CX-DP880U)
Speaker System Connection
Example combination
≥ Stereo power amplifi er (option)
≥ Front speaker, rear speaker (option)
Stereo power amplifi er
(option)
(bridged connection) Rear speaker (option)
RCA cord
(option) Front speaker (option)
External amplifi er
control power lead
(Blue/white stripe)
Pre-amp output connector (rear)
Pre-amp output connector (front)
L (white)
R (red)
Note:
≥ For wiring, carefully read the operating
instructions for the devices connected.
FM Stereo Radio
Frequency range: 87.9 MHz–107.9 MHz
Usable sensitivity: 10.2 dBf. (0.9 ¨V, 75 ≠)
50 dB quieting sensitivity: 15.2 dBf. (1.6 ¨V, 75 ≠)
Frequency response: 30 Hz–15 kHz ( d3 dB)
Alternate channel selectivity: 75 dB
Stereo separation:
35 dB (1 kHz)
Image response ratio: 75 dB
IF response ratio: 100 dB
Signal to noise ratio: 62 dB
AM Radio
Frequency range: 530 kHz–1 710 kHz
Usable sensitivity: 27 dB/ ¨V
(11 V, S/N 20 dB)
CD Player
Sampling frequency: 8 times oversampling
DA converter: 4 DAC system
Pick-up type: Astigma 3-beam
Light source: Semiconductor laser
Wave length: 780 nm
Frequency response: 20 Hz–20 kHz ( d1 dB)
Signal to noise ratio: 96 dB
Total harmonic distortion: 0.01 % (1 kHz)
Wow and fl utter:
Below measurable limits
Channel separation: 75 dB
General
Power supply: DC 12 V (11 V–16 V),
test voltage 14.4 V,
negative ground
Current consumption: Less than 2.2 A
(CD mode;
0.5 W 4-speaker)
Maximum power output: 50 W k4 (at 1 kHz)
volume control maximum
Tone adjustment range: Bass: d12 dB at 100 Hz
Treble: d12 dB at 10 kHz
Speaker impedance: 4–8 ≠
Pre-amp output voltage: 2.5 V
(CD mode; 1 kHz, 0 dB)
Pre-amp output impedance: 200 ≠
Dimensions (W kHkD): 7qk1 15 /
16
qk6 1 /
8
q
(178 k50k155 mm)
Weight: 3 lbs. 1 oz (1.4 k )
Above specifi cations comply with EIA standards.
Note:
≥ Specifi cations and design are subject to modifi cation without notice due to improvements.
Specifi cations
Remove the vinyl cap.
