Using DVI Input
This Plasma Display is equipped with a DVI terminal (INPUT1)
which accept digital video.
Before starting the menu, press INPUT 1 on the remote control
unit to select INPUT1.
NOTE
• See the section “Computer compatibility chart” (page 37)
regarding supported computer signals.

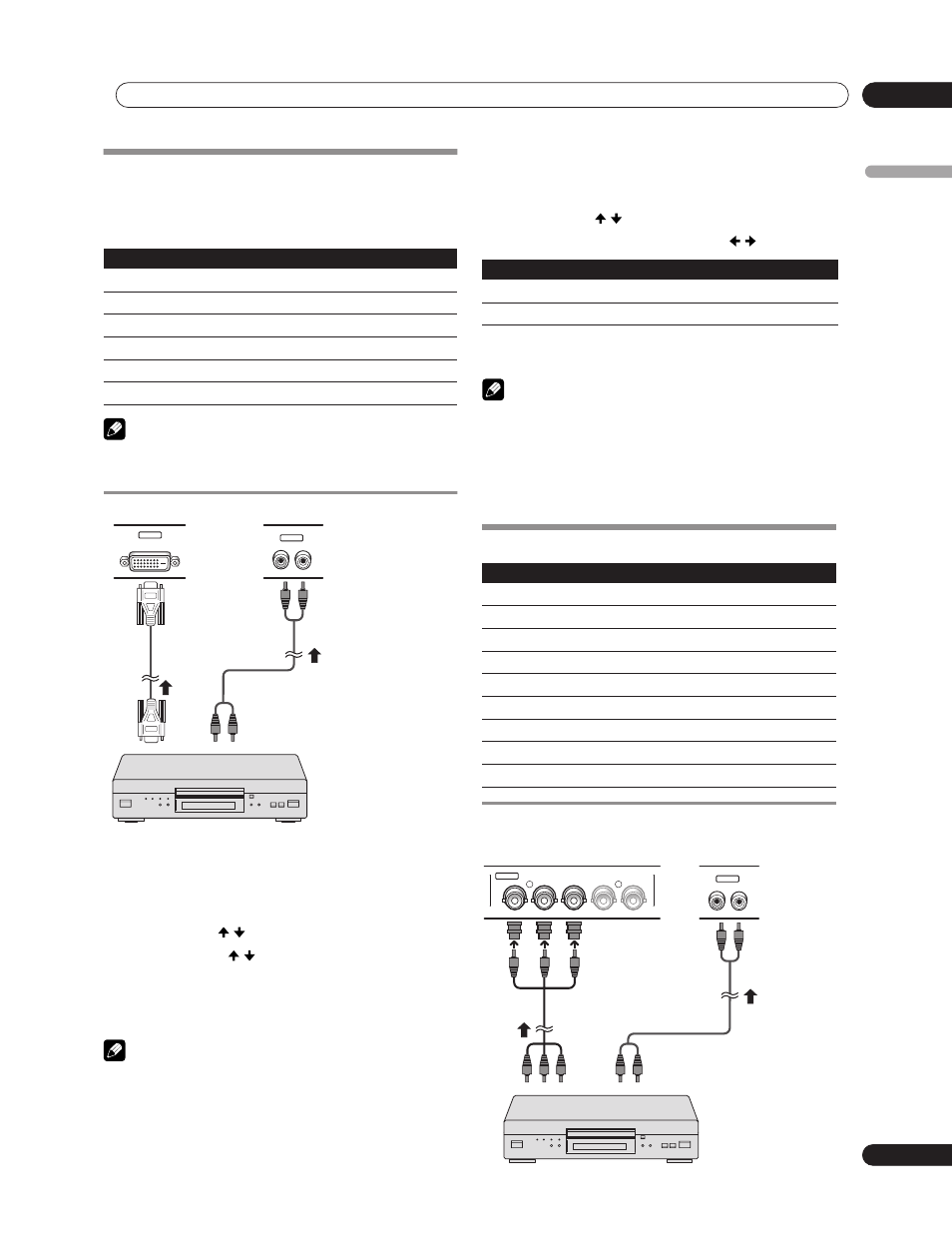

Connecting DVI equipment
To activate the DVI terminal:
When you use the INPUT1 terminal, use the following
procedure to activate the terminal.
1 Press HOME MENU.
2 Select “Setup” ( / then ENTER (ENTER/DISP.)).
3 Select “INPUT1” ( / then ENTER (ENTER/DISP.)).
4 Set the “AV” setting.
5 Press HOME MENU, INPUT 1 to INPUT 6 (INPUT) to exit
the menu.
NOTE
• See the section “Watching an image from a personal
computer” (page 36) regarding connections to a computer.
To specify the type of digital video signals:
1 Repeat steps 1 to 3 rovided for “ To activate the DVI
terminal ”.
2 Select “Video” ( / ).
3 Select the type of digital video signals ( / ).
4 Press HOME MENU, INPUT 1 to INPUT 6 (INPUT) to exit
the menu.
NOTE
• This selection is disabled when “Signal Type” is set to “PC”.
For details on setting the signal type, see the section “ To
activate the DVI terminal”.
• If the images do not come in crearly, specify another digital
video signal type.
• For the digital video signal types to be specified, check the
operation manual that came with the connected equipment.
Watching a DVD image
Connecting a DVD player
Use the INPUT4, 5 or 6 terminal when connecting to a DVD
player and other audiovisual equipment.
Input signal correlation table
1920*1080i@50 Hz
720*576p@50 Hz
1280*720p@50 Hz
1920*[email protected]/60 Hz
720*[email protected]/60 Hz
1280*[email protected]/60 Hz
INPUT1
R L DVI-D
INPUT1
AUDIO cable
(commercially available)
DVI-D cable
(commercially
available)
DVI equipment
Item Description
RGB (16 - 235) Didital RGB signals (16 to 235) locked
RGB (0 - 255) Didital RGB signals (0 to 255) locked
Input signal correlation table
1920*1080p@24 Hz
1920*1080i@50 Hz
1920*[email protected]/60 Hz
1280*720p@50 Hz
1280*[email protected]/60 Hz
720*576p@50 Hz
720*576i@50 Hz
720*[email protected]/60 Hz
720*[email protected]/60 Hz
INPUT4
R L
INPUT4 COMPONENT VIDEO / ANAROG RGB
Pb/Cb Y
G
Pr/Cr
VD HD B R
AUDIO cable
(commercially available)
Component cable
(commercially available)
DVD player
BNC/Pin
conversion
adaptor
