Part Names 05
English

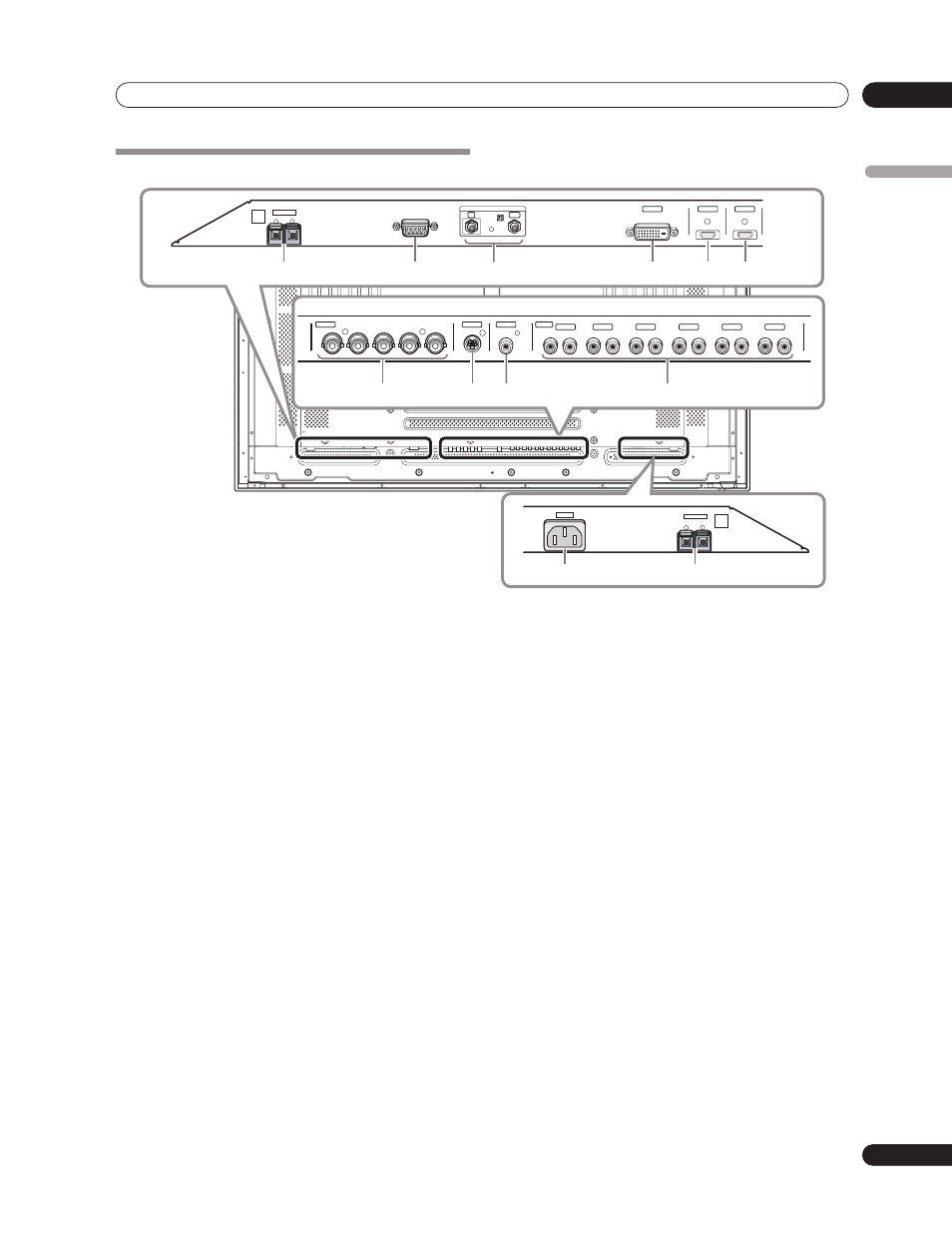

Connection panel
1 SPEAKER (R) terminals
For connection of an external right speaker.
Connect a speaker that has an impedance of 8
Ω
to16
Ω
.
2 Terminal for Service Adjustments (used
for factory setup)
Never connect any component to these connectors
without first consulting your Pioneer installation
technician.
These connectors are used for Plasma Display setup
adjustments.
3 CONTROL IN/OUT terminals
4 INPUT1 terminal (DVI-D)
5 INPUT2 terminal (HDMI)
6 INPUT3 terminal (HDMI)
7 INPUT4 terminals
(COMPONENT VIDEO: Y, Pb/Cb, Pr/Cr,
ANALOG RGB : G, B, R ,HD, VD)
8 INPUT5 terminal (S-VIDEO)
9 INPUT6 terminal (VIDEO)
10 AUDIO INPUT terminals
Audio input connectors corresponding to INPUT1 to
INPUT6 video input connectors.
11 AC IN
Use to connect the supplied power cord to an AC outlet.
12 SPEAKER (L) terminals
For connection of an external left speaker. Connect a
speaker that has an impedance of 8
Ω
to 16
Ω
.
AC IN L SPEAKER
8
Ω ~16 Ω
+ –
R SPEAKER
8
Ω ~16 Ω
+ –
SERVICE ONLY IN OUT
CONTROL
HDMI
INPUT2
HDMI
INPUT3
DVI-D
INPUT1
INPUT4 COMPONENT VIDEO / ANAROG RGB
Pb/Cb Y
G
Pr/Cr
VD HD
S-VIDEO
INPUT5 INPUT1 INPUT2 INPUT3 INPUT4 INPUT5 INPUT6 VIDEO R L R L R L R L R L R L
INPUT6 AUDIO
B R
1 2 4 5 6
12 11
3
7 8 9 10
