Preparation 06
English

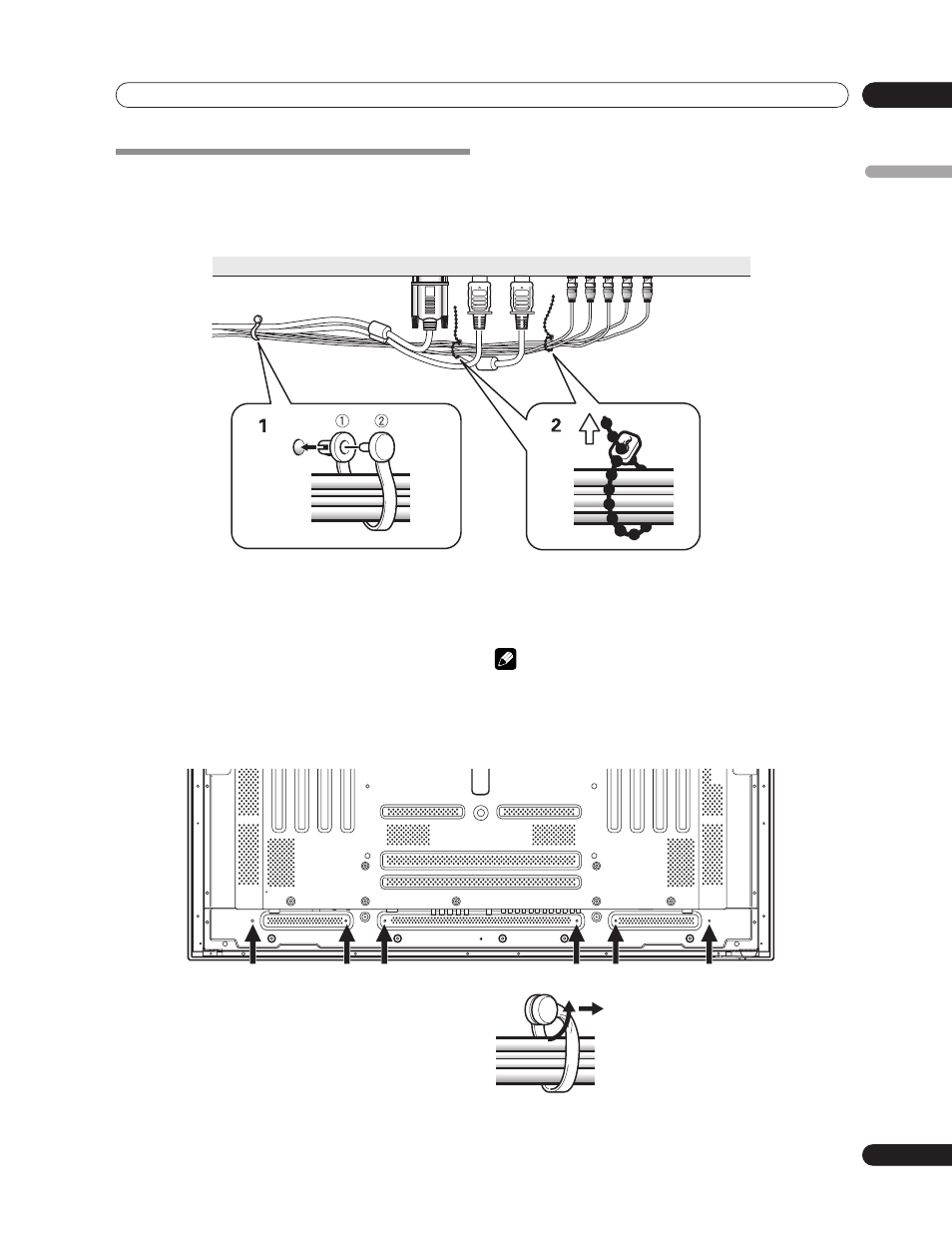

How to route cables
Speed clamps and bead bands are included with this unit for
bunching cables together. Once components are connected,
follow the following steps to route cables.
1. Organize cables together using the
provided speed clamps.
Insert ➀ into an appropriate hole on the rear of the unit,
then snap ➁ into the back of ➀ to fix the clamp.
Speed clamps are designed to be difficult to undo once in
place. Please attach carefully.
2. Bunch separated cables together and
secure them with the provided bead bands.
Do not allow excessive stress to be placed on the ends of
cables.
NOTE
• Cables can be routed to the right or left.
To attach the speed clamps to the main unit
Connect the speed clamps using the 6 holes marked with “o”
below, depending on the situation.
* As viewed from the rear of the display.
To remove speed clamps
Using pliers, twist the clamp 90° and pull it outward.
In some cases the clamp may have deteriorated over time and
may get damaged when removed.
* As viewed from the rear of the display.
