Connection panel, Part names 05, 1 speaker (r) terminals – Pioneer PDP-5000EX User Manual

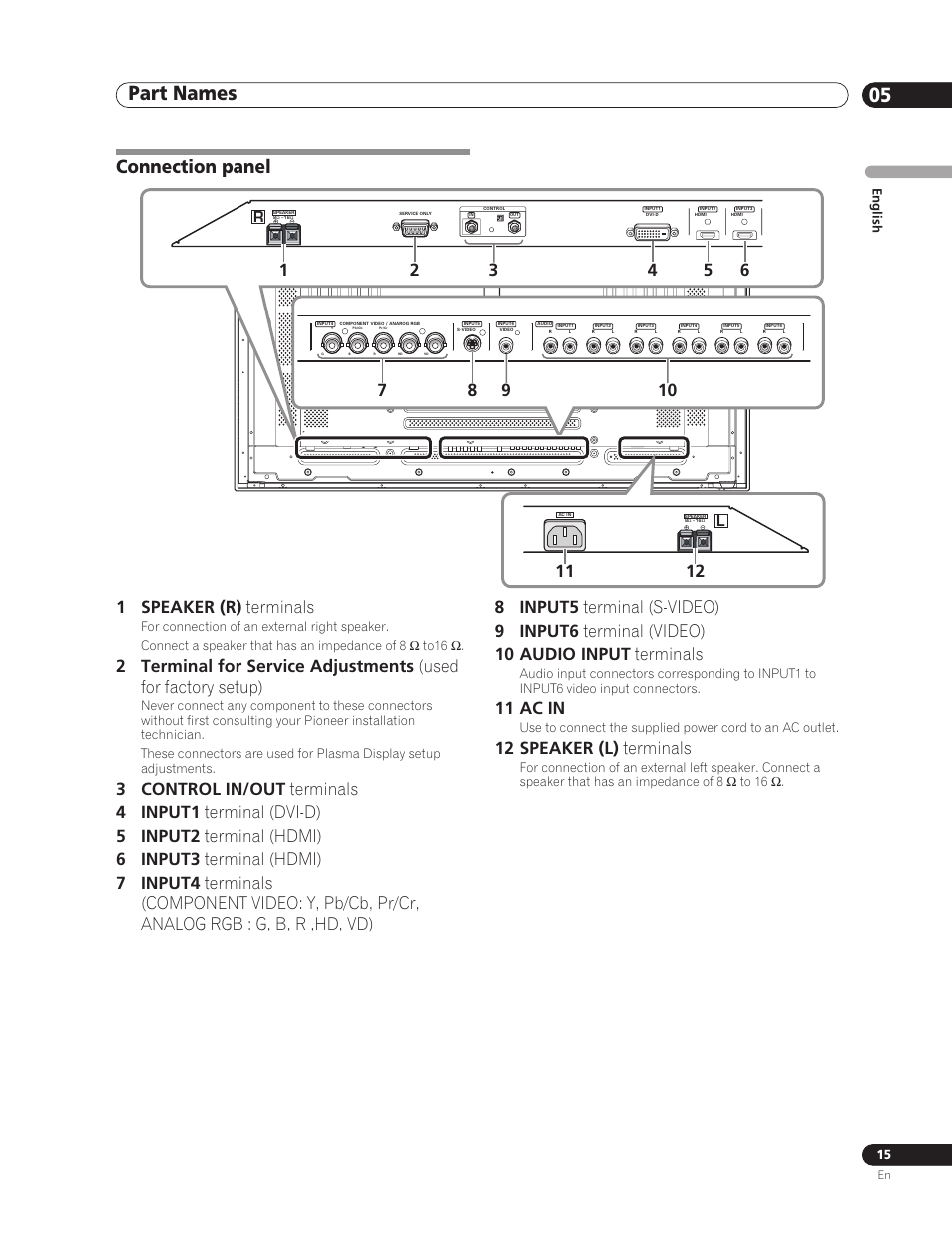

Page 15: 11 ac in, 12 speaker (l) terminals, English
