THE PERFECT FIT

FAST M-10 Rear Suspension Adjustments

Static Sag and Ride Height Settings

FRA Position
The FRA setting is the primary rear suspension adjustment. It will have

the MOST effect on the rear suspension performance. To adjust the

FRA:
1. Refer to the initial set-up reference chart (located under the hood of

your snowmobile and on page 53) to determine the desired FRA

position.

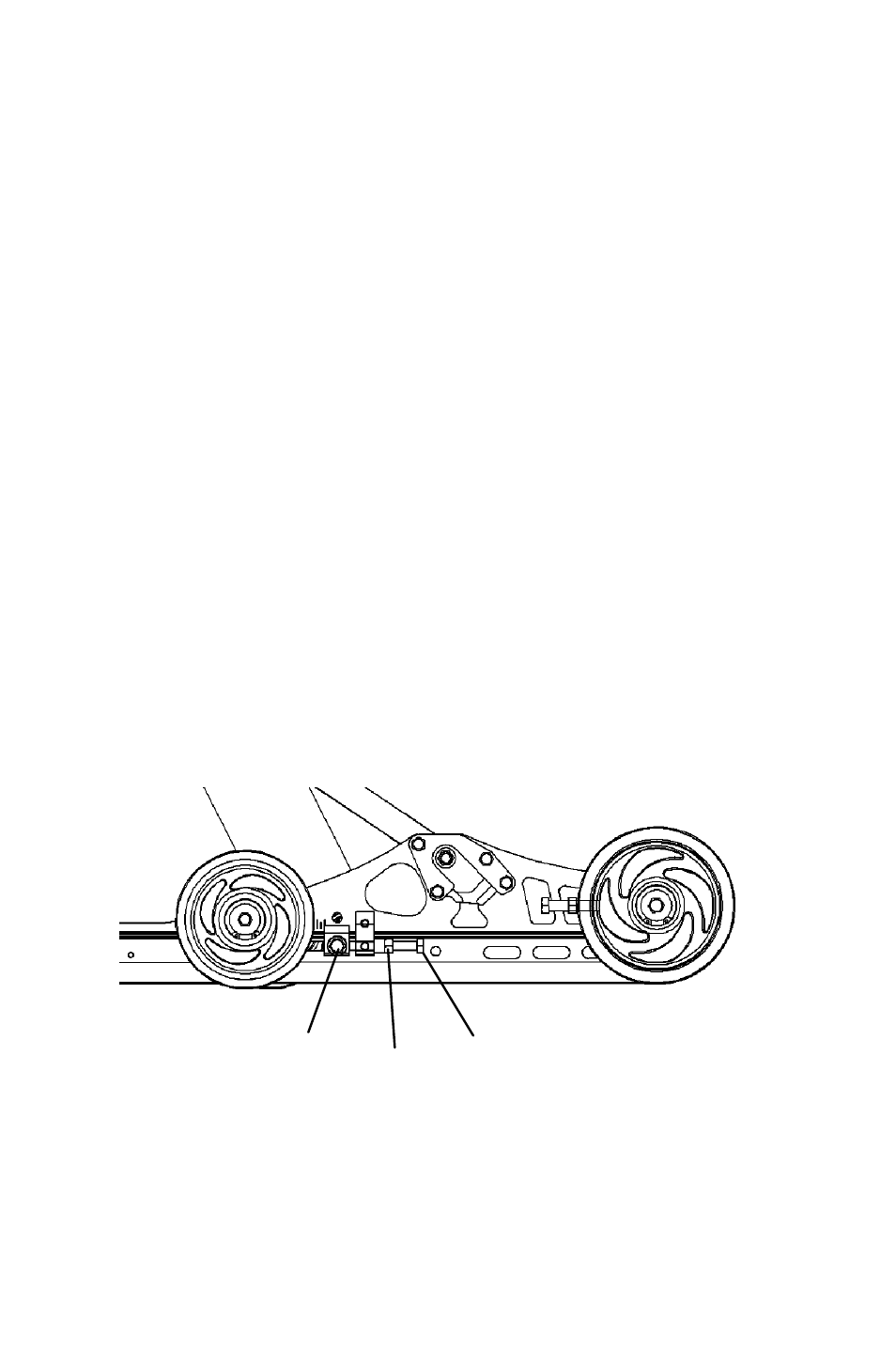

2. To adjust, loosen the hex bolts (1) attaching the rear lower shock

cross shaft to the rail beam.

3. Using a 9/16” wrench, loosen the jam nuts (2) on the preload bolts.
4. Adjust the preload bolts (3) to the desired FRA position.
5. Tighten the jam nuts.

NOTE: Make sure the preload bolt contacts the slide block before

tightening the jam nut.

6. Tighten the hex bolts and torque to 35 ft. lbs. (47 Nm).

NOTE: When the M-10 suspension is new, it will take from 25 to 200

miles (40-300 km)to properly break in the springs and

shocks, at which time the suspension will be softer and may

require FRA re-adjustment.
