Chapter 2 Installing the LCD TV

HDMI 1 IN

HDMI 2 IN

L

R

L

R

L

R

L

R

L

R

AUD IO IN

AUD IO IN

VGA /PC IN

VIDEO2 IN

SCART 1

SCART 2

VIDEO

AUD IO IN

AUD IO IN

COMPONENT IN

AUD IO

OUT

TV CABLE

VHF/UHF IN

Y

Pb

Pr

Rear of TV

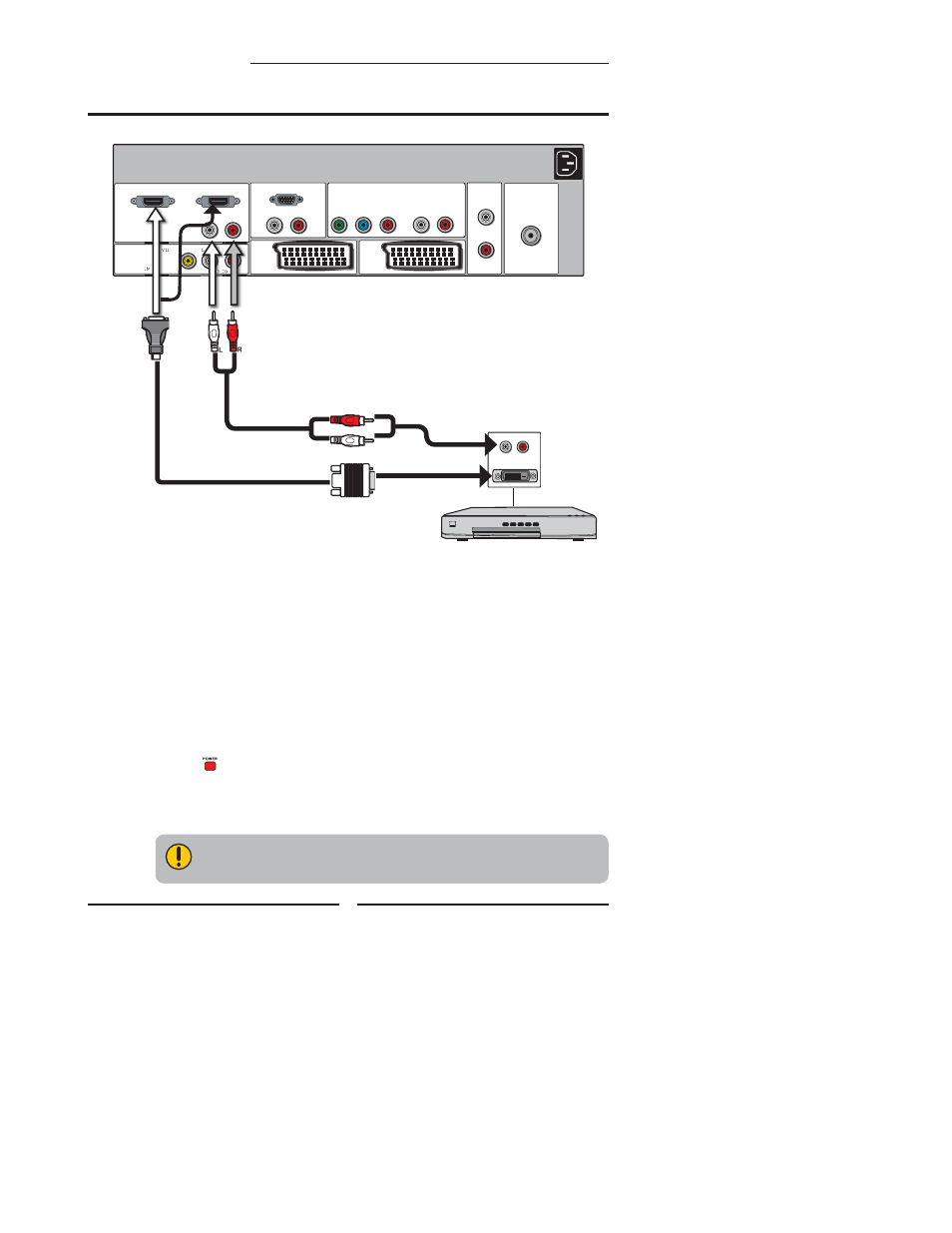

Connecting an AV Equipment with DVI Connector

AV EQUIPMENT

HDMI-to-DVI Cable

AUDIO Cable

DVI IN

AUD IO

L

R

Use a HDMI-to-DVI cable to connect the AV equipment’s DVI output jack to the LCD TV’s
HDMI1/HDMI2 IN jacks.

Use an audio cable to connect the

AV equipment’s

audio output jacks to LCD TV’s HDMI

AUDIO jacks.

Connect all AC power sources, before turning on the power switch of the LCD TV or
other connected equipment.

Press the button on the remote to turn on the LCD TV.

Press the SOURCE button on the remote to select VIDEO6 or VIDEO7 .

If the LCD TV is connected to AV equipment’s DVI connector, you will need
an HDMI-to-DVI cable or a HDMI adapter(not included).
