Chapter 2 Installing the LCD TV

Rear of TV

HDMI 1 IN

HDMI 2 IN

L

R

L

R

L

R

L

R

L

R

AUD IO IN

AUD IO IN

VGA /PC IN

VIDEO2 IN

SCART 1

SCART 2

VIDEO

AUD IO IN

AUD IO IN

COMPONENT IN

AUD IO

OUT

TV CABLE

VHF/UHF IN

Y

Pb

Pr

Pr

Pb

Pr

Pb

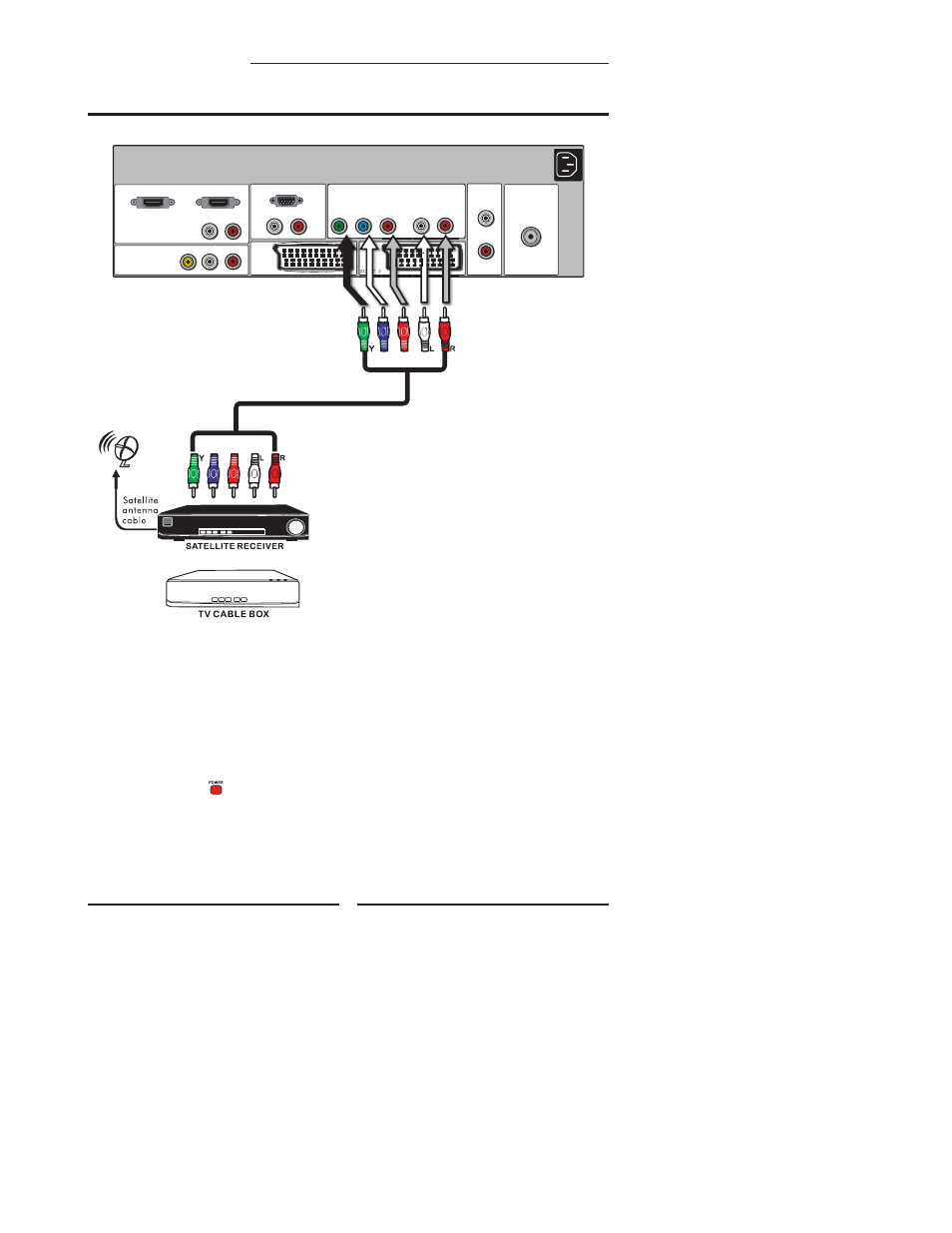

Connecting a Digital TV Cable Box or Digital Satellite Receiver

COMPONENT/AUDIO Cable

Use a component cable to connect the satellite receiver’s/TV Cable Box’s component
(YPbPr) output jacks to the LCD TV’s component input jacks.

Use an audio cable to connect the satellite receiver’s/TV Cable Box’s component audio
jacks to the LCD TV’s audio input jacks.

Connect all AC power sources, before turning on the power switch of the LCD TV or
other connected equipment.

Press the button on the remote to turn on the LCD TV.

To watch programs via satellite receiver or TV Cable Box, press the SOURCE button on
the remote to select VIDEO5.
