Connecting a vcr – Polaroid FLU-2632D User Manual
Page 20
HDMI 1 IN
HDMI 2 IN
L
R
L
R
L
R
L
R
L
R
AUD IO IN
AUD IO IN
VGA /PC IN
VIDEO2 IN
SCART 1
SCART 2
VIDEO
AUD IO IN
AUD IO IN
COMPONENT IN
AUD IO
OUT
TV CABLE
VHF/UHF IN
Y
Pb
Pr
Rear of TV
AV Cable
20
Chapter 2 Installing the LCD TV

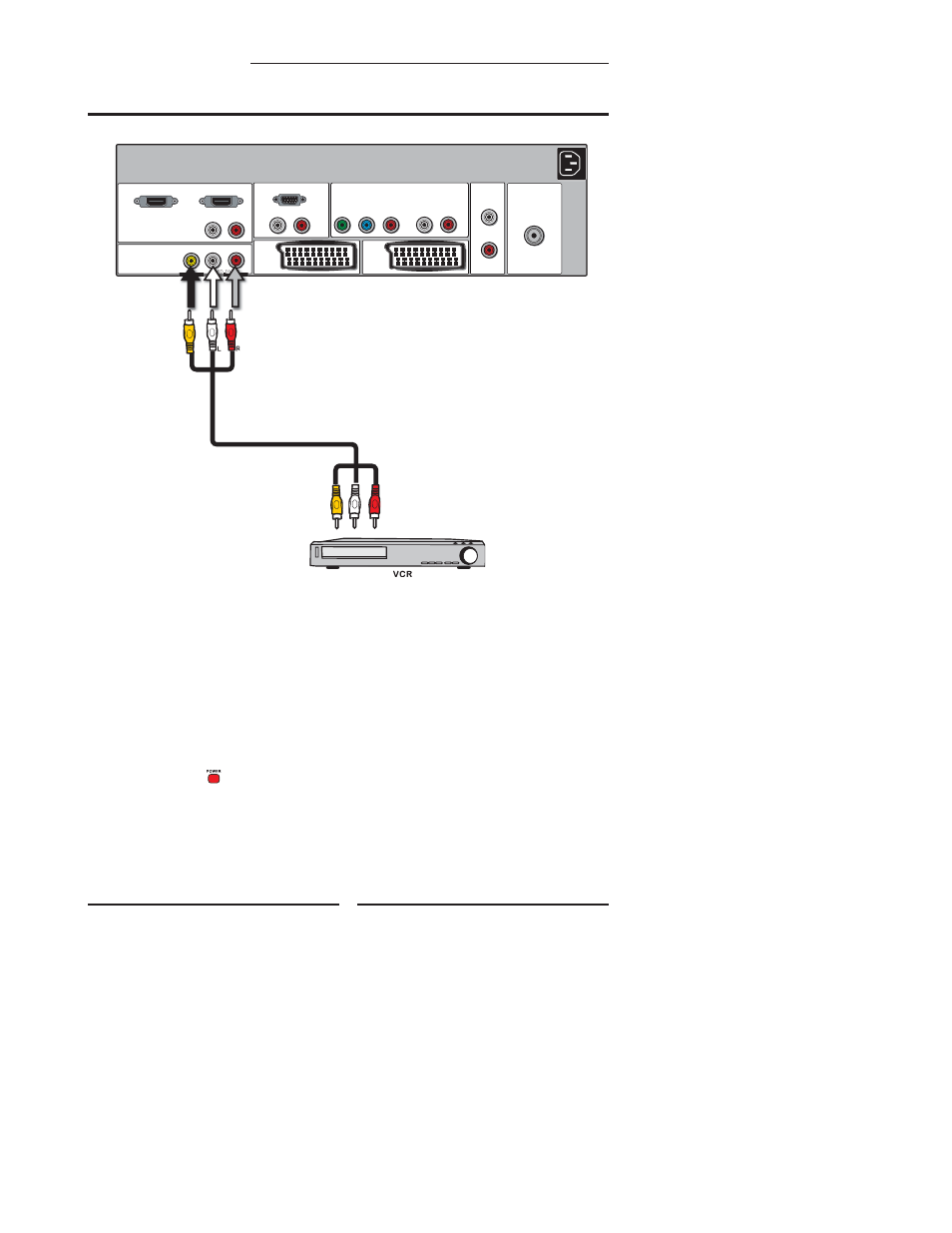

Use a composite cable to connect the VCR’s composite video/audio jacks to the LCD TV’s
VIDEO2 IN jacks.
Connect all AC power sources, before turning on the power switch of the LCD TV or
other connected equipment.
Press the button on the remote to turn on the LCD TV.
To watch a videotape, press the SOURCE button on the remote to select
VIDEO2
( METHOD A).
Connecting a VCR
