Chapter 2 Installing the LCD TV

Connecting a Video Camera or Game Console

PLAY STATION

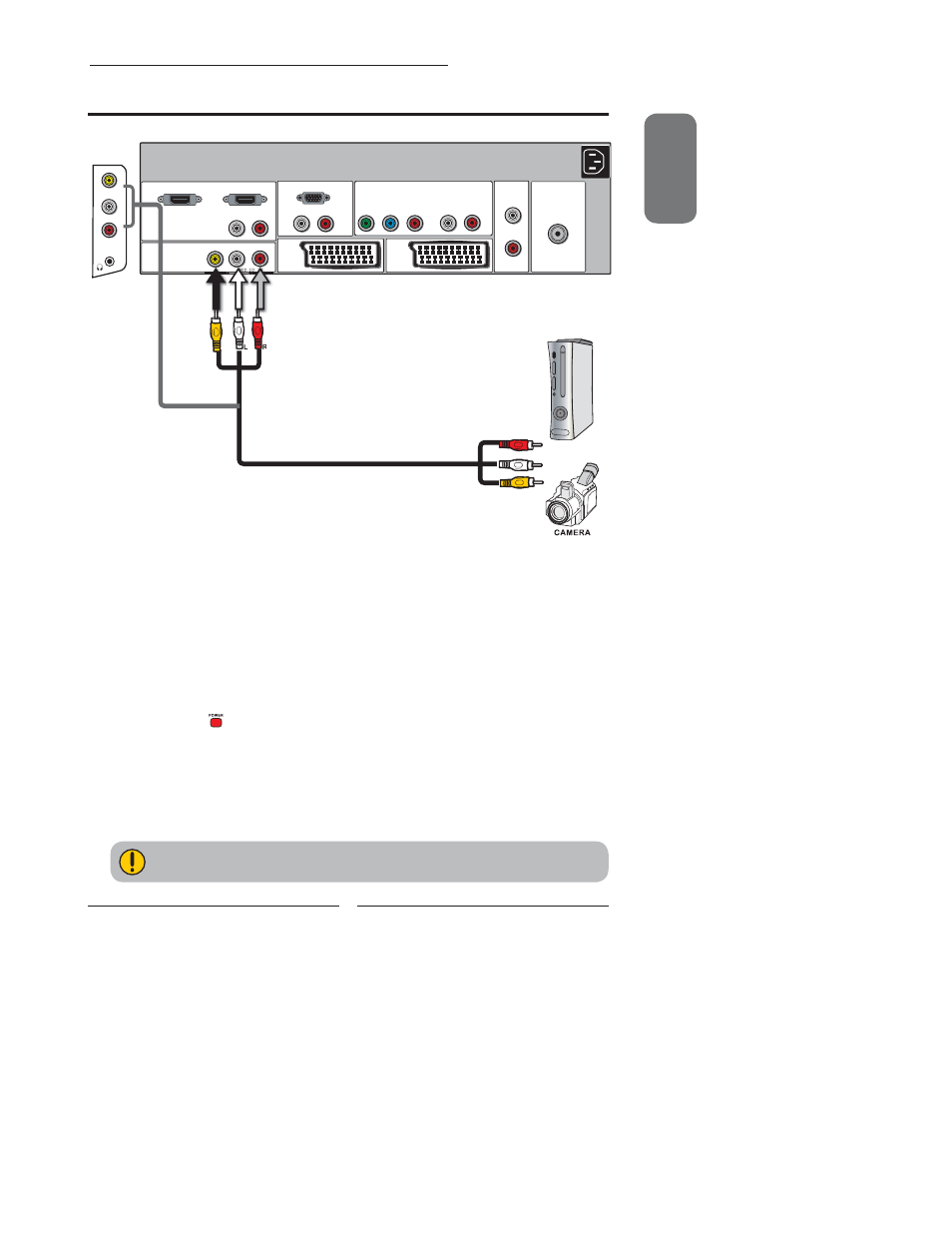

Use a composite cable to connect the

video camera’s or Game Console’s

composite video/

audio jacks to the LCD TV’s VIDEO2 IN jacks or VIDEO1 IN jacks.

Connect all AC power sources, before turning on the power switch of the LCD TV or
other connected equipment.

Press the button on the remote to turn on the LCD TV.

To watch a video via camera or Game Console, press the SOURCE button on the
remote to select VIDEO1/VIDEO2.

Not all cameras have the ability to connect to a TV. Please check your video camera
user guide for compatibility.
