Connecting a dvd player – Polaroid FLU-2632D User Manual

Page 22

background image

Rear of TV

HDMI 1 IN

HDMI 2 IN

L

R

L

R

L

R

L

R

L

R

AUD IO IN

AUD IO IN

VGA /PC IN

VIDEO2 IN

SCART 1

SCART 2

VIDEO

AUD IO IN

AUD IO IN

COMPONENT IN

AUD IO

OUT

TV CABLE

VHF/UHF IN

Y

Pb

Pr

22

Chapter 2 Installing the LCD TV

D V D PLA YER

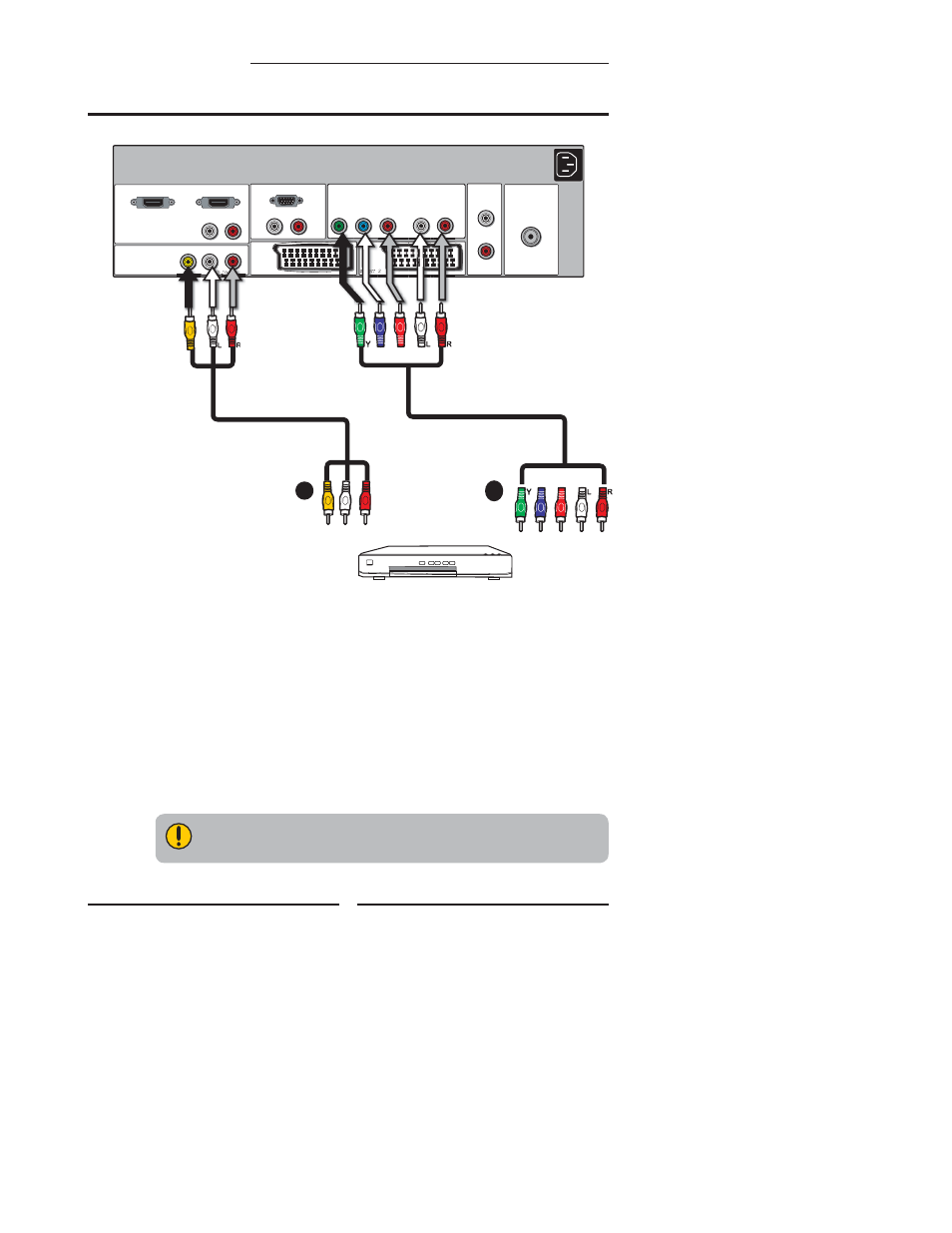

Connecting a DVD Player

A

B

Pr

Pb

Pr

Pb

A/V Cable

COMPONENT/AUDIO Cable

METHOD A:

Use a composite cable to connect the DVD player’s composite video/audio jacks to the LCD

TV’s VIDEO2 IN jacks.

METHOD B:

Use a component cable to connect the DVD player’s component output jacks to the LCD TV’s

YPbPr IN input jacks.

Use an audio cable to connect the DVD player’s component audio jacks to the LCD TV’s

audio input jacks.

The component video jacks on your DVD player are sometimes labeled
YPbPr, or YCbCr. For an explanation of component video, see your DVD
player’s user guide.
