Chapter 1 Introducing the LCD TV

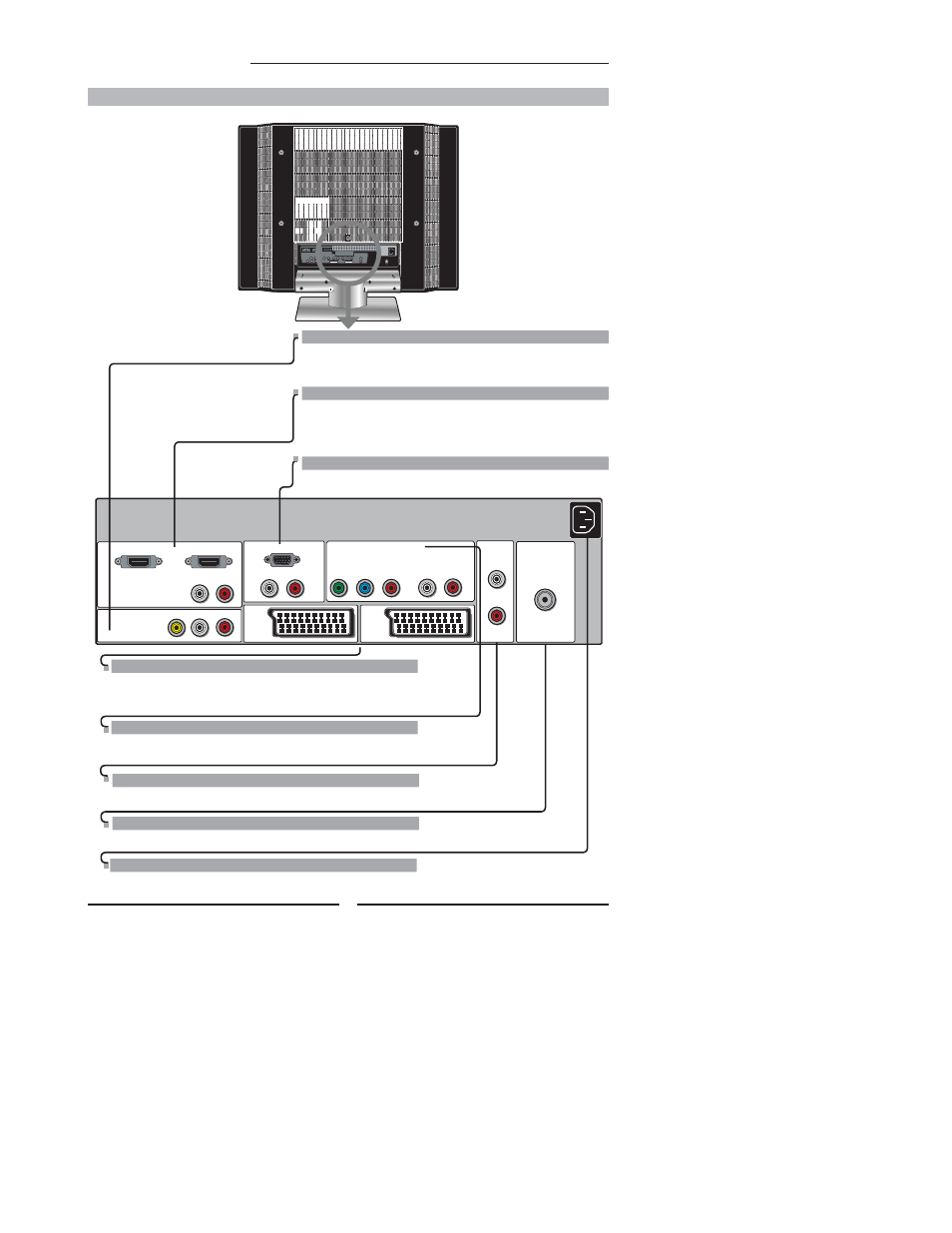

Rear View and Jacks
TV CABLE
Connects RF input from VHF/UHF antenna or cable.
VGA IN
Connects the PC, or other AV equipment with VGA and AUDIO(L/R)
output jacks.
SCART1/SCART2 IN
Connects a piece of AV equipment with a SCART socket.
The SCART interface offers multiple signals(RGB, AV) with audio input/output
between the TV and external video equipment.
VIDEO2 IN
Connects to the composite VIDEO and AUDIO(L/R) output jacks on
external video equipment.
HDMI 1/HDMI 2 IN
Connects the all digital AV equipment with HDMI connector.HDMI
supports enhanced, high-defi nition video and two-channel digital
audio. The AUDIO(L/R) of HDMI IN is for DVI connection.
AC IN
Connects to the AC power cord.
AUDIO OUT
Connects to the AUDIO(L/R) input jacks on AV equipment.
COMPONMENT IN
Connects to the DVD player, Digital Set-Top-Box, or other AV equipment with
component(YPbPr) video and audio output jacks.
