Chapter 2
2-16

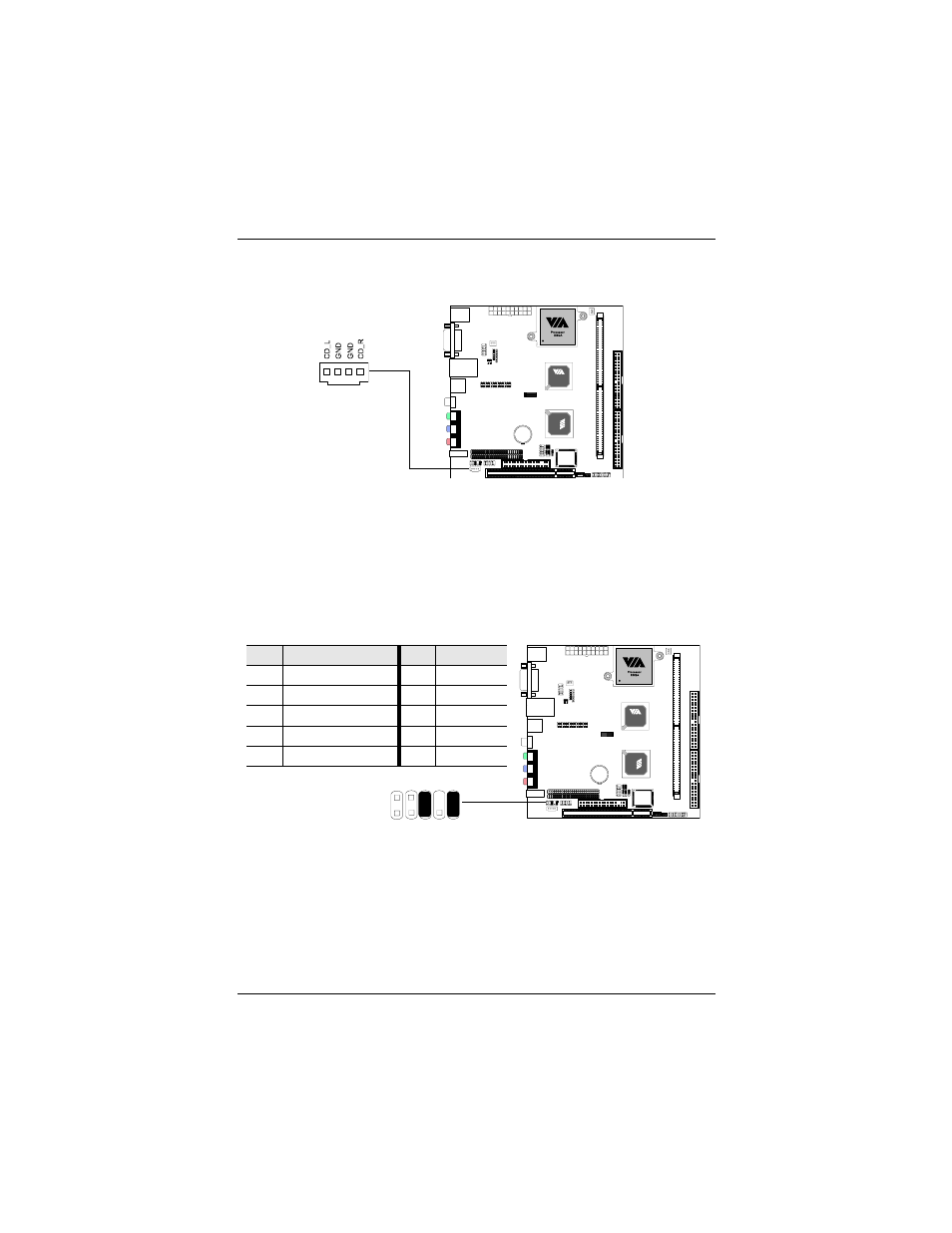

CD Audio Connector: CD_IN
This connector is for the CD-ROM audio connector.
Front Audio Panel: F_AUDIO
This connector allows you to connect a front audio panel to the mainboard.
Only the line-out and microphone functions are available for use on the front
panel. To connect the front audio cable, first remove the two red plastic
jumpers.
Pin Signal Pin Signal
1 FRN_MIC 2 AGND
3 AUD_MIC_BIAS 4 +5V
5 LINE_OUT_R 6 NEXT_R
7 NC 8 Blank
9 LINE_OUT_L 10 NEXT_L
CLE266
CD_IN
CLE266
1
F_AUDIO
9
10 2
