Adding a Video Cassette Recorder (VCR)
Additional coaxial cable and audio/video (AV) cable are required.

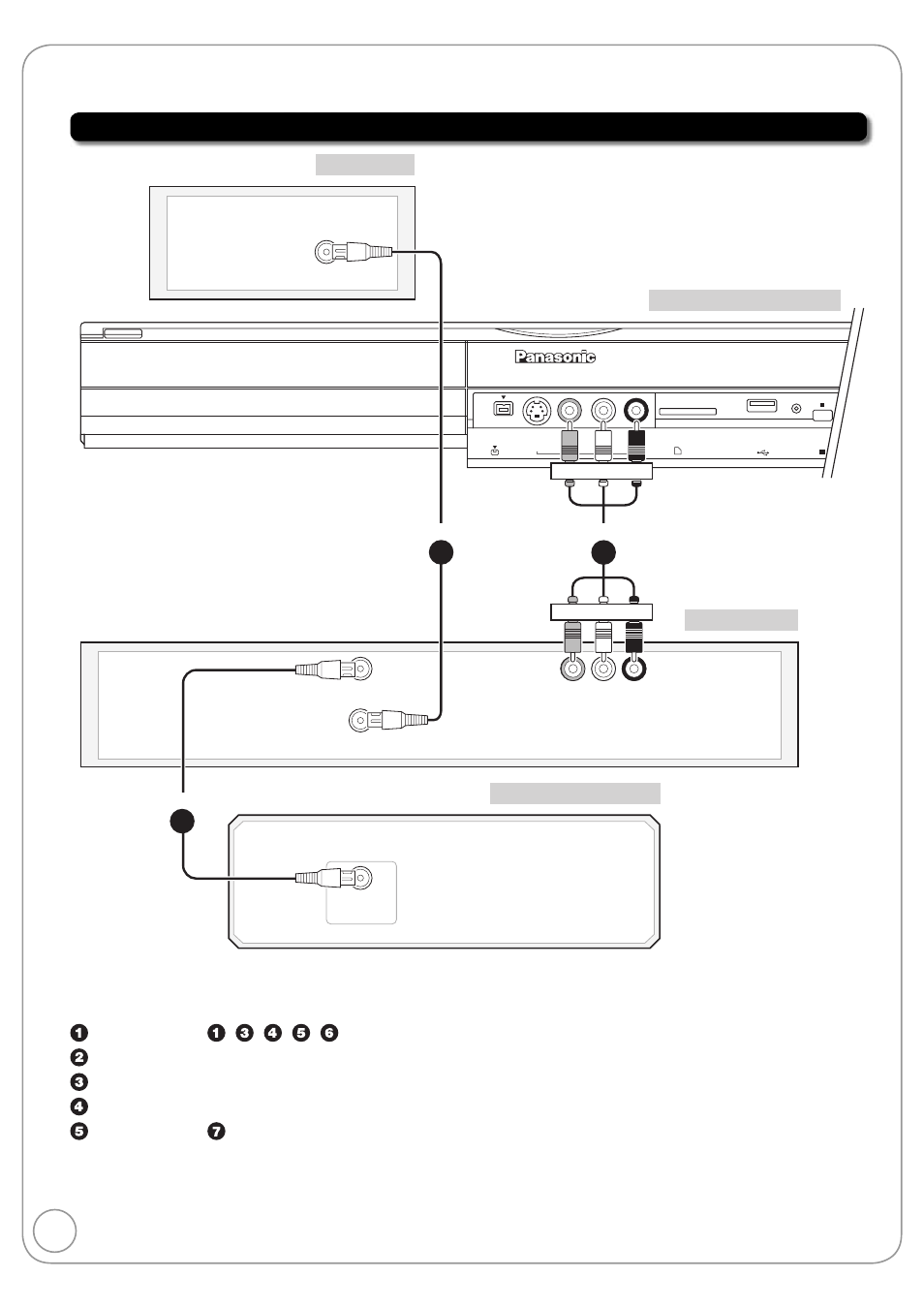

Connecting to a Television, a Set Top Box and a VCR
/
RESET
SD CARD
IN2
DV IN
S VIDEO
VIDEO
L/MONO-AUDIO-R
RF OUT
VHF/UHF
RF IN
AUDIO IN
R L
VIDEO
IN
Rear of VCR
Rear of Set Top Box
Rear of TV
This unit’s front panel
AUDIO OUT
L R
VIDEO
OUT
RF IN
RF OUT
Yellow White Red
Yellow White Red
step
4
step
3
step
2
Perform step , , , , on page 8.
Coaxial cable from the “
RF OUT” on the Set Top Box to the “RF IN” on the VCR.
Coaxial cable from the “
RF OUT” on the VCR to the “VHF/UHF RF IN” on the TV.
Audio/video cable from the “
AV OUT” on the VCR to the “IN2” on the unit.
Perform step on page 8.
•
