20
En
02 Install Your Flat Panel TV

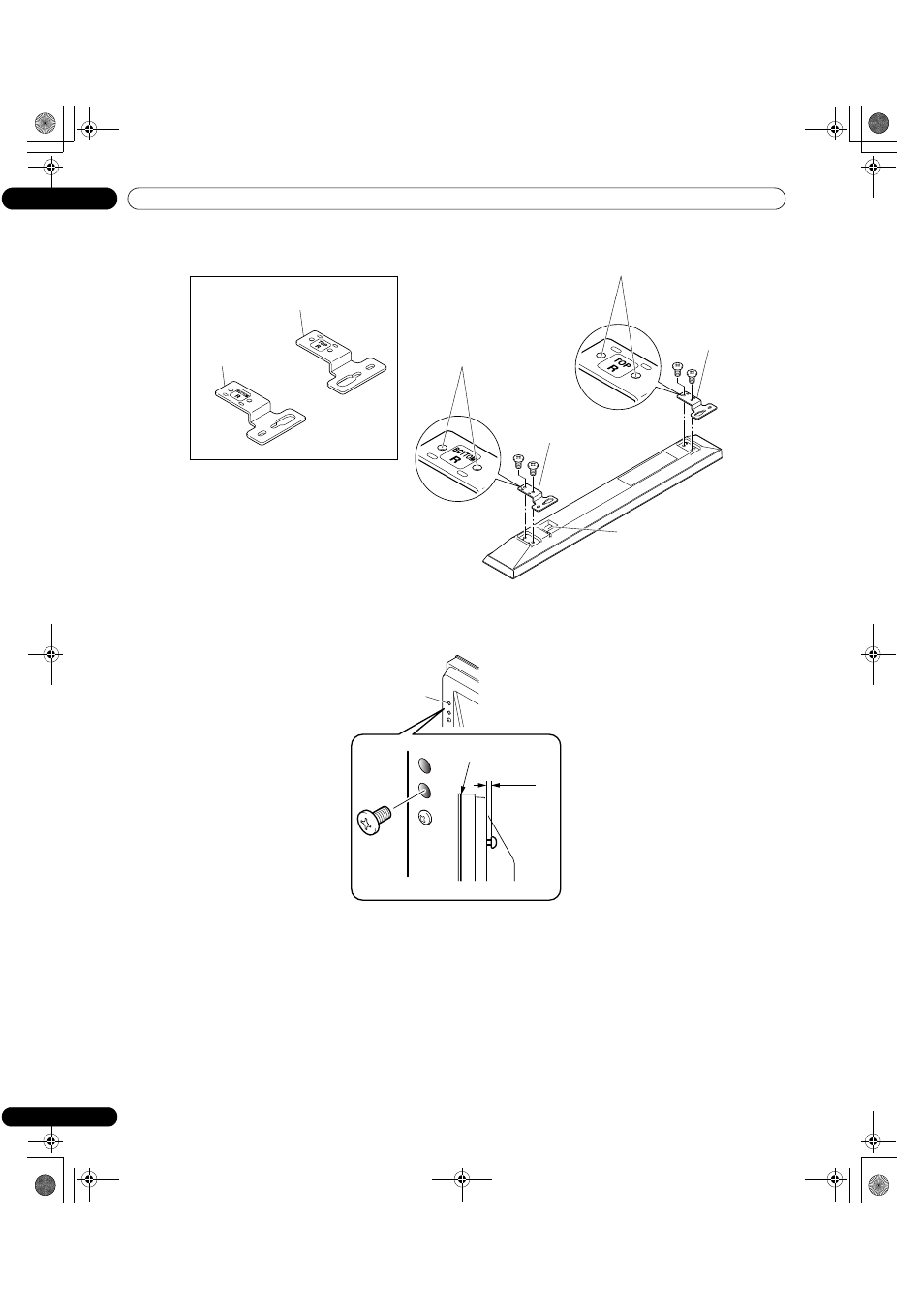

2 ) Screw a supplied screw into the speaker bracket hole (lower of the two) at the top, rear of the panel.
Do not tighten it all the way yet. Leave it loose, with about 5 mm left to tighten.
Speaker bracket
(For BOTTOM-Right)
Speaker bracket (For TOP-Right)
Screw holes
Speaker bracket
(For TOP-Right)
Place the speaker so its
terminals (bottom) are
facing you.
Speaker bracket
(For BOTTOM-Right)
Screw holes
(PRO-111FD)
Top, rear of
flat panel TV
Top of flat panel TV
5 mm
Leave a space of about 5 mm
Speaker
mounting
hole
