02 Install Your Flat Panel TV

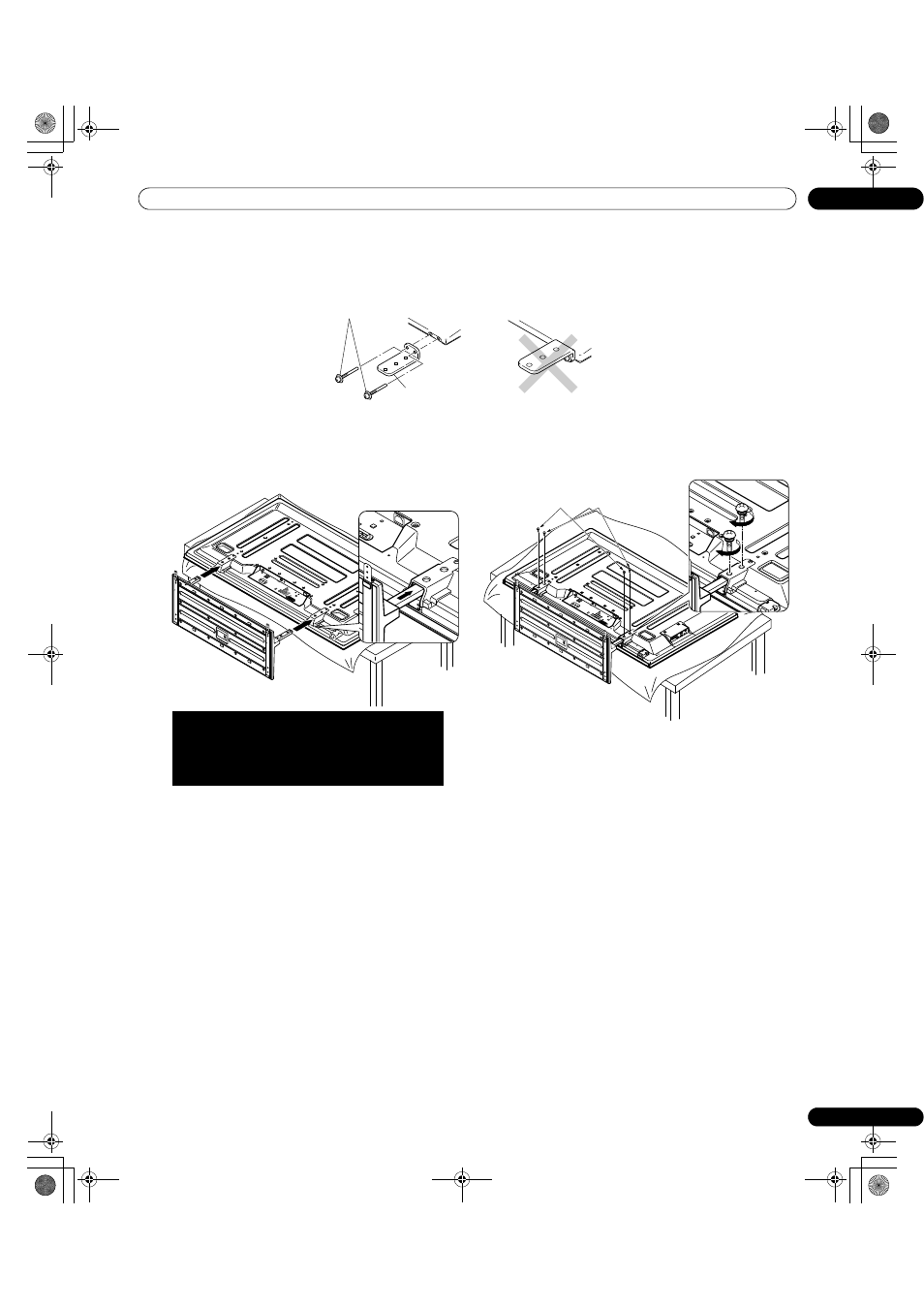

7 ) After assembling the stand, attach the falling prevention metal fittings using the installation screws.
8 ) With the flat panel TV still face down, insert the stand’s supports into the bottom of the panel then tighten
the screws.
9 ) With the assistance of at least one other person, lift the panel upright then move it in to position.
Installation screws
(M4 x 35 mm: black)
(PRO-151FD)
Falling prevention
metal fitting
Line up the column supports with
the bottom of the flat panel TV.
Insert the stand supports into the flat panel
TV so that the arrow marked “FRONT/FACE
AVANT” on the bottom of the stand
points down.
Installation bolts
(M6 x 20 mm) Installation bolts
(M6 x 20 mm)
