2–12 • User’s Guide
Chapter 2 • Detailed Setup
150"/381 cm

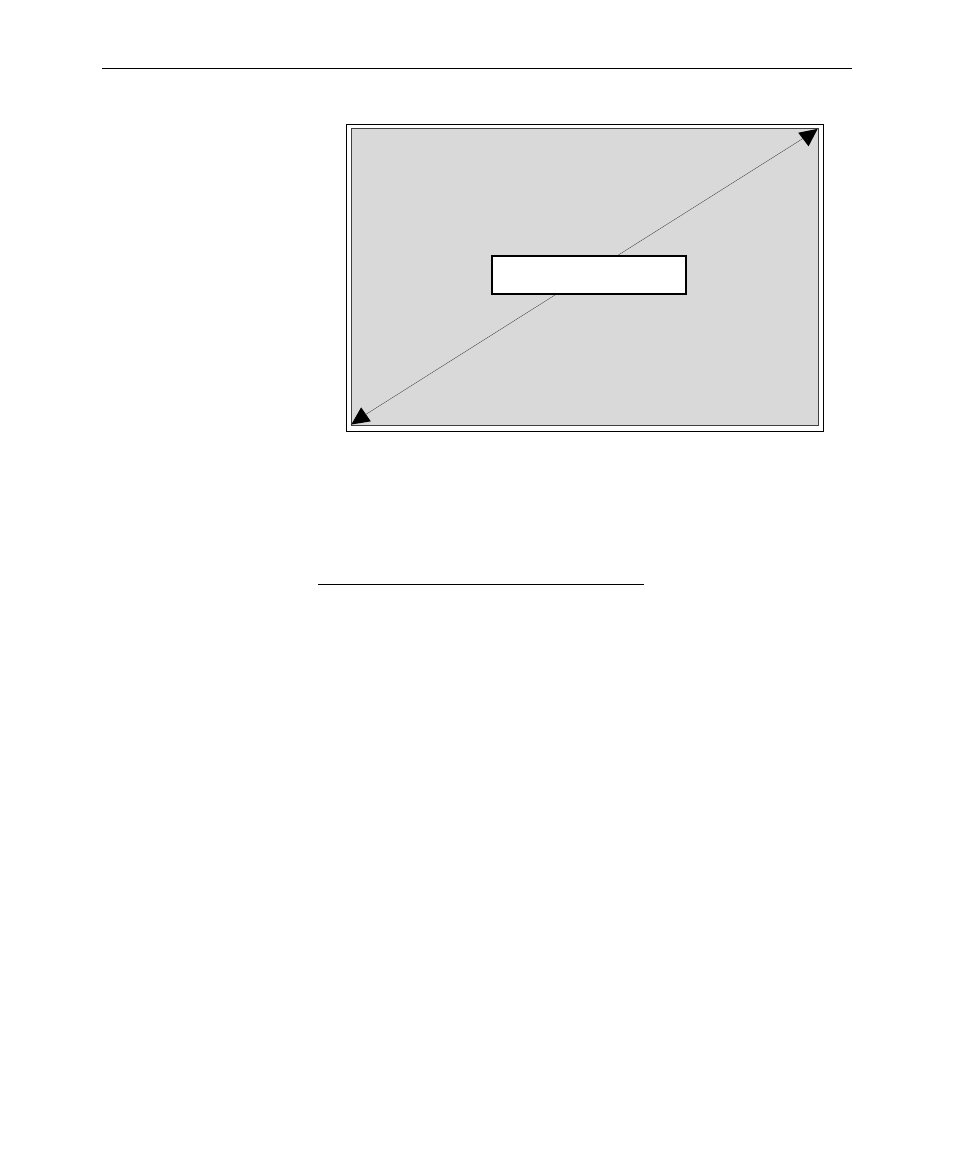

Figure 2-9
Maximum diagonal measurement of projected image when
the projector is 40’ (12.1 m) from the projection screen
Image Sizing and Focusing
1. Adjust the picture size using the ZOOM buttons on the
control panel or remote control. The picture becomes wider
by pressing W, and telescopic by pressing T.
Note:
Pressing the BLUE BACK button on the remote
control shows a bright blue background so you can clearly see
the edges.
2. Adjust the focus using the FOCUS buttons.
a)
Press the FOCUS button. An on-screen display appears.
b)
Using the FOCUS button, adjust the focus so that the
image is clear.
3. Turn on the power to all connected equipment.
356" (904.2 cm)
