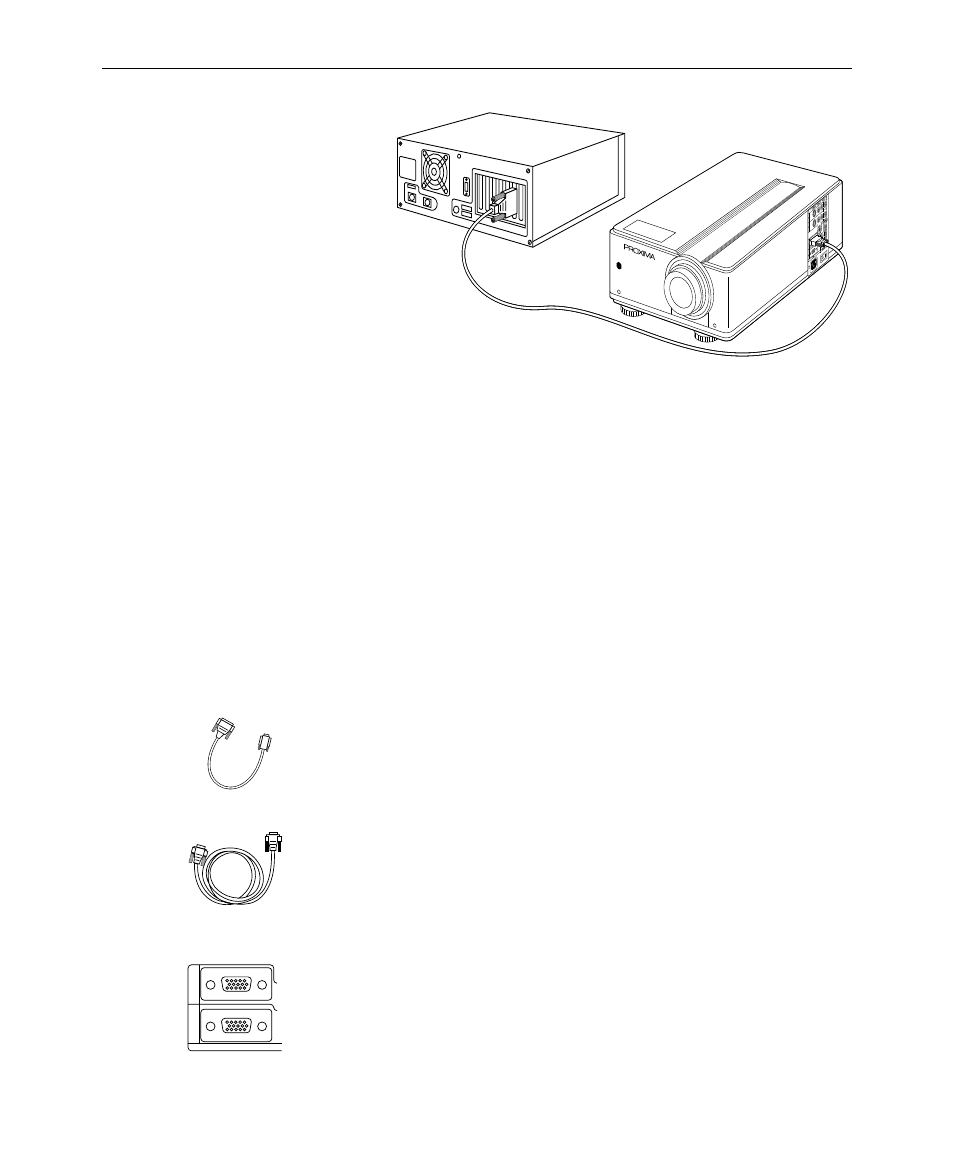

Figure 2-5
Computer video connections
Notebooks/Laptops
1. Turn off power to the computer and the projector.
2. If you are using a Macintosh laptop,
a) Plug the laptop video adaptor cable (supplied with the
laptop) into the laptop.
b) Connect one end of the Macintosh video cable adaptor
(supplied with the projector) to the laptop video adaptor
cable.
c) Connect the other end of the Mac video cable adaptor to
one end of the DP5100 VGA video cable. Skip to step 4.
3. To connect to a PC laptop, plug one end of the DP5100 VGA
video cable into the computer's video output (monitor) port.
4. Plug the other end of the DP5100 VGA video cable into the
projector's COMPUTER (RGB) 1 or 2 port.
Note: If you can’t project an image at the same time that the
laptop displays an image, see your laptop's manuals for instruc-
tions on switching between the internal screen and the video port.
1
2
RGB
Macintosh Video
Cable Adaptor
VGA video cable
