[NAVI] (NAVIGATION)
¡Activates/inactivates the car
navigation. ( a page 23, 38)
Display Unit
VOLUME
MENU MUTE MODE NAVI
NAVIGATION ASPECT
P·MODE POWER
ASP ENTER
CQ-VD7200U
IN-DASH 7 INCH WIDE COLOR LCD TV / DVD - VIDEO / RECEIVER
DISC
TRACK/ CHANNEL
Dimmer sensor
(
a page 44)
Remote control
sensor
[MENU]
¡Shows the menu screen. (
a page 38)
¡Shows the rear monitor setting menu.
( a page 58)
[}] [{] (VOLUME)
¡Adjusts the sound volume.
( a page 18)
[MUTE]
¡Mutes the sound temporarily. (
a page 18)
¡Compensates bass and treble in the low and
middle volume level. (LOUD) ( a page 18)
[TILT]
¡Shows the monitor position
setting menu. ( a page 19)
¡Tilts the monitor forward
temporarily. ( a page 19)
[ASP] (ASPECT) (P • MODE)
¡Selects the aspect ratio. (
a page 57)
¡Activates/inactivates the private mode.
( a page 59)
[ ] (OPEN/CLOSE)
¡Opens/closes the monitor.
( a page 18)
[MODE] (POWER)
¡Switches on/off the power. (
a page 18)
¡Changes the modes such as sound and
picture. ( a page 18)
[u]
¡Ejects/reloads a disc. (
a page 24, 28)
Disc slot
[}] [{] (DISC)
¡Searches for TV stations
and memorizes them
automatically. (
a page 21)
¡Selects a folder or a disc.
( a page 29, 37)
¡Selects (vertically) or adjusts
an operation or item.
[]] [[] (TRACK/CHANNEL)
¡Selects or searches
a channel, track, file
or frequency.
(
a page 20, 29, 34, 37)
¡Sequential transition from one
file to the next. ( a page 29)
¡Selects (horizontally) or
adjusts an operation or item.
[ENTER]
¡Selects a band.
( a page 34)
¡Searches for broadcast
stations and memorizes them
automatically.
(
a page 35)
¡Determines an operation or
item.
ENTER
ENTER
ENTER
Name of Controls and Functions
Note: Refer to “Electrical Connections” for names on the rear of the hide-away unit. ( a page 74-75)
12 13
3
E
N
G
L
I
S
H
4
E
N
G
L
I
S
H
CQ-VD7200U CQ-VD7200U

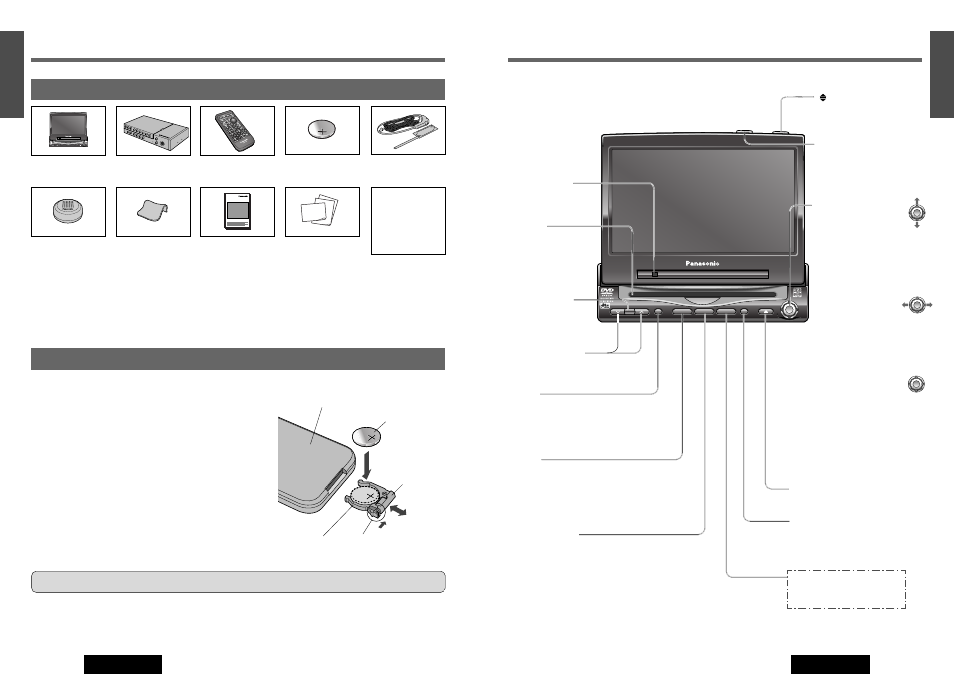

Remote Control Unit Preparation
1. Display Unit
VOLUME MENU MUTE MODE NAVI NAVIGATION ASPECT P·MODE POWER ASP ENTER
CQ-VD7200U IN-DASH 7 INCH WIDE COLOR LCD TV / DVD - VIDEO / RECEIVER
DISC TRACK/ CHANNEL 1
2. Hide-away Unit
1
3. Remote Control
Unit
1
4. Lithium Battery
(CR2025)
1
7. Wiping Cloth
1
8. Operating
Instructions
XXXXXXXXXXXXXXX XXXXXXXXXXXXXXXXX XXXXXXXXXXXXXX XXXXXXXXXXXXXXXX OO-OOOOO
1
9. Warranty Card, etc.
1 set
5. TV Antenna
Components/Remote Control Unit Preparation
Components
Battery Installation
q Remove the battery holder.
Pull the holder by the position B while pushing position A
in the direction indicated by the arrow.
w Install the battery on the battery holder.
Set a new battery properly with its ( + ) side facing up as
shown in the figure.
e Insert the battery holder.
Push the battery holder back into its original position.
(Inserting/Replacing the Battery)
Back side
Lithium battery
(supplied)
Position B
Position A
¡Do not disassemble or short the battery. Do not throw a battery into a fire.
¡Keep batteries away from children to avoid the risk of accidents.
¡Be careful to observe proper local disposal rules when you dispose of batteries.
Battery Notes
Remove and dispose of the old battery immediately.
Battery Information:
¡Battery Type: Panasonic lithium battery (CR2025) (supplied)
¡Battery Life: Approximately 6 months with normal use (at room temperature)
Caution: Improper use of batteries may cause overheating, an explosion or ignition, resulting in injury or a fire.
6. Speaker*
*Do not use it for a
center speaker.
1
1 set
Battery holder
Note:
¡The number in parenthesis underneath each accessory part name is the part number for maintenance and service.
¡Accessories and their parts numbers are subject to modification without prior notice due to improvements.
10.
Installation
Hardware
(screws, cords,
etc.) (
a page 61)
