ProForm PFSY74490 - Manual (Page 9)

9
16
28
41
63
80
28
3
62
2
28
64
36
36
6
7
89
92
64
89
15

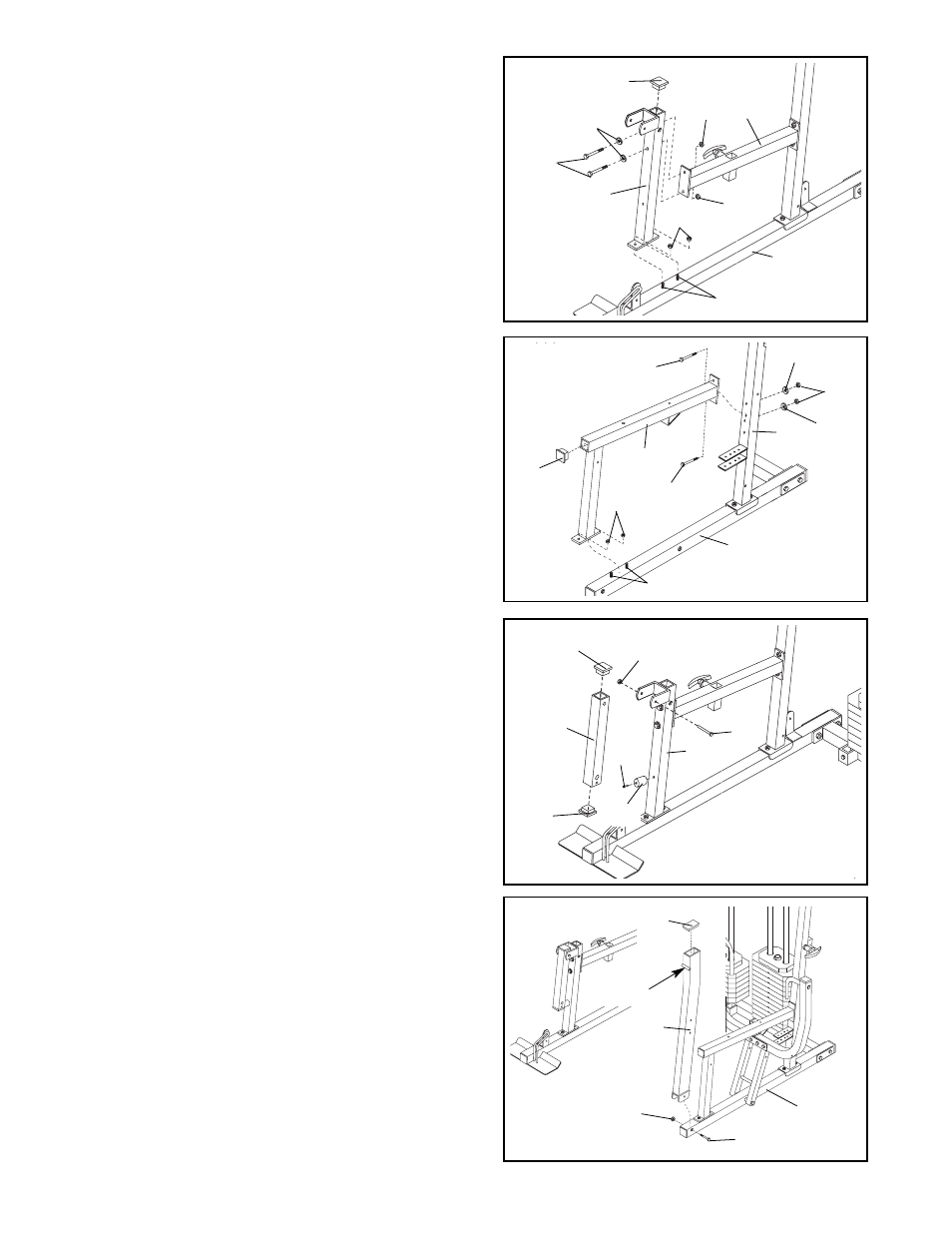

15. Press a 2” Square Inner Cap (28) into the Press Seat
Frame (7).
Slide the Press Seat Frame (7) onto the indicated
5/16” x 2 1/2” Carriage Bolts (92) in the Press Base
(6). Hand tighten two 5/16” Nylon Locknuts (64) onto
the Bolts.
Do not tighten the Nylon Locknuts yet.
Attach the Press Seat Frame (7) to the Press Upright
(2) with two 5/16” x 2 3/4” Bolts (89), two 5/16”
Washers (36), and two 5/16” Nylon Locknuts (64).
Tighten all of the Nylon Locknuts (64) used in this
step.
16. Press two 2” Square Inner Caps (28) into the ends of
the Leg Lever (41). Attach the Bumper (40) to the
Butterfly Front Leg (3) with a 1” Tap Screw (80).
Lubricate the 3/8” x 3 1/4” Bolt (62). Attach the Leg
Lever (41) to the Butterfly Front Leg (3) with the Bolt
and a 3/8” Nylon Jam Nut (63).
Do not overtighten
the Nylon Jam Nut; the Leg Lever must pivot
freely.
14. Press a 2” Square Inner Cap (28) into the Butterfly
Front Leg (3). Slide the Butterfly Front Leg onto the
indicated 5/16” x 2 1/2” Carriage Bolts (92) in the
Butterfly Base (4). Hand tighten two 5/16” Nylon
Locknuts (64) onto the Bolts.
Do not tighten the
Nylon Locknuts yet.
Attach the Butterfly Front Leg (3) to the Butterfly Seat
Frame (14) with two 5/16” x 2 3/4” Bolts (89), two
5/16” Washers (36), and two 5/16” Nylon Locknuts
(64).
Tighten all of the Nylon Locknuts used in
steps 13 and 14.
14
28
92
14
89
36
64
64
64
3
4
20
98
17
17. Press a 2” x 3” Inner Cap (98) into the indicated end
of the Press Front Leg (20).
Orient the Press Front Leg (20) with the welded rod in
the position shown. Attach the Press Front Leg to the
Press Base (6) with a 1/2” x 3 1/2” Bolt (105) and a
1/2” Nylon Jam Nut (106).
Do not overtighten the
Nylon Jam Nut; the Press Front Leg must pivot
freely.
105
106
6
Welded
Rod
40
