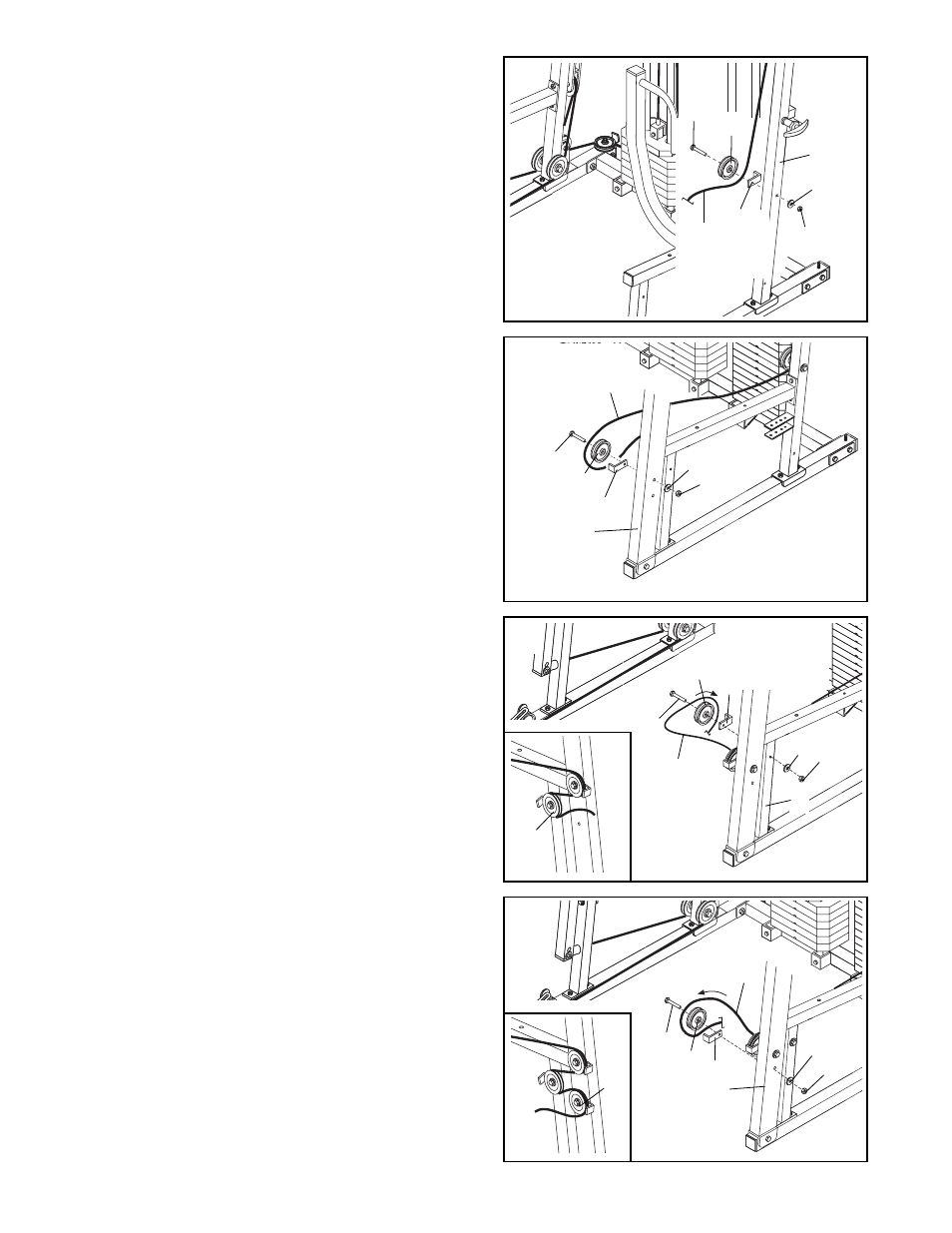

41. Wrap the High Cable (72) around a 3 1/2” Pulley (24).
Attach the Pulley and a Cable Trap (25) to the indicat-
ed hole in the Press Upright (2) with a 3/8” x 3 3/4”
Bolt (59), a 3/8” Flat Washer (48), and a 3/8” Nylon
Jam Nut (63).
Make sure the Cable Trap is oriented
as shown. 2
42. Wrap the High Cable (72) around a 3 1/2” Pulley (24)
in the direction shown. Attach the Pulley and a Cable
Trap (25) to the indicated hole in the Press Front Leg
(20) with a 3/8” x 3 3/4” Bolt (59), a 3/8” Flat Washer
(48), and a 3/8” Nylon Jam Nut (63).
42
25
63
48
24
72
59
20
43
48
25
7
24
59
72
63
43. Wrap the High Cable (72) around a 3 1/2” Pulley (24)
in the direction shown. Attach the Pulley and a Cable
Trap (25) to the indicated hole on the Press Seat
Frame (7) with a 3/8” x 3 3/4” Bolt (59), a 3/8” Flat
Washer (48) and a 3/8” Nylon Jam Nut (63).
See the
inset drawing. Make sure the Cable is routed
exactly as shown.
44. Wrap the High Cable (72) around a 3 1/2” Pulley (24)
in the direction shown. Attach the Pulley and a Cable
Trap (25) to the Press Front Leg (20) with a 3/8” x 3
3/4” Bolt (59), a 3/8” Flat Washer (48) and a 3/8”
Nylon Jam Nut (63).
See the inset drawing. Make
sure the Cable is routed exactly as shown.
