13

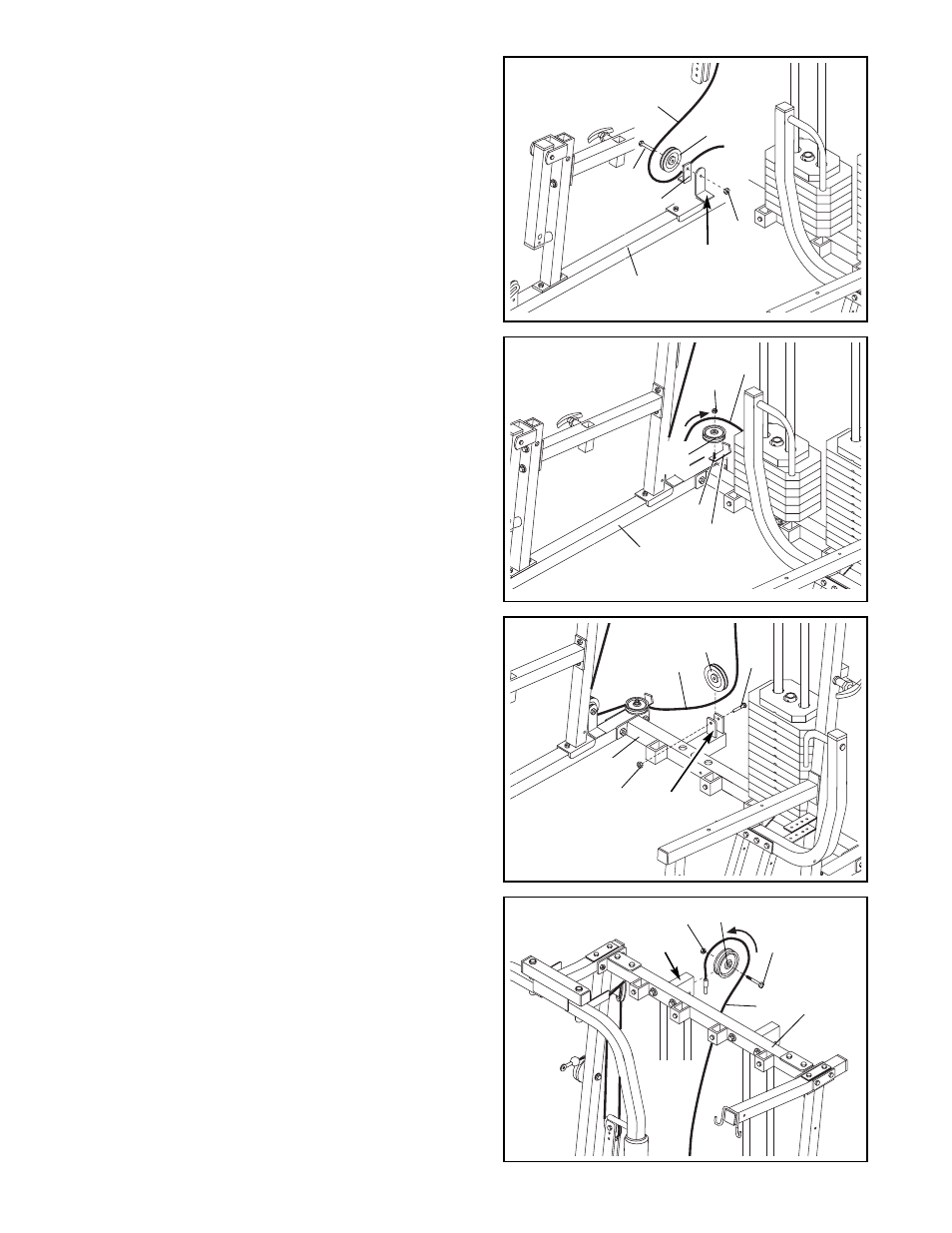

32. Wrap the Ab Cable (74) around a 4 1/2” Pulley (102)
in the direction shown. Attach the Pulley inside the
indicated bracket on the Weight Top Frame (66) with
a 3/8” x 2” Bolt (54) and a 3/8” Nylon Locknut (50).
31. Wrap the Ab Cable (74) around a 3 1/2” Pulley (24).
Attach the Pulley to the bracket on the Weight Base
(5) with a 3/8” x 1 3/4” Bolt (57) and a 3/8” Nylon
Locknut (50).
50
24
74
54
102
74 66
57
50
Bracket
Bracket
5
32
31
30. Wrap the Ab Cable (74) around a 3 1/2” Pulley (24) in
the direction shown. Secure the Pulley and a Cable
Trap (25) to the 3/8” x 3 3/4” Carriage Bolt (85) in the
Butterfly Base (4) with a 3/8” Nylon Jam Nut (63).
Make sure the Cable Trap is oriented as shown.
30
63
85
74
4
24
29. Wrap the Ab Cable (74) around a 3 1/2” Pulley (24)
as shown. Attach the Pulley and a Cable Trap (25) to
the welded bracket on the Butterfly Base (4) with a
3/8” x 2” Bolt (54) and a 3/8” Nylon Locknut (50).
29
54
74
Welded
Bracke
25
50
4
24
25
