B. Remove the 3 1/2” Pulley (24) and the Cable Trap
(25) from a set of Pulley Plates (23). Re-attach the
Pulley and the Cable Trap to the inner hole in the
Pulley Plates with the 3/8” x 2” Bolt (54) and the 3/8”
Nylon Locknut (50).
Note: If the Cable is still too
loose after moving a Pulley, repeat the process
with another Pulley.
23
Adjustment
holes
50
25
24
54
Trouble-shooting and Maintenance
Inspect and tighten all parts each time you use the weight system. Replace any worn parts immediately. The
weight system can be cleaned using a damp cloth and mild non-abrasive detergent. Do not use solvents.

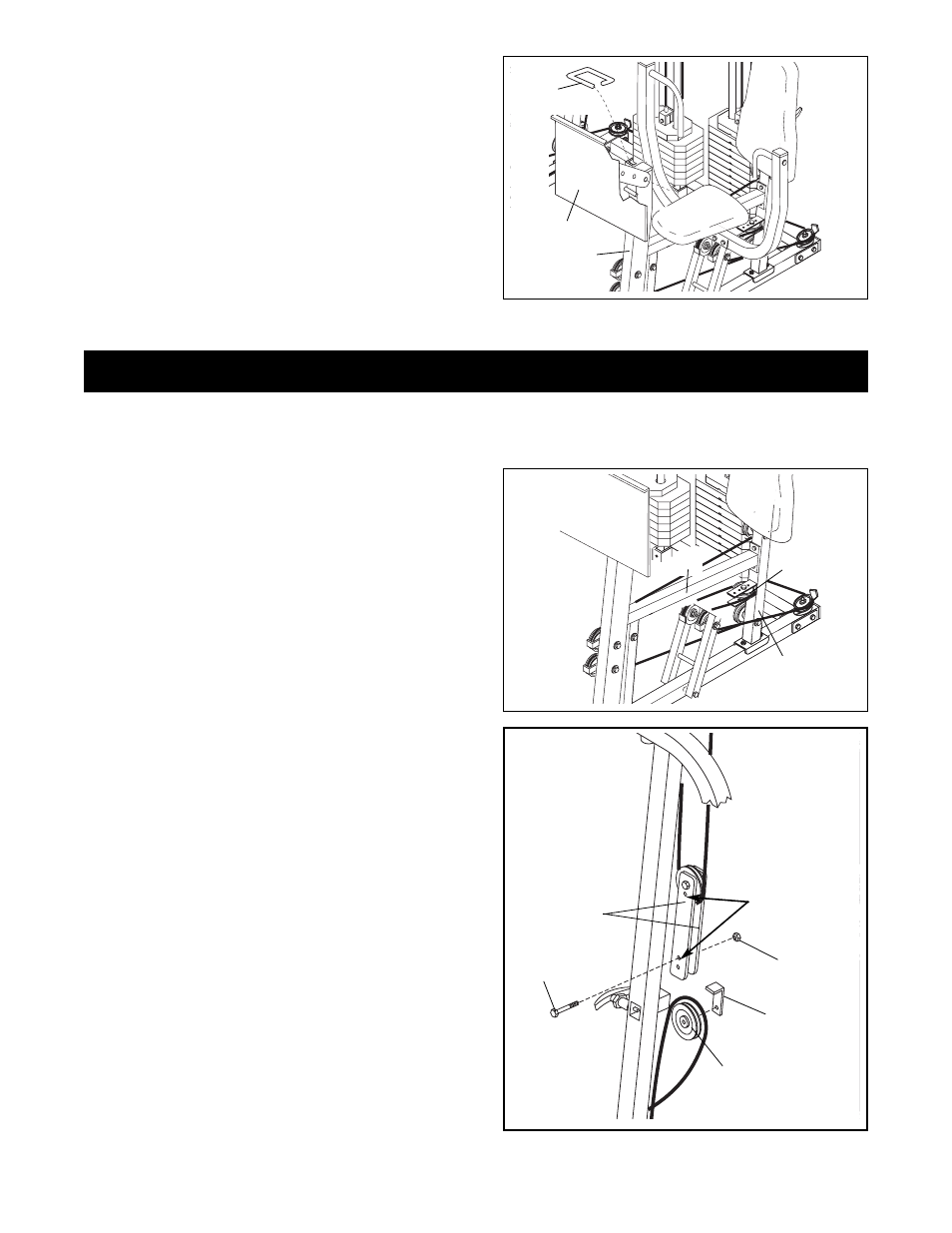

Adjusting the Press Plate
Remove the Lock Pin (22) from the Press Plate (55) and
the Press Front Leg (20).
Align the holes in the Press Plate (55) with the desired
set of holes in the Press Front Leg (20). Re-insert the
Lock Pin (22) through the Press Front Leg and the Press
Plate.
Tightening the Cables
Woven cable, the type of cable used on the weight sys-
tem, can stretch slightly when it is first used. If there is
slack in the cables before resistance is felt, the cables
should be tightened. Slack can be removed from the
cables in several different ways:
A. Move the indicated 3 1/2” Pulley (24) to another set
of holes in the bracket on the Press Upright (2).
Moving the Pulley closer to the Press Upright will
tighten the cables. Moving it further away from the
Upright will loosen the cable.
20
55
22
7
24
2
A
B
