Speaker System: PDP-S55-LR
4.6.3 Installation on the Plasma Display
1) Installation procedure
Install the speaker system according to the steps 1
through 5.
Note:
The speakers are divided into a right (R) and left (L)
speaker. When attaching the speakers, be sure to check
to labels (R/L) located on the rear of the speakers.

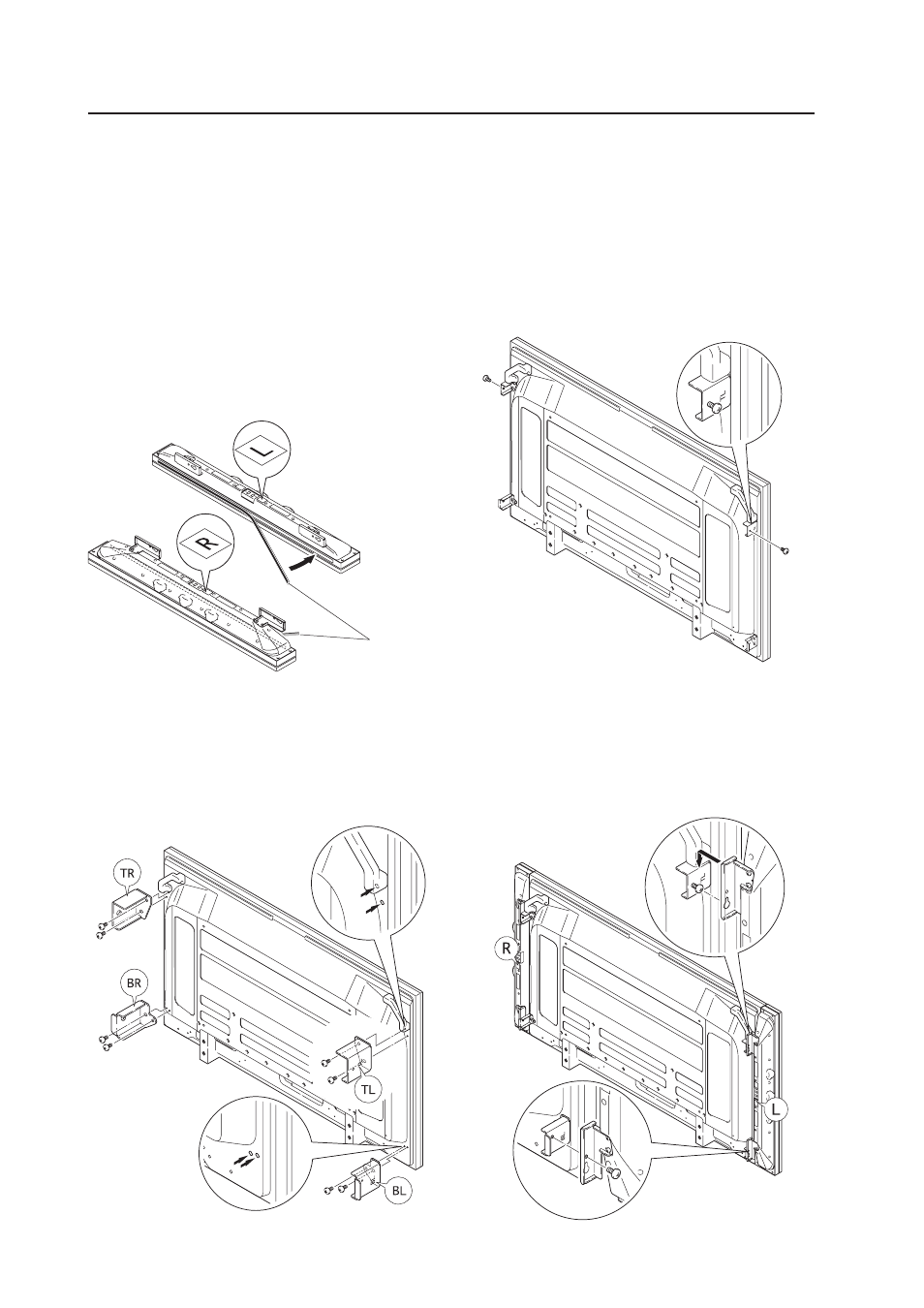

1 Remove the seals from the cushions and then attach
the cushions to the sides of the speakers in the
locations indicated in the diagram below.
Cushions
2 Attaching the attachment pieces to the locations shown
in the drawing of the Plasma Display with screws (M5)
(eight locations).
Check the marks on the attachment pieces (TL, TR,
BL, BR) and the Plasma Display attachment locations.
3 Loosely screwing the screws (M5) into place on the
top attachment pieces (two locations).
Note:
To install the Plasma Display on a wall, first attach the
attachment pieces to the Plasma Display then install it
on the wall. After installing the Plasma Display on the
wall, it may be impossible to tighten the screws on
the attachment pieces.
4 Attaching the screws (M5) that have been loosely
screwed into place on the hooks on top of the speakers.
Loosely screw the screws (M5) into place with the
screw holes on the attachment pieces on the bottom
aligned with the holes in the hooks on the bottom of
the speakers.
