9
RQTV0225
Other
accessories
Stereo phono cable
Left
Right
Coaxial cable
Notes on digital input
This unit can decode the following signals:
Dolby Digital, DTS
PCM, including PCM with sampling frequencies of 96 kHz
or 88.2 kHz
It cannot decode:
Other digital signals, such as MPEG
Dolby Digital RF signals from a laser disc player
•
•
•
•
Optical fibre cable
Use digital connection to enjoy Dolby Digital or DTS.
Do not bend the optical fibre cable.
•
•
• Note
TRANSMITTER
DIGITAL
PUSH PUSH
L R
FRONT
L R
SURROUND
(4 ~ 8 Ω) ( 6 ~ 8 Ω)
SPEAKERS
DIGITAL AUDIO
OUT
VIDEO OUT
VIDEO IN
AUDIO OUT
VIDEO IN
VIDEO OUT
OPT 2
BD/DVR
DVD-P
L
R
IN
L
BD/DVR
IN
DIGITAL AUDIO OUT
COAXIAL
DVD-P
FRONT (L, R)
AUDIO OUT
DIGITAL AUDIO
OUT
AUDIO OUT
L
TV
R
IN
OPT 1
TV
TV DVD player
TV (Monitor)
Coaxial
DVD player
TV (Monitor)
Connect the
video cable
directly to the
TV.
Connect the
video cable
directly to
the TV.
BD player/
DVD recorder
TV, BD player/DVD recorder and DVD player

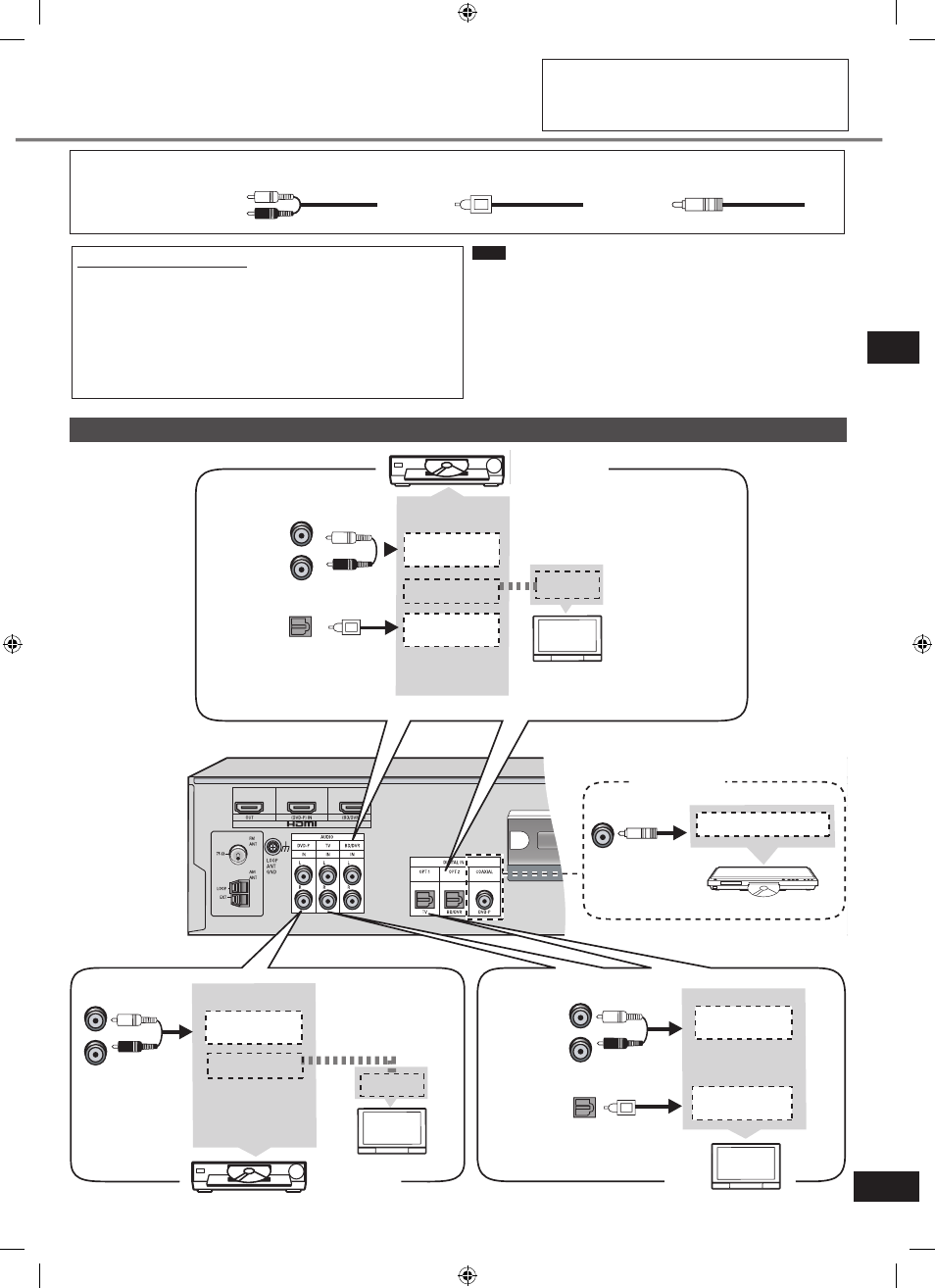

Home theater connections
STEP 2
Turn off all components before making any connections.
Peripheral equipment and cables sold separately
unless otherwise indicated.
To connect equipment, refer to the appropriate
operating instructions.
•
•
•
