Removing and Replacing the Lamp
Follow these instructions to replace the lamp.
•
Remove the lamp unit by the handle. Do not to touch the glass surface of the lamp unit or the inside of the
projector.
•
To avoid injuring yourself and damaging the lamp, carefully follow the steps below.
•
Only loosen the screws for the lamp unit cover and lamp unit.
(Only the silver screws are loosened).

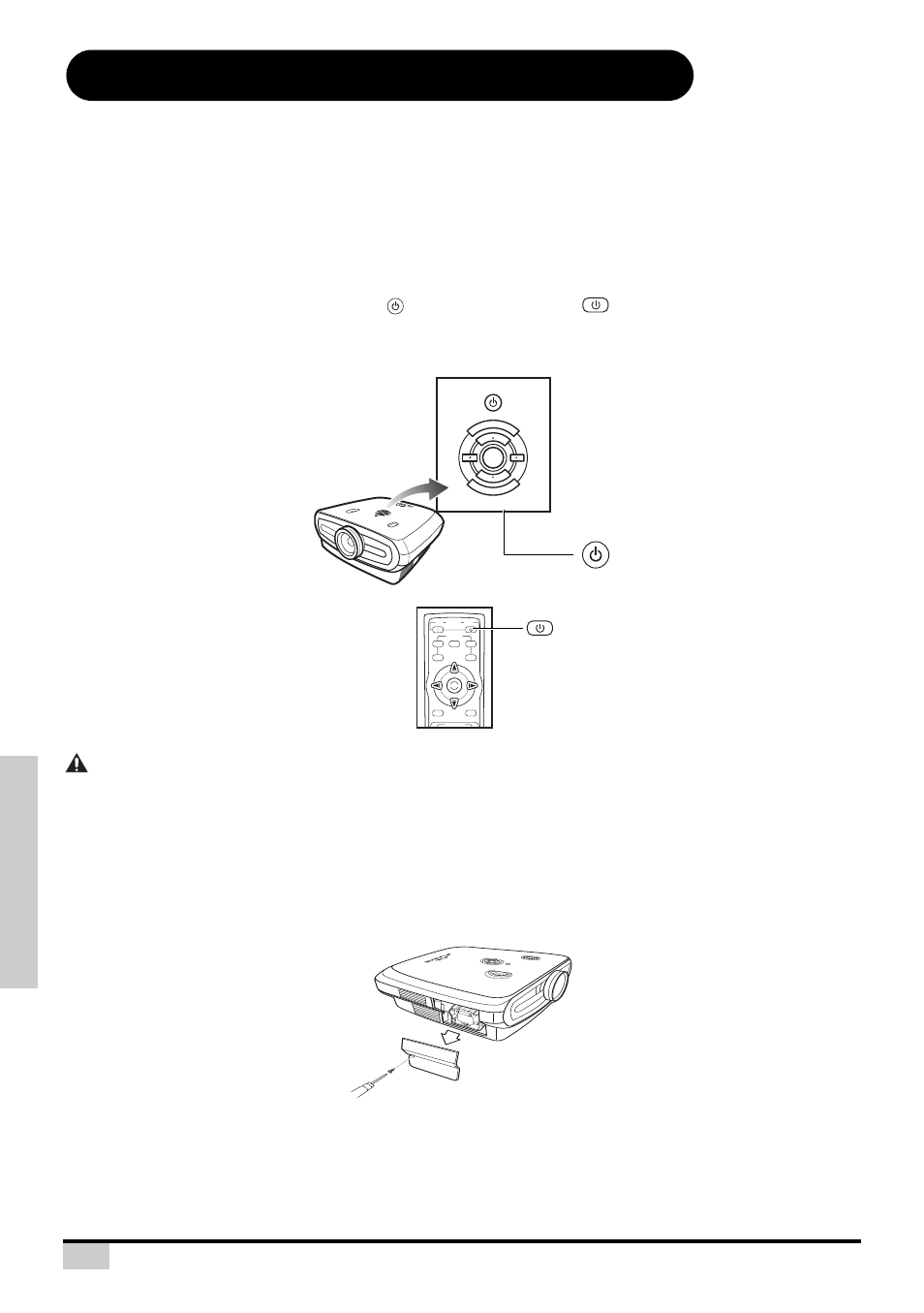

1. If the projector is running, press on the projector or
on the remote control to
turn off the power. Wait until the cooling fan stops.
Warning!
Do not remove the lamp unit from the projector immediately after use. The lamp will be very hot and may
cause injury.
2. Disconnect the power cord and wait at least an hour for the lamp to cool.
3. Remove the lamp unit cover.
•
Loosen the screw that secures the lamp unit cover. Now open the cover in the direction of the arrow.
