Basic Operation
25

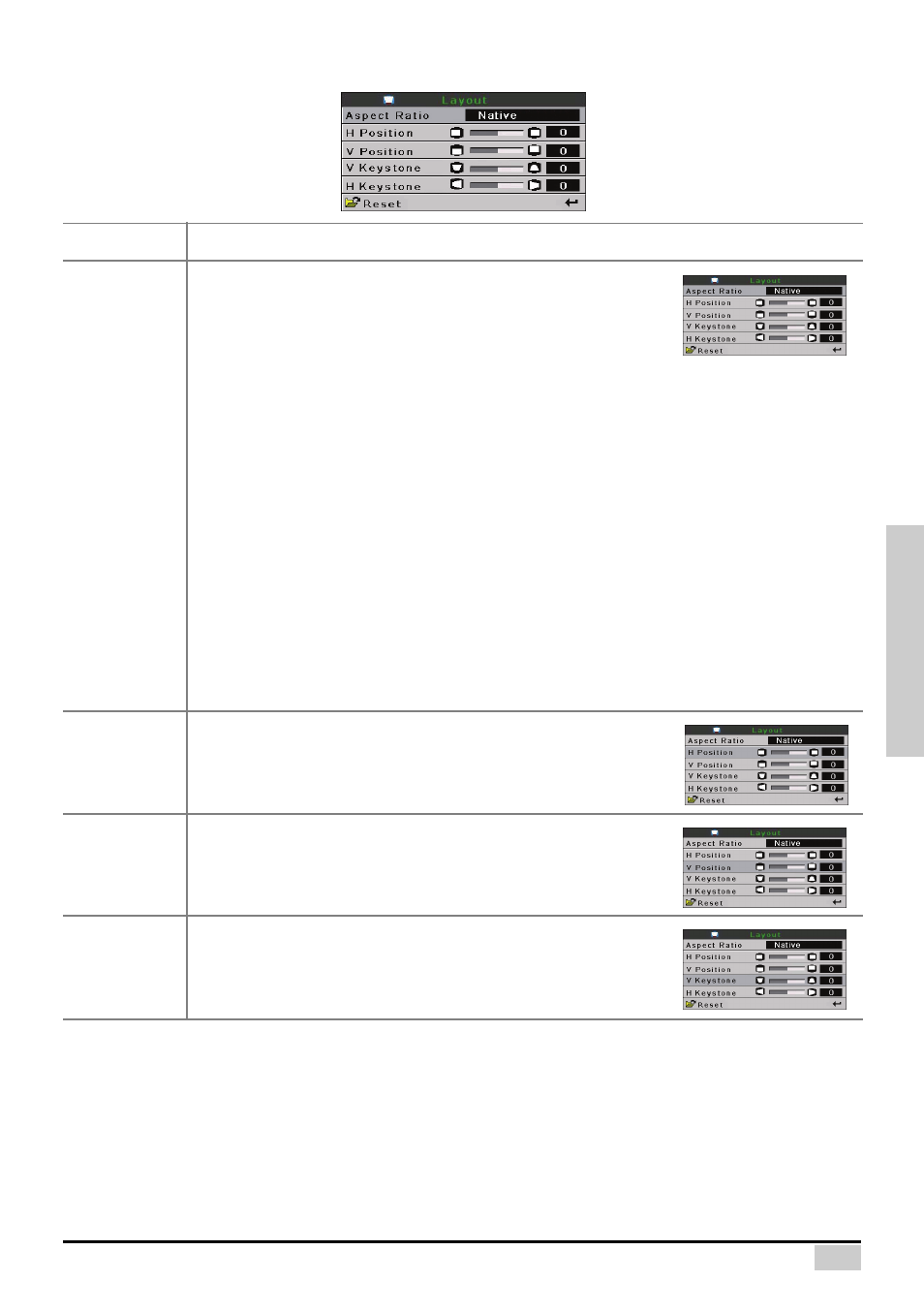

Layout Menu
Item Description
Aspect Ratio
Press W or X button to toggle between the display formats. Select from
4:3, 16:9, LetterBox or Native.
4:3
•
Resolution depends on the input signal
• 4:3 input scaled to fit display height
• Width scaled to maintain 4:3 aspect ratio
• Black bars on left and right (taking up 25% of the whole display)
16:9
•
Resolution: 16:9
• 4:3 input is stretched to fit 16:9 display.
• Stretches entire image.
LetterBox
•
Resolution 1280 x 720
• 4:3 input scaled to fit display width
• Height scaled to maintain 4:3 aspect ratio: 1280 x 960
• 25% of the entire image on the top and bottom is cropped
Native
•
Maintains input signal resolution. May have black borders around image.
For detailed information on Aspect Ratio, please see “Selecting the Picture Display Mode” on
page 27.
H Position
Press W or X button to move the image left or right
V Position
Press W or X button to move the image up or down.
V Keystone
Press W or X button to correct distortion of the projected image.
