12
Co
nnection
s an
d Setup

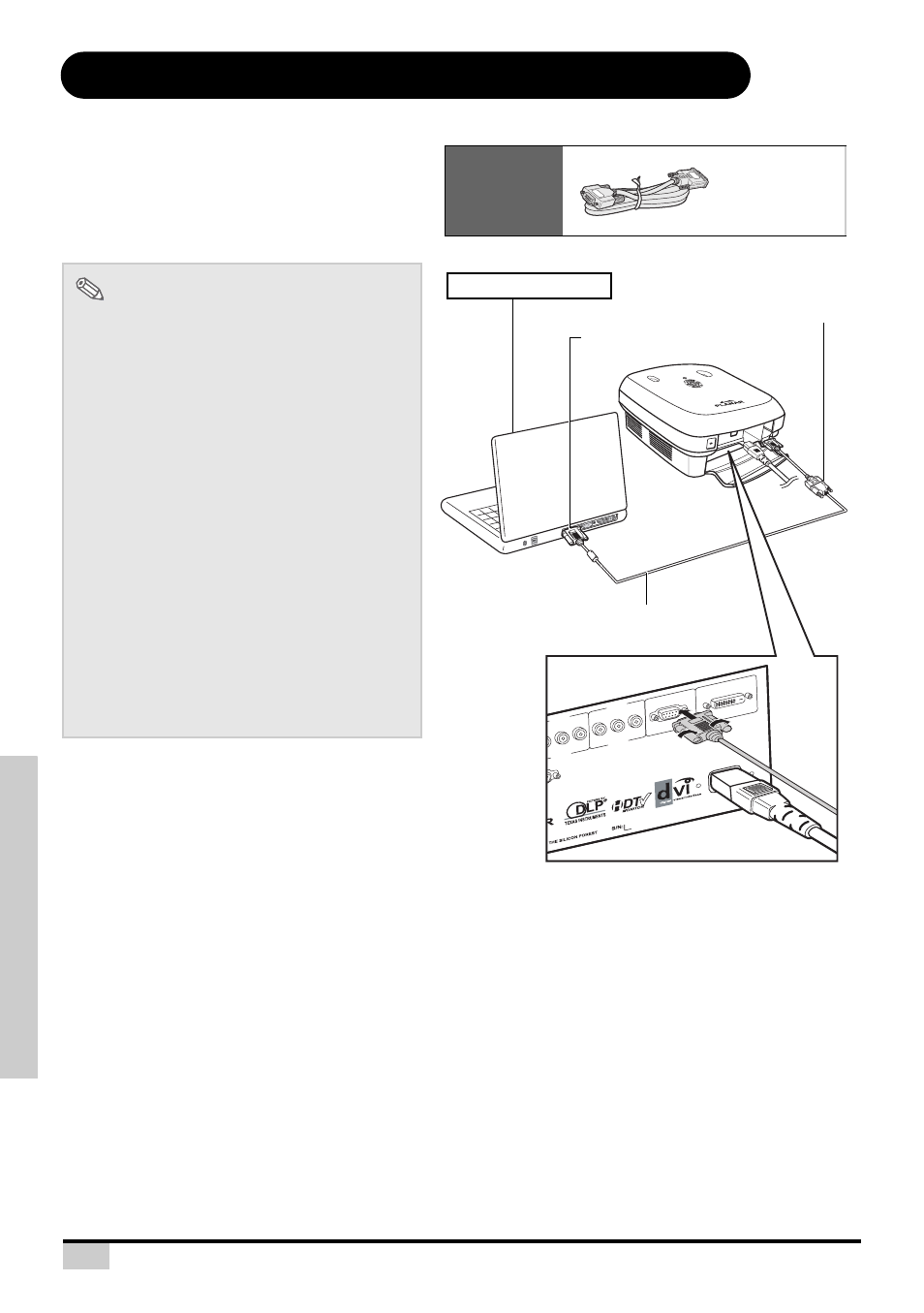

Connecting the Projector to a Computer
Connect the projector to the computer
using an HD 15-pin VGA cable.
• Secure the cable connectors by tightening
the screws on both sides of the plug.
Notes
• See page 39 “Computer Compatibility
Chart” for a list of computer signals
compatible with the projector. Using
computer signals other than those listed
may cause some of the functions not to
work.
• When connecting the projector to a
computer using an HD 15-pin VGA cable,
set the “Input Source” to “PC” in the “Main”
menu, or select RGB mode by pressing the
Source 3 or 4 button on the remote control.
• A Macintosh adaptor may be required for
use with some Macintosh computers.
Contact your nearest authorized service
center or dealer.
• Depending on the computer you are using,
an image may not be projected unless the
signal output setting of the computer is
switched to the external output. Refer to the
computer operation manual for switching
the computer signal output settings.
R P B /C B Y
P R /C R P B /C B
Y
RGB-HD DVI-D
AC1 10-240
AC1 10-240
COMP 1
COMP2
P B /C B
P B /C B P R /C R
P R
CO MP 2
CO MP 1
RGB-HD
DV I-D
Y
Y
RS-232
Optional
accessory
HD 15-pin
VGA cable
To VGA output terminal
Notebook Computer
HD 15-pin VGA cable
(sold separately)
HD 15-pin VGA cable
(commercially available)
