14
Co
nnection
s an
d Setup

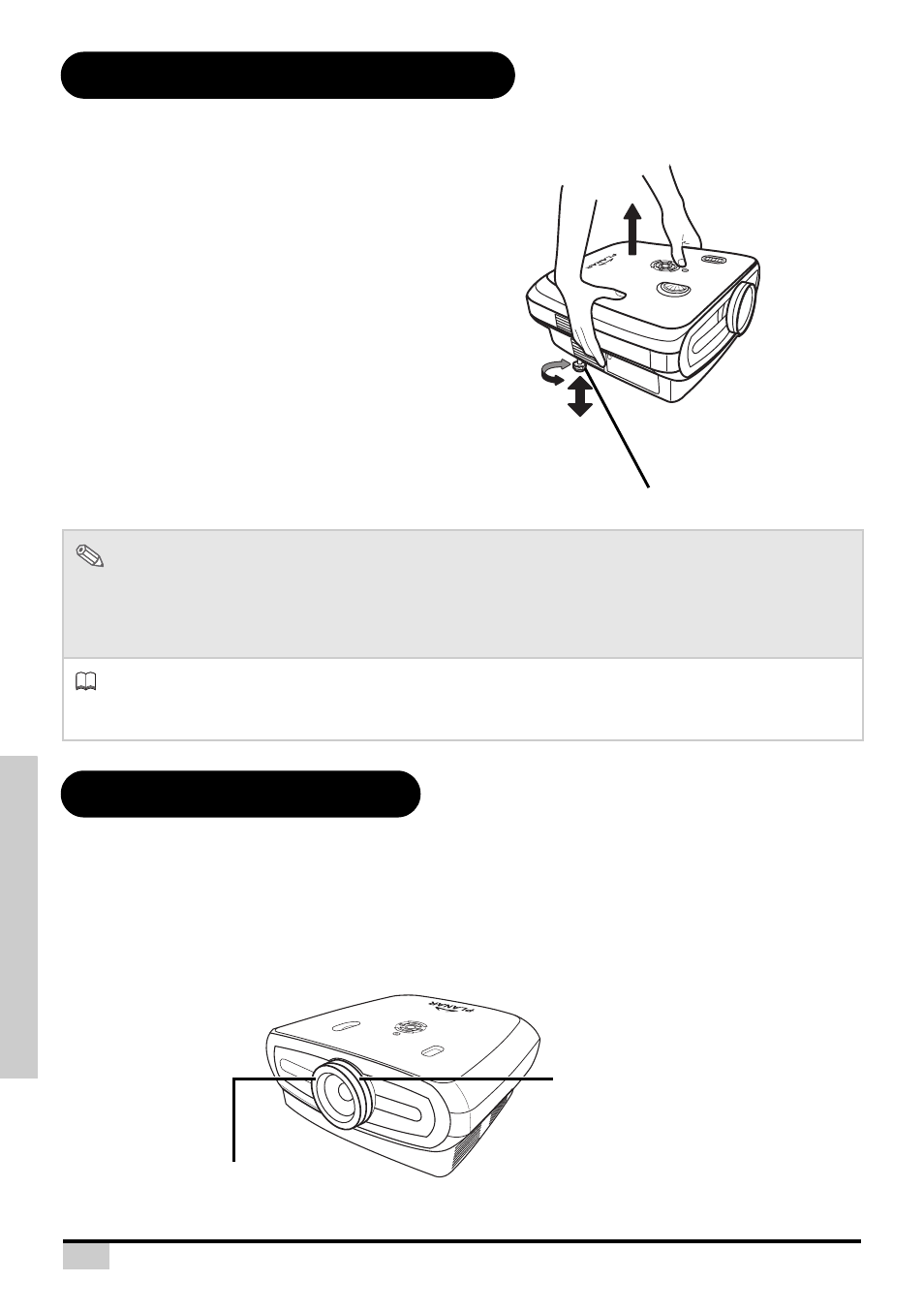

Adjustable Leveling Foot
Adjusting the Lens
Use the adjustable foot to level the projector
when it is placed on an uneven surface or
when the screen is slanted.
The projected image can be made higher by
adjusting the projector when it is lower than
the screen.
1 Hold the projector firmly and screw the
adjustable foot to adjust the projector
to the desired angle.
2 Lift the projector to the desired angle
and screw the adjustable foot to fix the
level.
• If the screen is at an angle, the adjustable
feet can be used to alter the angle of the
image.
Notes
• The projector is adjustable up to approximately 5-degrees from the standard position.
• When the height of the projector is adjusted, the image may become distorted (keystoned), depending on
the relative positions of the projector and the screen. See “Layout Menu” on page 25 for details on
keystone correction.
Info
• When lowering the projector, be careful not to catch your fingers between the adjustment foot and the
projector.
Adjust the lens using the focus and zoom rings to correct the image.
1 Adjust zoom by rotating the zoom ring.
2 Adjust focus by moving the focus ring.
SOUR GE
MENU ENTE R
Adjustable foot
SO UR CE
ME NU
EN TE R
Focus ring
Zoom ring
