10
RQT9056

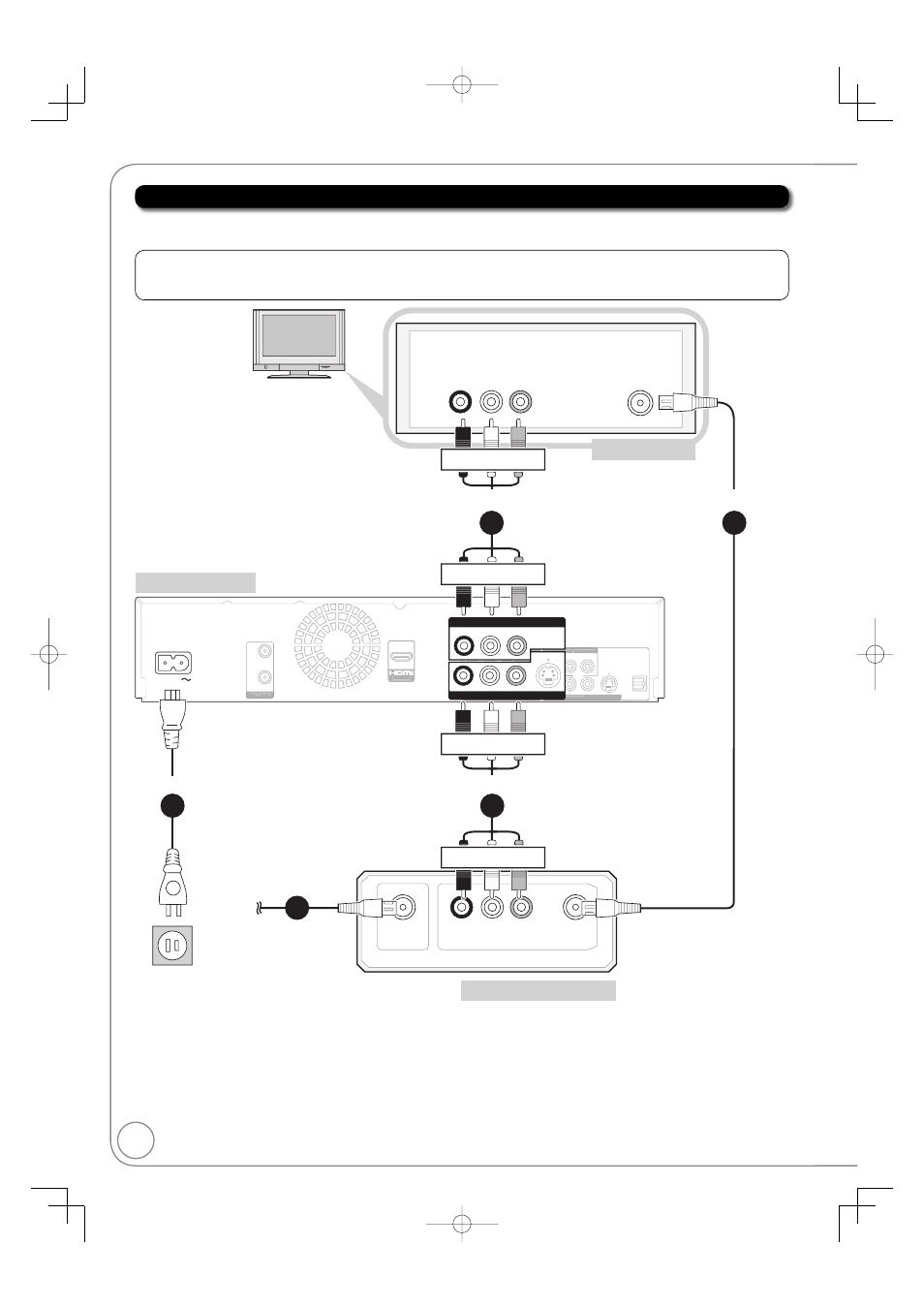

Connecting to a Television and a Satellite Receiver
 75  coaxial cable from the satellite antenna to the “SATELLITE IN” on the satellite
receiver.
 75  coaxial cable (included) from the “RF OUT” on the satellite receiver to the
“VHF/UHF RF IN” on the TV.
 Audio/video cable (included) from the “DVD/VHS COMMON OUT” on the unit to the “AV
IN” on the TV.
 Audio/video cable from the “AV OUT” on the satellite receiver to the “IN1” on the unit.
 AC power supply cord (included) from the “AC IN
” on the unit to a household AC outlet.
 Consult your satellite service provider about the appropriate satellite receiver to use.
 Additional coaxial cable and audio/video (AV) cable are required.
Note: The terminals on the rear of your TV and satellite receiver may not appear as shown below.
Please read terminal labels carefully to ensure correct connections.
VHF/UHF
RF IN
AUDIO IN VIDEO
IN R L
AC IN
OPTICAL
VIDEO R-AUDIO-L
P R P B
DIGITAL AUDIO OUT
(PCM/BITSTREAM)
S VIDEO
VIDEO
VIDEO
R-AUDIO-L
R-AUDIO -L O
( )
COMPONENT VIDEO OUT DVD/VHS COMMON OUT
DVD PRIORITY OUT IN1
DVD/VHS COMMON OUT
VIDEO R-AUDIO-L
VIDEO R-AUDIO -L
S VIDEO
IN1
AUDIO OUT VIDEO SATELLITE
IN
RF OUT
OUT R L
RF
OUT
RF
IN
VHF / UHF
2
1
5
3
4
AV OUT
Satellite
antenna
Rear of satellite receiver
Rear of TV
step
step step
step step
Rear of this unit
Red White Yellow
Red White Yellow
Red White Yellow
Red White Yellow
To a household AC outlet
(AC 120 V, 60 Hz)
Basic Connection
