Editing
Editing with the RS-232C remote control
OUTPUT
INPUT
Using the RS-232C remote control (AJ-A250), which is available as an optional accessory, two
units—a player VTR and a recorder VTR—can be controlled directly from the controller to enable
speedier and more efficient assemble editing, insert editing and other editing jobs.
To RS-232C connector
Player VTR: AJ-D250
Recorder VTR: AJ-D250
RS-232C
remote control
(AJ-A250)
To RS-232C
connector
Read the operating instructions of the AJ-A250 carefully.
Operation:
Use the RS-232C remote control to control both the player VTR and recorder VTR.
Preparation:
O

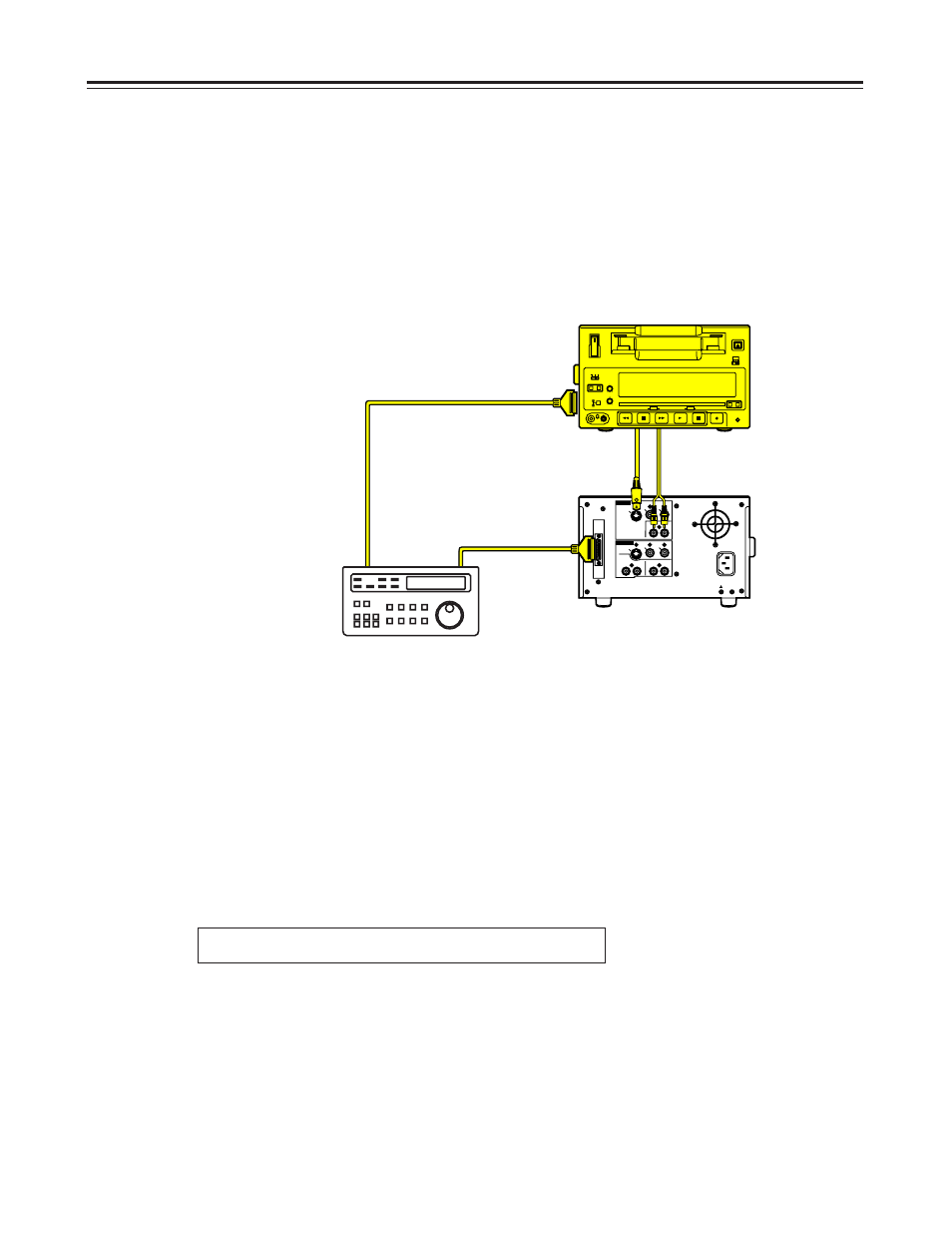

As shown in the figure below, connect the player VTR and recorder VTR to the RS-232C
remote control.
O
Set the INPUT SELECT switch to the position which corresponds to the connection with the
player VTR.
S-VIDEO: When connected to the S-VIDEO IN and AUDIO IN connectors
LINE:
When connected to the VIDEO IN and AUDIO IN connectors
O
Set the LOCAL/MENU/REMOTE switch to the REMOTE position.
The disturbances in the pictures during preview can be alleviated by inputting a black burst
signal or other reference signal to the REF VIDEO input connectors of the player VTR and
recorder VTR.
When the AG-A571 is to be used as the remote control, select D230 as the setup menu item
No.205 “232C ID SEL” setting. (See page 30)
The unit can be used as the player VTR.
