—5—

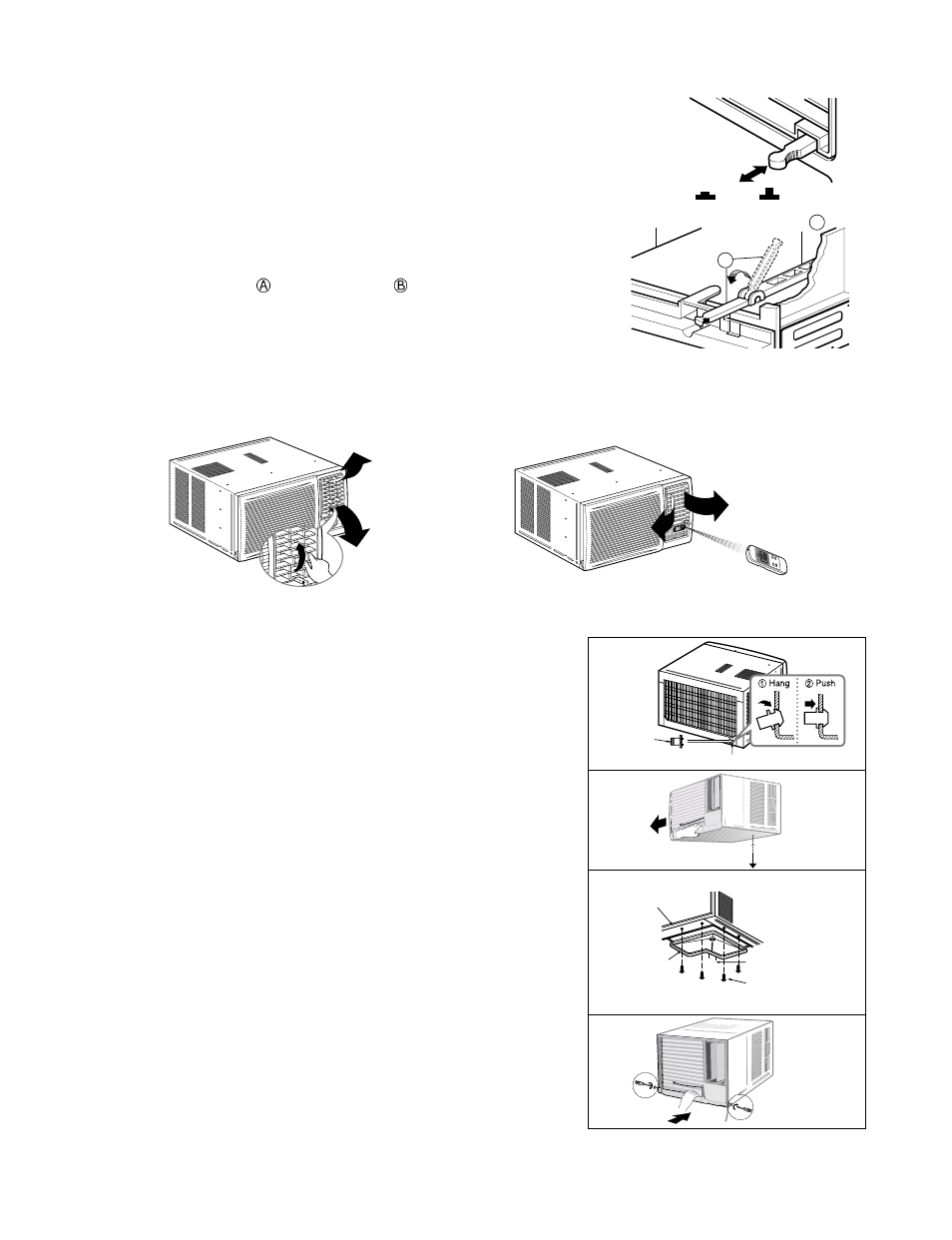

ADDITIONAL CONTROLS AND IMPORTANT INFORMATION.
• VENTILATION
The ventilation lever must be in the CLOSE position in order to maintain the
best cooling conditions.
When fresh air is necessary in the room, set the ventilation lever to the
OPEN position.
The damper is opened and room air is drawn out.
NOTE: Before using the ventilation feature, and prior to installing the front
grille, pull down part
until level with part .
• AIR DIRECTION
The direction of air can be controlled wherever you want to cool by
adjusting the horizontal louver and the vertical louver.
• VERTICAL AIR-DIRECTION CONTROL
The vertical air direction is adjusted by rotating the
horizontal louver forward or backward manually.
The horizontal air direction is adjusted by rotating the
vertical louver right or left by Remote Controller.
• HORIZONTAL AIR-DIRECTION CONTROL
• HOW TO SECURE THE DRAIN PIPE
In humid weather, excess water may cause the BASE PAN to overflow.
To drain the water, remove the DRAIN CAP and secure the DRAIN PIPE
to the rear hole of the BASE PAN. Press the drain pipe into the hole by
pushing down and away from the fins to avoid injury. (See Fig.1)
Optional(CW3H02502C)
1. Remove the rubber plug and slide the chassis out from the cabinet.
(See Fig.2)
2. Install the drain pan over the corner of the cabinet where you removed
the plug with 4 (or 2) screws.(See Fig.3)
3. Connect the drain hose to the outlet located at the bottom of the drain
pan. You can purchase the drain hose or tubing locally to satisfy your
particular needs. (Drain hose is not supplied). (See Fig.3)
4. Select the most appropriate connection from among the figures to the
right (by considering the hole of the unit) to fit drain pan to your own
unit. (See Fig.3)
5. Slide the chassis back into the cabinet. Reinstall the cabinet screws.
Secure the cabinet to chassis by using screws. (See Fig.4)
VENT
CLOSE
OPEN
Part A
Part B
Drain pipe
Drain cap
Fig. 4
Fig. 3
Fig. 2
OFF/ON
OPERATIO
N
TEMP/TIMER
COOL
FAN
HIGH
MED
LOW
MODE
FAN SPEE
D
SET
TIMER
SET/
CANCEL
AIR SWING
ECONOMY
hr
F
Wireless
R emote C
o ntrol
Remove the
rubber plug
OFF
/ON
OPER
ATIO
N
TE P
/TI
COO
L
FAN
HIGH
MED
LOW
MO
E
FAN
SPEE
D
SET
TIME
R
SET/
C N
E
AIR
ECO
NOM
Y
F
Wirel
ess
R e m
o t e C
o n t r
o l
DRAIN HOSE
Inside diameter 17mm (5/8")
DRAIN
PAN
CABINET
SCREW
