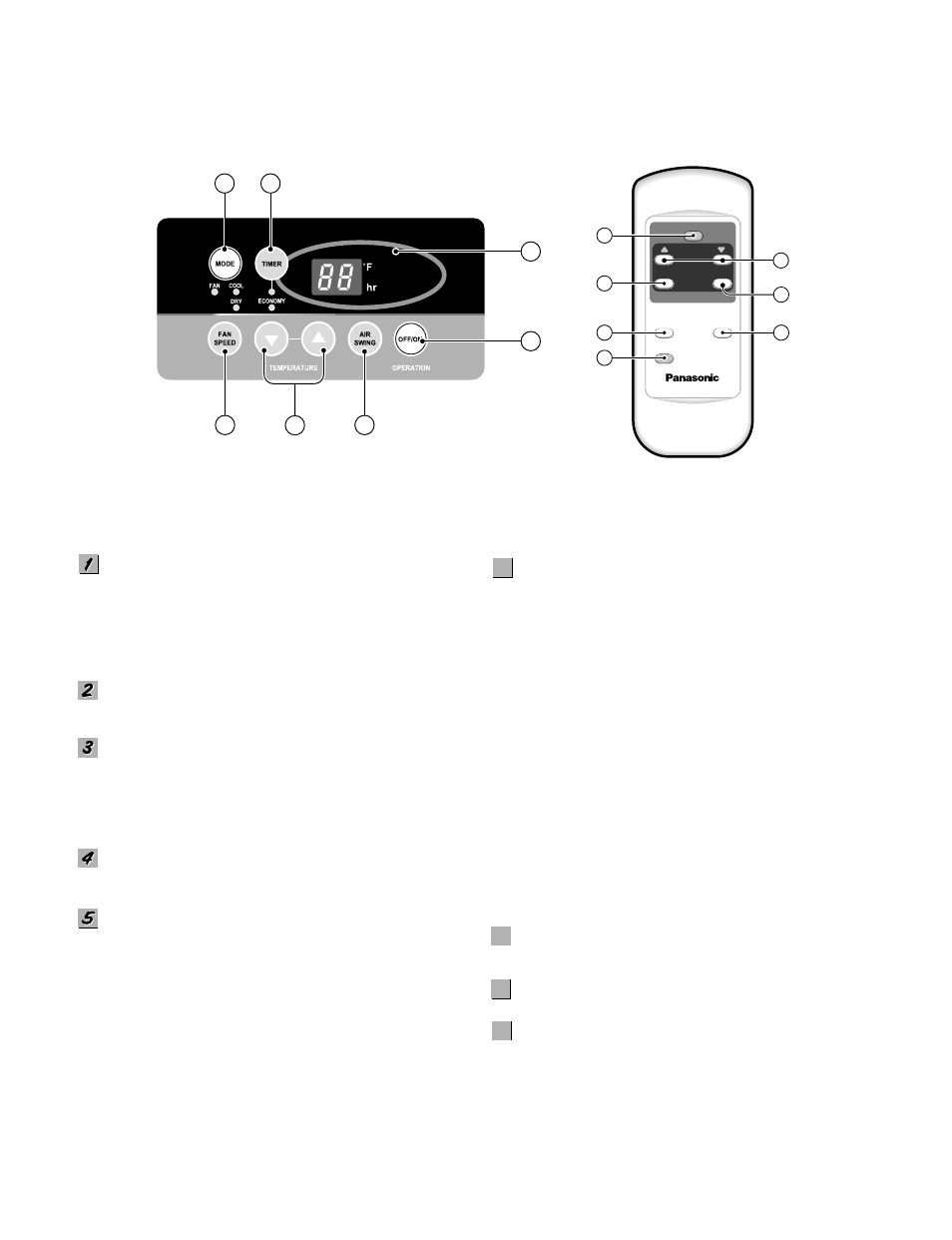

1.4 ABOUT THE CONTROLS ON THE AIR CONDITIONER
Models: CW-XC184HU, CW-XC244HU
—4—
OPERATION BUTTON
• To turn the air conditioner ON, push the button. To turn
the air conditioner OFF, push the button again.
• This button takes priority over any other buttons.
• When you first turn it on, the air conditioner is on the
High cool mode and the temp. at
72°F (22°C)
OPERATION MODE SELECTION BUTTON
Every time you push this button, it will toggle between
COOL, ECONOMY, FAN, DRY.
ROOM TEMPERATURE SETTING BUTTON
This button can automatically control the temperature of
the room. The temperature can be set within a range of
60°F to 86°F by 1°F. (16°C to 30°C by 1°C)
Select the lower number for lower temperature of the
room.
FAN SPEED SELECTION BUTTONS
Every time you push this button, it is set as follows.
{High(F3)
→ Low(F1) → Med(F2) → High(F3)...}.
ECONOMY
• If you push this button, the fan stops when the
compressor stops cooling. Approximately every 3
minutes the fan will turn on and check the room air to
determine if cooling is needed.
ON/OFF TIMER BUTTON
You can set the time when the unit will turn on or turn off
automatically by pressing the timer button. If the unit is
operating, this button controls the time it will be turned
off. If the unit is in off state, this button controls the time
it will start. Every time you push this button, the
remaining time will be set as follows.
- STOPPING OPERATION
• Every time you push this button, when the air
conditioner is operating, timer is set as follows.
(1Hour
→ 2Hours → 3Hours → 4Hours → 5Hours →
6Hours → 7Hours → 8Hours → 9Hours → 10Hours →
11Hours → 12Hours → 0Hour → 1Hour → 2Hours → ...)
• The Setting Temperature will be raised by 2°F(1°C)
30min. later and by 2°F(1°C) after another 30 min.
- STARTING OPERATION
• Every time you push this button, when the air
conditioner is not operating, timer is set as follows.
(1Hour
→ 2Hours → 3Hours → 4Hours → 5Hours →
6Hours → 7Hours → 8Hours → 9Hours → 10Hours →
11Hours → 12Hours → 0Hour → 1Hour → 2Hours → ...)
AIR SWING BUTTON
This button can automatically control the air flow
direction.
REMOTE CONTROL SIGNAL RECEIVER
DRY
When this unit is in dry mode, the fan rotates in low
speed. The fan stops when the compressor stops
cooling.
Approximately every 3 minutes the fan will turn on and
the unit checks the room air temperature to set itself.
7 7
6 6
8 8
9 9
Precaution: The Remote Controller will not function properly if strong light strikes the sensor window of the air
conditioner or if there are obstacles between the Remote Control unit and the air conditioner.
