Extend and stick the IR sensor extender
cable onto the front side of your HDTV.
Note
• The IR blaster support 47KHz remote signal protocol,
while the IR sensor supports 36KHz - 56KHz (NEC,
RC5, RC6) remote signal protocol.
Install remote control
batteries
Caution
• Risk of explosion! Keep batteries away from heat,
sunshine or fire. Never discard batteries in fire.
•
Risk of decreased battery life! Never mix different
brands or types of batteries.
• Risk of product damage! When the remote control is
not used for long periods, remove the batteries.
AAA
AAA
1
Open the battery compartment.
2
Insert two AAA batteries with correct
polarity (+/-) as indicated.
3
Close the battery compartment.
Connect the IR blaster and IR
sensor extender cables
Tip
• If you cannot use the remote control of your device,
follow the steps in this section to connect the sensor
extender cables .

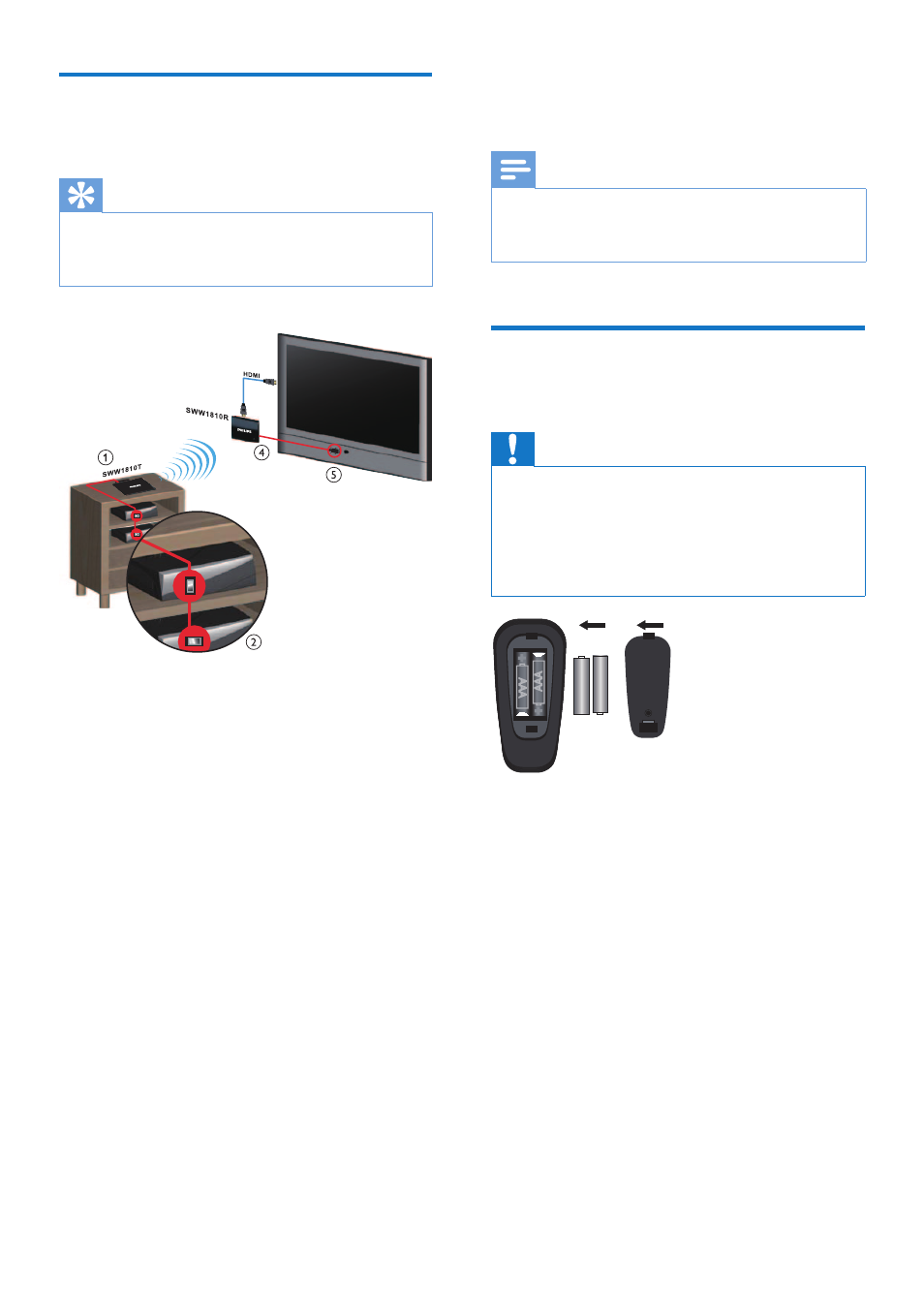

Connect the infrared blaster or sensor extender
cables if necessary.
1
Plug the IR blaster extender cable into
the IR OUT blaster extender jack of the
transmitter.
2
Extend and stick the IR blaster extender
cable onto the front panel of the HD
device.
3
After the IR blaster extender cable is
connected to the transmitter, you can
control your HD device with the remote
control. Make sure that the remote control
points to the receiver.
4
If the distance between the receiver and
receiver has obstruction (e.g. the receiver
is mounted at the back of the HDTV), plug
the IR sensor extender cable into the IR
IN jack of the receiver.
