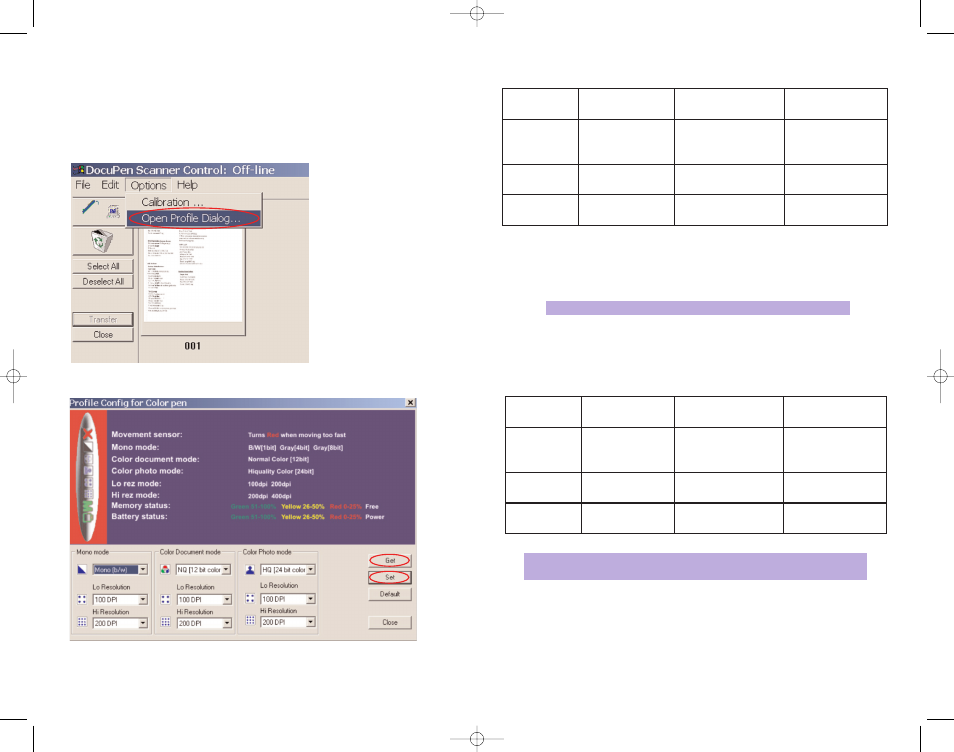

DocuPen Scan modes - Profile Configurator

You can setup the exact values of the color and resolution modes, using the interactive

Profile Configurator dialog box. The Profile Configurator dialog is part of the

DocuPen Scanner Control window and can be started by selecting the Open Profile

Dialog.. from the pull-down menu in the DocuPen Scanner Control window.

In the Profile Configurator dialog you can choose from: (See table on following page)

DocuPen Operation Manual 22

Scan mode - Profile Configurator (continued)

You can select the desired values from the corresponding pull-down menus in the

Profile Configurator dialog. When desired selection is completed, you can press the

Set button. You will be prompted to turn the DocuPen ON and then the values will be

transferred to the DocuPen.

You can also check the current values in your DocuPen by selecting the Get button.

You will be then prompted to turn the DocuPen on and then the value will be displayed

in the corresponding cell.

By clicking the Default button the values will be automatically set to:

When desired color and resolution values are set and uploaded to DocuPen you can

close the Profile Configurator dialog. Click the Close button within the Profile

Configurator dialog box and resume your scanning operation.

DocuPen Operation Manual 23

Note:

Your DocuPen must be

CONNECTED

to your PC

Mono Mode

Standard Color

Document Mode

Hi-Color

Photo Mode

Color Depth

Mono [b/w 1Bpp]

Grayscale [4Bpp]

Grayscale [8Bpp]

Docu Color [12bit]

Photo Color [24bit]

Standard

Resolution

100 or 200 dpi

100 or 200 dpi

100 or 200 dpi

Hi Resolution

200 or 400 dpi

200 or 400 dpi

200 or 400 dpi

Mono Mode

Standard Color

Document Mode

Hi-Color

Photo Mode

Color Depth

Mono [b/w]

Docu Color [12bit] Photo Color [24bit]

Standard

Resolution

200 dpi

100 dpi

100 dpi

Hi Resolution

400 dpi

200 dpi

200 dpi

Note:

You must click on the Set button after every manipulation of the

data. Only then will the data be transferred and saved into the DocuPen!

RC810 850 Operating Manual:opman_eng_rc800_022006_eng.qxd 05/06/2008 9:30 AM Page 14
