Connecting camcorder/ Video game
Connecting DVD
Watching Camcorder

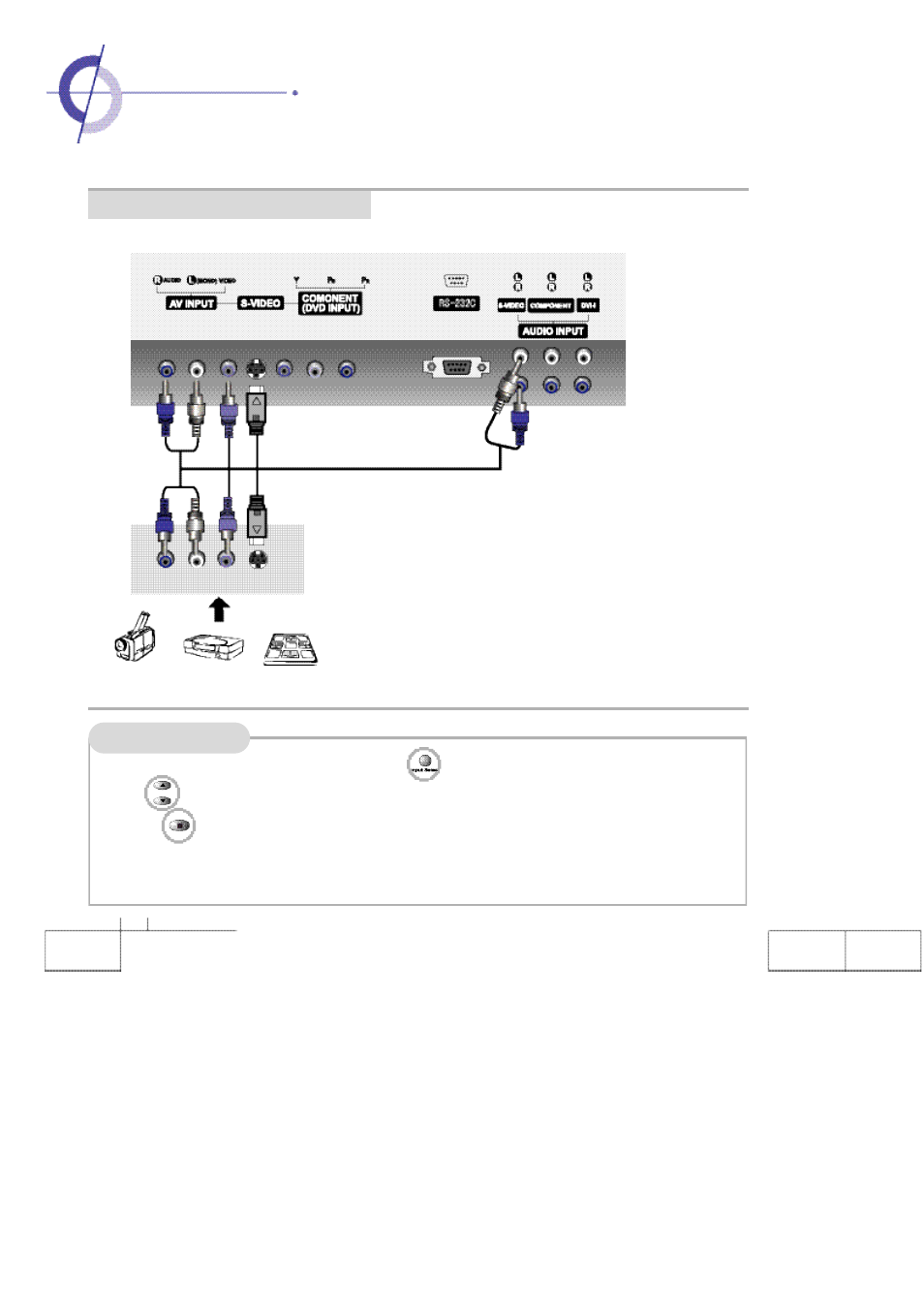

Connecting camcorder/ game machine
Use after connecting the Video game in the same way as a camcorder.
Connecting composite video
Connect Video/Audio connection line to Composite [(yellow is for
Videowhite is for Audio (left, red is for Audio (right)] and Video/Audio
output terminal of camcorder.
Connecting S-Video terminal (If the game machine contains
S-image terminal.)
(Use S-Video connection line for better image.)
Connect S-Video connection line to S-Video terminal and S-Video termi-
nal of game machine.
Connect Audio connection line to PDP S-Video Audio input terminal and
Audio output terminal of the game machine.
1. Turn on the PDP monitor and press input selection button of the remote control.
2. Use button to select composite or S-video (When it is connected to S-video terminal) and then
press button. (When selecting S-Video, Audio should be connected to S-Video Audio terminal.)
3. Turn on the camcorder and set to video mode. (Please refer to camcorder user's manual for more information.)
4. Set input/output selection switch of camcorder to output.
5. Insert tape into camcorder and press Playback button.
