2. Installation
14
2 Installation Base Unit
2.1 Ink film installation /
replacement
The included film roll is a starter ink film.
Important:
L Remove all blue shipping tape from the
unit before installation.
2.1.1 Installing the ink film
The included film roll is a starter ink film.

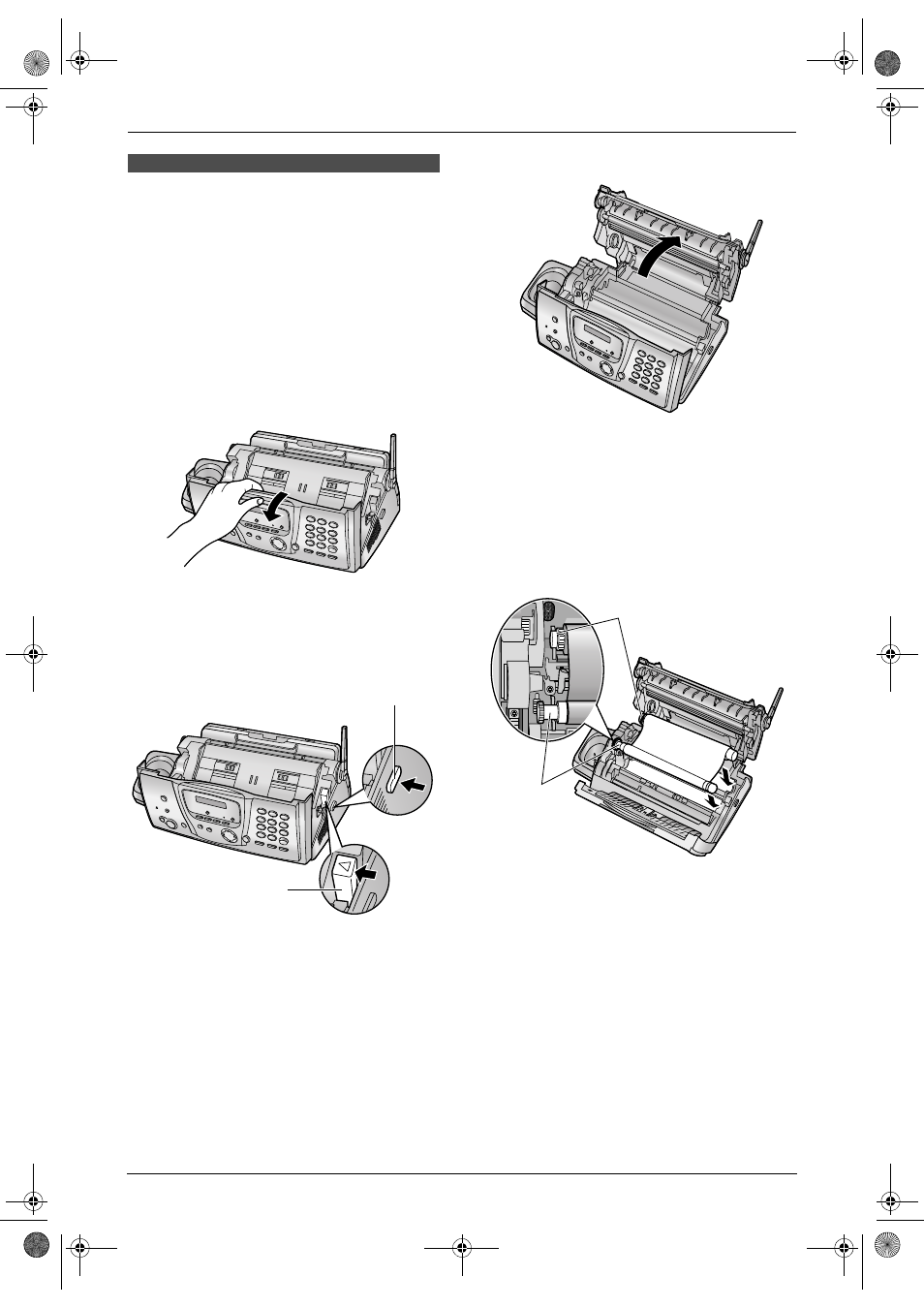

1 Open the front cover by pulling up the centre
part.
2 Release the back cover by pushing the green
button (
1).
L You can also release the back cover by
pushing in the green lever (
2).
3 Open the back cover.
4 Insert the front ink film roll by inserting its
blue gear into the left slot of the unit (
1).
Insert the rear ink film roll by inserting its
white gear into the left slot of the unit (
2).
L The ink film is safe to touch and will not
rub off on your hands like carbon paper.
L Make sure the blue gear (
1) and white
gear ( 2) are installed as shown.
2
1
2
1
