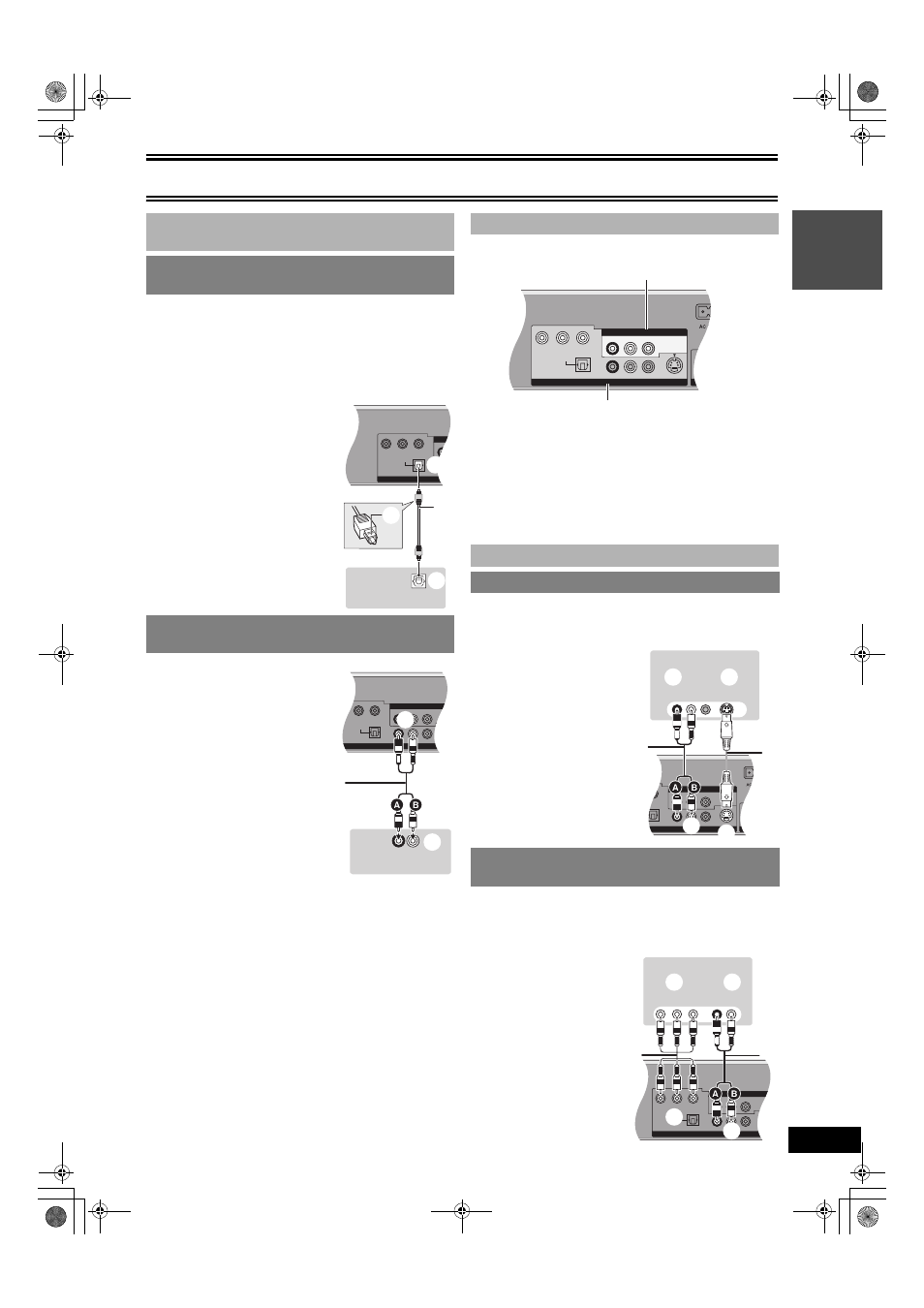

Getting started
15
VQT0N92
DVD only
≥Connect an amplifier with a built-in Dolby Digital or DTS decoder.
( l 7)
≥Change the settings in “Digital Audio Output”. ( l 44)
≥You cannot use any amplifier with a DTS Digital Surround decoder
not suited to DVD.
≥Even if using this connection, output will be only 2 channels when
playing DVD-Audio
DVD only
The unit has DVD/VHS COMMON output terminals and DVD output
terminals.
DVD/VHS COMMON OUT
≥For DVD/VHS COMMON output terminals, both DVD and VHS
signals can be output.
DVD OUT
≥This is the dedicated terminal to enjoy pictures played on DVD in
higher picture quality. ( l below)
≥The DVD output terminals can only output the DVD signal. If your
TV is connected to the DVD output terminals, the VHS picture is
not displayed on your TV unless you select the TP channel (
l 58).
DVD only
S-VIDEO OUT terminal
The S-VIDEO OUT terminal achieves a more vivid picture than the
VIDEO OUT terminal. (Actual results depend on the TV.)
DVD only
COMPONENT VIDEO OUT terminal
These terminals can be used for either interlace or progressive output
(
l 64) and provide a purer picture than the S-VIDEO OUT terminal.
≥Connect to terminals of the same color.
∫ Connecting an amplifier or system
component
1 To enjoy multi-channel surround sound on
DVD-Video (digital connection)
1 Connection to a stereo amplifier
(analog connection)
R - AUD
R - AUD
COMPONENT VIDEO OUT (480p/480i)
Y P B P R
OPTICAL
DIGITAL AUDIO OUT (PCM/BITSTREAM)
DVD OUT
OPTICAL IN
(1)
(3)
(4)
(5)
(2)
A
(1) Rear panel of the unit
(2) Optical digital output terminal
(3) Optical digital audio cable
(not supplied)
A Insert fully, with this side
facing up. (Do not bend when
connecting.)
(4) Optical digital input terminal
(5) Amplifier’s rear panel
R - AUDIO - L VIDEO
R - AUDIO - L VIDEO S VIDEO
DVD/VHS COMMON OUT
COMPONENT VIDEO OUT (480p/480i)
Y P B P R
OPTICAL
GITAL AUDIO OUT
CM/BITSTREAM)
DVD OUT
(5)
(2)
(3)
(1)
(4)
R L
AUDIO IN
(1) Rear panel of the unit
(2) Audio output terminals (L/R)
(3) Audio cable (not supplied)
A Red (R)
B White (L)
(4) Audio input terminals (L/R)
(5) Amplifier’s rear panel
∫ DVD output and DVD/VHS output
∫ To enjoy even higher fidelity
1 Connection to the S-VIDEO IN terminal
1 Connection to the COMPONENT VIDEO IN
terminals
R - AUD
R - AUDIO - L VIDEO
R - AUDIO - L VIDEO S VIDEO
DVD/VHS COMMON OUT
COMPONENT VIDEO OUT
(480p/480i)
Y P B P R
OPTICAL
DIGITAL AUDIO OUT
(PCM/BITSTREAM)
DVD OUT
DVD/VHS COMMON output
DVD output
R - AUDIO -
R - AUDIO - L VIDEO
R - AUDIO - L VIDEO S VIDEO
DVD/VHS COMMON OUT
NENT VIDEO OUT (480p/480i)
P R
DVD OUT (5)
(3)
(1) (2)
(7)
(6)
S VIDEO IN
AUDIO IN
VIDEO IN
(4)
R L
(1) Audio input terminals (L/R)
(2) S-Video input terminal
(3) Audio cable (not supplied)
A Red (R)
B White (L)
(4) S-Video cable (not
supplied)
(5) Rear panel of the unit
(6) Audio output terminals (L/R)
(7) S-Video output terminal
TV
R - AUDIO - L VIDEO
R - AUDIO - L VIDEO S VIDEO
DVD/VHS COMMON OUT
COMPONENT VIDEO OUT (480p/480i)
Y P B P R
OPTICAL
DIGITAL AUDIO OUT (PCM/BITSTREAM)
DVD OUT (5)
(3)
(4)
COMPONENT
VIDEO IN
AUDIO IN
(1) (2)
(6)
(7)
R L
(1) Component input terminals
(2) Audio input terminals (L/R)
(3) Component video cable
(not supplied)
(4) Audio cable (not supplied)
A Red (R)
B White (L)
(5) Rear panel of the unit
(6) COMPONENT VIDEO OUT
terminals
(7) Audio output terminals (L/R)
TV
