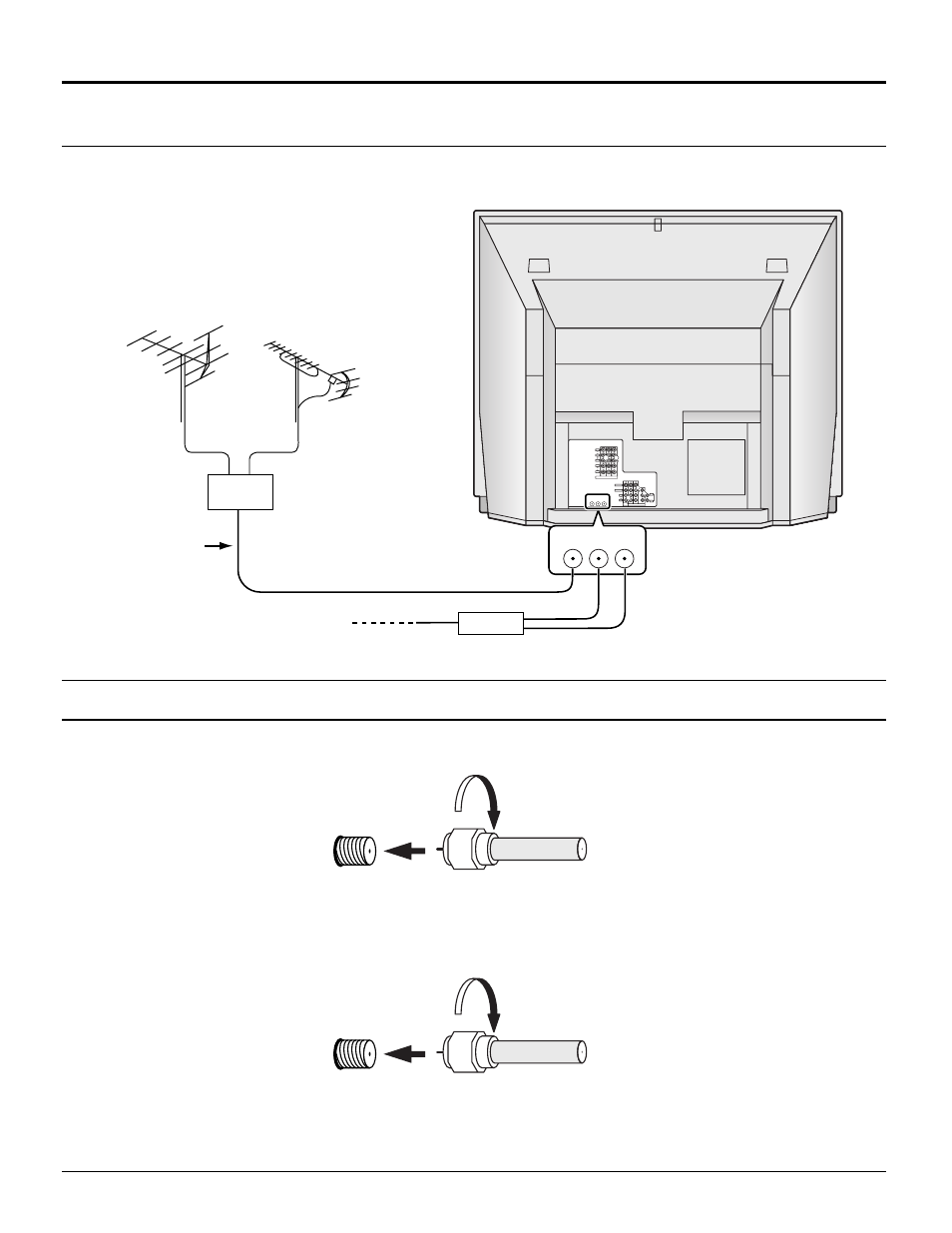

Antenna / Cable Connection
Incoming Cable From Home Antenna (75
Ω
)
VHF / UHF
on Back of Set
Cable Connection - For reception of cable channels (01 - 125) connect the cable supplied by your local cable company.
Antenna Mode must be set to CABLE. (Refer to Antenna Mode section.)
Incoming 75
Ω
Cable (From Cable Company)
VHF / UHF
on Back of Set
Note:
Certain cable systems offset some channels to reduce interference or have Premium (scrambled) channels. A cable
converter box is required for proper reception. Check with your local Cable company for its compatibility requirements.
Connecting the Antenna Cable to the RF In Terminal
TO
AUDIO
AMP L
R
AUDIO
VIDEO
S-VIDEO
L
R
AUDIO
VIDEO
L
PR
PB
Y
R
INPUT
ANT1 ANT2 SPLIT OUT
COMPONENT VIDEO INPUT
PROG
OUT 2 1 3
2 1 3
ANT1 ANT2 SPLIT
OUT
UHF Antenna
RF In Terminal
VHF Antenna
Mixer
Coaxial Antenna Plug
Cable Box
Antenna Connection - For proper reception of VHF / UHF channels, an external antenna is required. For best reception
an outdoor antenna is recommended. Antenna Mode must be set to projection TV.
Installation
75
Ω
Coaxial Cable
