Before using
19
VQT1F36

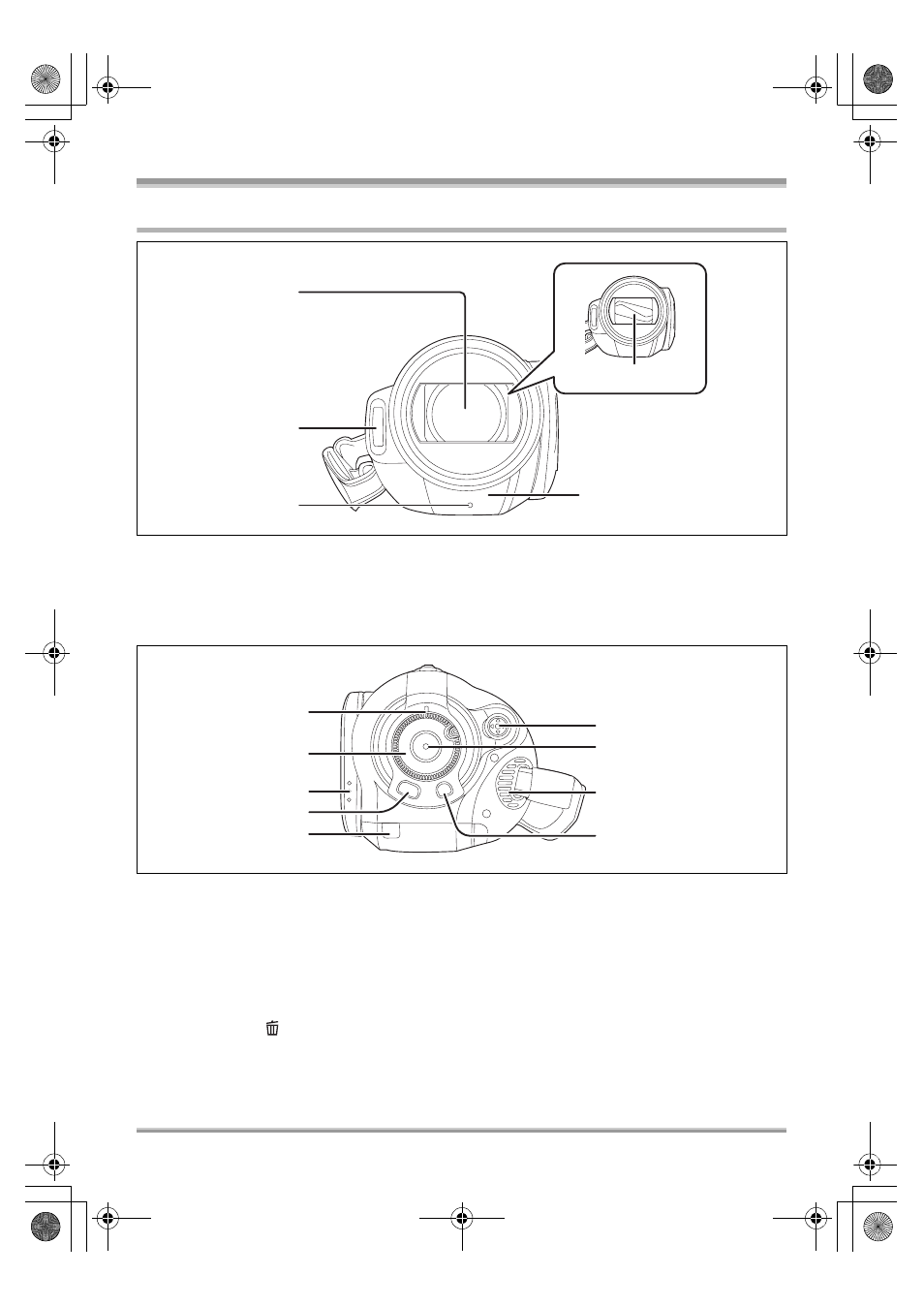

Parts identification and handling
1) Lens (LEICA DICOMAR)
2) Built-in flash for still pictures only (l 57)
3) Recording lamp (l 107)
4) White balance sensor/remote control sensor (l 25, 66)
5) Lens cover
6) Status indicator (l 32)
7) Mode dial (l 32)
8) LCD monitor open latch (l 24)
9) Menu button [MENU] (l 39)
10) Battery cable cover (l 22)
11) Cursor button (l 35)
12) Recording start/stop button (l 45)
13) Cooling fan (inlet)
14) Delete button [
] (l 74, 76)
ª About the cooling fan
≥The cooling fan rotates to prevent the internal temperature rising. Take care not to cover the inlet and
outlet when using this unit.
1
2
3
4
5
11
13
14
12
6
7
8
9
10
