Chapter 4:
Controls and displays

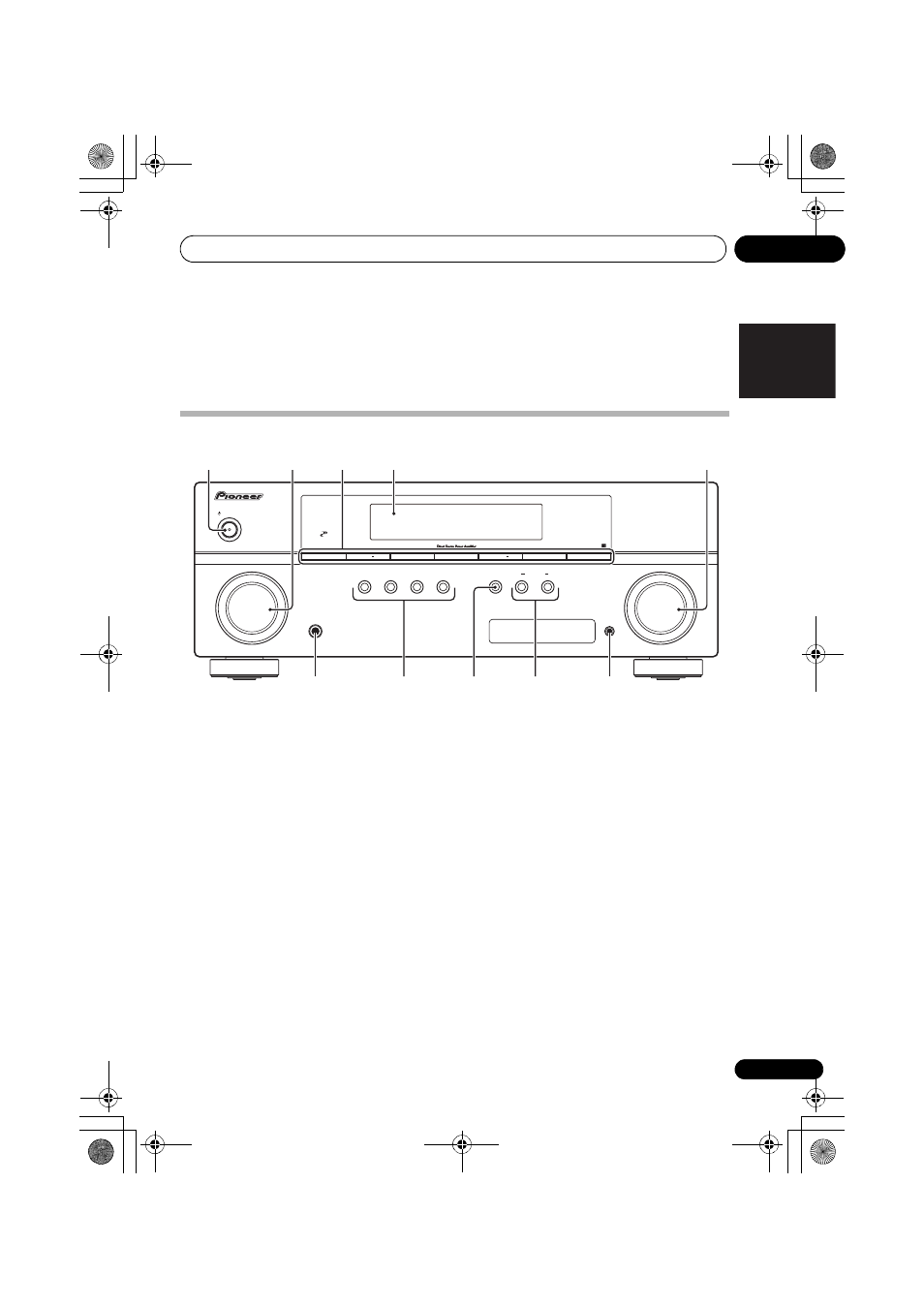

Front panel
1  STANDBY/ON
2 INPUT SELECTOR dial
Selects an input source.
3 Tuner control buttons
BAND
Switches between AM, FM ST (stereo) and
FM MONO radio bands (page 40).
TUNE +/–
Used to find radio frequencies (page 40).
TUNER EDIT
Use with TUNE +/–,
PRESET +/– and
ENTER to memorize and name stations for
recall (page 40, 41).
PRESET +/–
Use to select preset radio stations
(page 40).
4 Character display
See Display on page 23.
5 MASTER VOLUME dial
6 PHONES jack
Use to connect headphones (page 34).
7 Listening mode buttons
AUTO SURROUND/STREAM DIRECT
Switches between Auto surround mode
(Auto playback on page 28) and Stream
Direct playback. Stream Direct playback
bypasses the tone controls for the most
accurate reproduction of a source
(page 30).
STEREO/A.L.C.
Switches between stereo playback, Auto
level control stereo mode (page 29) and
Front Stage Surround Advance modes
(page 30).
BAND
PHONES
INPUT
SELECTOR
STANDBY/ON
PHASE CONTROL
AUTO SURROUND/ STREAM DIRECT STEREO/ A.L.C. ADVANCED
SURROUND STANDARD
SURROUND MASTER
VOLUME SPEAKERS CONTROL MULTI-ZONE ON/OFF
PORTABLE
TUNER EDIT ENTER
AUDIO / VIDEO MULTI - CHANNEL RECEIVER VSX-519V
TUNE TUNE + PRESET PRESET +
